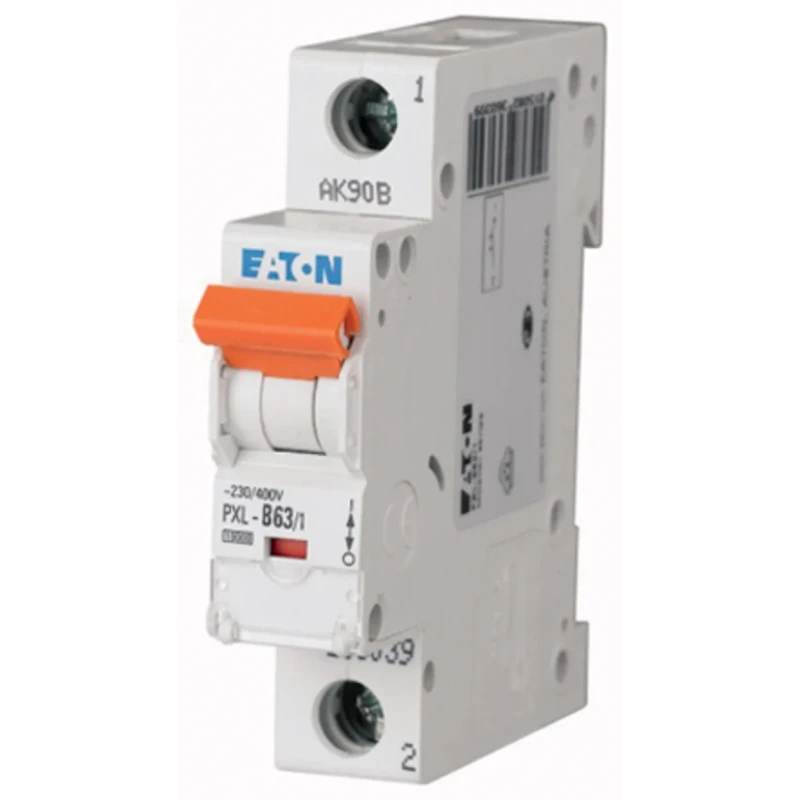

Eaton xPole PXL Miniature Circuit Breaker 1-Pole 63A Type B 400V AC 48V DC 10kA DIN Rail IP20 236039 PXL-B63/1

Name: Eaton xPole PXL Miniature Circuit Breaker 1-Pole 63A Type B 400V AC 48V DC 10kA DIN Rail IP20 236039 PXL-B63/1
Brand: Eaton
SKU: 87694
Price: 47.31 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	Germany
Range	xPole
Brand	Eaton
Height	17.5mm
Model	236039 PXL-B63/1
Depth	60mm
IP Rating	IP20
Width	80mm
Mount Type	DIN Rail
Current Rating	63A
Series	PXL
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	EN 60898, IEC
Rated AC Voltage	400V ac
Rated DC Voltage	48V dc
Tripping Characteristics	Type B
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
Type B	Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables
Type C	Instantaneous trip when the flow-through current is 5 to 10 times the rated current
Type D	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type K	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type S	Instantaneous trip when the flow-through current is 13 to 17 times the rated current
Type Z	Instantaneous trip when the flow-through current is 2 to 3 times the rated current

Key Features

Single pole miniature circuit breaker with Type B tripping characteristic for standard circuit protection.
Rated at 63A for industrial and commercial electrical distribution systems.
Supports 400V AC and 48V DC operation for flexible deployment.
High breaking capacity of 10kA for reliable overload and short circuit protection.
DIN rail mounting and modular design ensure easy installation.
Dual terminals compatible with busbar and cable connections.
IP20 rated finger-proof enclosure enhances operational safety.
Electromagnetic tripping mechanism for instant response.

Product Description

The Eaton 236039 PXL-B63/1 Miniature Circuit Breaker is a high-performance device designed for safe and effective circuit protection in industrial, commercial, and advanced residential applications. Featuring a single pole configuration and a Type B tripping characteristic, this breaker delivers standard protection against overloads and short circuits, with current ratings up to 63A and a robust breaking capacity of 10kA.

This miniature circuit breaker is engineered for versatility, supporting both 400V AC and 48V DC operation, which enables deployment across various electrical systems. Its DIN rail mounting design ensures quick installation into distribution boards, with dual terminals compatible with both busbar and cable connections for flexible setups.

The Type B tripping curve provides instantaneous trip action when the current exceeds 3 to 5 times the rated value, ideal for general circuit protection requirements. The electromagnetic tripping mechanism ensures speedy and reliable performance, minimizing risk during electrical faults.

Safety and ease of use are prioritized, with IP20 finger-proof protection, a red-green indicator for contact position status, and a color-coded toggle for intuitive operation. The modular design allows for straightforward integration and expansion within switchgear assemblies, backed by compliance with EN 60898 and IEC standards.

Compact dimensions - 17.5mm height, 80mm width, 60mm depth - support installation in space-constrained enclosures. The breaker is constructed with durable materials and features instantaneous break time for immediate disconnection during faults.

Typical applications include industrial distribution boards, advanced commercial electrical panels, machinery protection, and long cable runs requiring precise overcurrent management. The high selectivity and current limiting feature further enhance safety and reliability in demanding environments.

The Eaton xPole PXL series supports additional performance options (such as 2- and 3-pole configurations available separately). This unit is manufactured in Germany and offers top-quality engineering and reliability.

Explore other Eaton protection devices and Miniature Circuit Breakers in the EnvMart Electronics & Electricals section for comprehensive electrical solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This miniature circuit breaker has a current rating of 63A, making it suitable for various industrial and commercial electrical distribution systems.

The breaking capacity of this unit is 10kA, providing reliable protection against overloads and short circuits.

It supports operation at 400V AC and 48V DC, allowing for flexible deployment across different electrical systems.

This model features a DIN rail mounting design, which ensures easy installation into distribution boards.

The dimensions of this breaker are 17.5mm in height, 80mm in width, and 60mm in depth, making it compact for installation in space-constrained enclosures.

It utilizes an electromagnetic tripping mechanism, which provides instantaneous response during electrical faults.

The unit has an IP20 rating, which provides finger-proof protection for enhanced operational safety.

It features Type B tripping characteristics, which provide instantaneous trip action when the current exceeds 3 to 5 times the rated value.

This breaker complies with EN 60898 and IEC standards, ensuring it meets industry requirements for safety and performance.

It has dual terminals that are compatible with both busbar and cable connections, allowing for flexible setups.

This unit is manufactured in Germany, reflecting high engineering standards and reliability.

Typical applications include industrial distribution boards, commercial electrical panels, and machinery protection, particularly in environments requiring precise overcurrent management.
