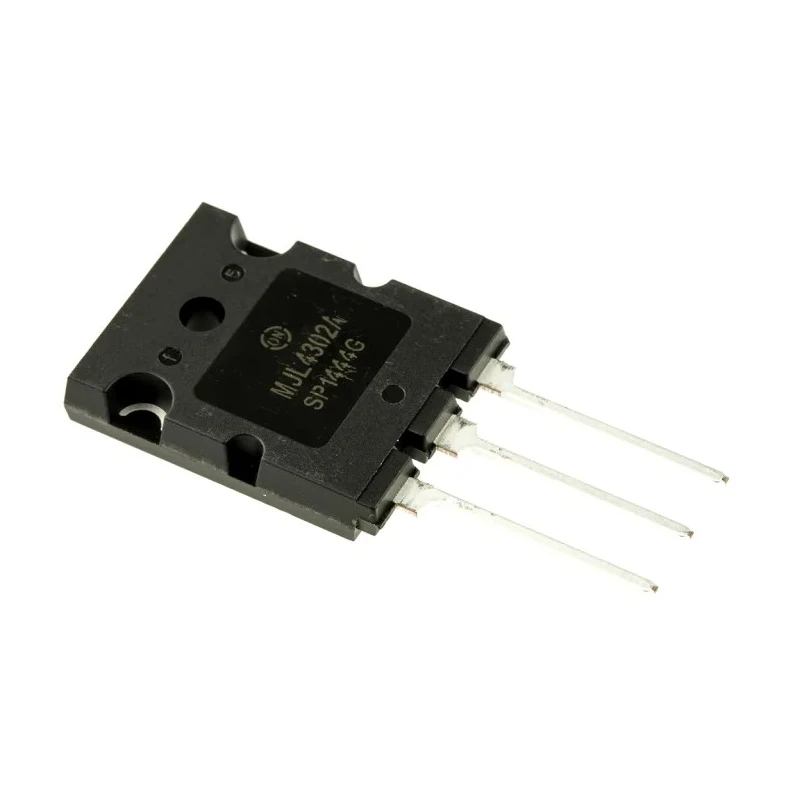

onsemi PNP Bipolar Power Transistor MJL4302AG -15A, -350V, 230W, TO-3BPL Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 37.8mm |
| Length | 20.3mm |
| Model | MJL4302AG |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-3BPL |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -350V |
| Minimum DC Current Gain hFE | 10 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 350V |
| Maximum Power Dissipation Pd | 230W |
| Maximum DC Collector Current Idc | -15A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 35MHz |
| Magnatec 2SA1302-0 PNP Bipolar Transistor, 15 A, 200 V, 3-Pin TO-264Brand | Magnatec |
Key Features
- High-performance PNP bipolar transistor suitable for industrial power applications.
- Maximum DC collector current of -15A for robust current handling.
- Rated collector-emitter voltage up to -350V for high voltage circuits.
- Maximum power dissipation of 230W supports reliable performance under load.
- TO-3BPL package provides secure through-hole mounting.
- Single transistor configuration optimized for discrete and amplifier use.
- Wide operating temperature range from -65°C to 150°C.
- Minimum DC current gain of 10 ensures stable amplification.
Product Description
The onsemi MJL4302AG is a high-performance PNP bipolar power transistor designed for industrial and commercial power electronics applications. This device features a maximum DC collector current of -15A and a collector-emitter voltage rating of -350V, providing ample capacity for high-power and high-voltage circuit requirements. Housed in a durable TO-3BPL package, it offers robust through-hole mounting for reliable integration into printed circuit boards.
With a maximum power dissipation of 230W, the MJL4302AG can operate safely at elevated power levels, making it well-suited for audio amplifiers, motor drive circuits, industrial controls, and other demanding environments. The single-transistor configuration is ideal for discrete circuit designs, and its PNP polarity allows versatility in complementary pair applications alongside NPN devices.
The transistor delivers a minimum DC current gain (hFE) of 10, supporting stable and consistent performance. It operates across a wide temperature range from -65°C to 150°C, providing the resilience needed for both laboratory and field installations. Maximum collector base voltage is 350V, while emitter base voltage is 5V, further reinforcing suitability for high-voltage power supply architectures.
Its compact dimensions (length 20.3mm, width 5.3mm, height 37.8mm) facilitate efficient PCB layout and thermal management. The device also features a maximum transition frequency of 35MHz, enabling fast switching in electronic circuits.
Applications include industrial automation, power amplifiers, energy conversion systems, laboratory equipment, and commercial electronics. The TO-3BPL mount supports machine insertion for production efficiency and minimizes mechanical stress during operation.
Visit the Bipolar Transistor category for more high-current and high-voltage switching devices from onsemi and other trusted brands.
