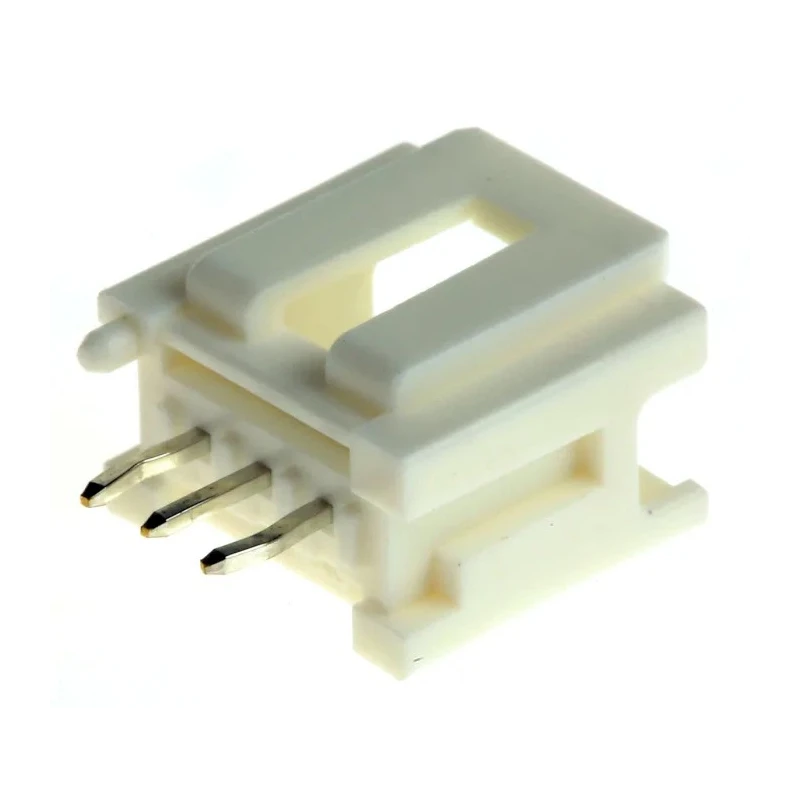

Molex MicroClasp Series PCB Header, 3 Contacts, 2 mm Pitch, Straight Through Hole, Shrouded, 55932-0310
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Designed for wire-to-board applications requiring space saving and secure mating.
- Features a compact 2.0 mm pitch for efficient PCB layout.
- Supports up to 3A current and 250V rated voltage.
- Shrouded single-row construction with polyester housing and tin-plated contacts for durability.
- Operating temperature range from -40°C to 105°C suits demanding conditions.
- Straight orientation and solder termination for reliable PCB assembly.
- Male contact gender enables compatibility with standard connectors.
- Mount type is through hole for robust mechanical and electrical connection.
Product Description
The Molex 55932-0310 MicroClasp Series PCB Header is a high-quality wire-to-board connector solution engineered for compact electronics assemblies. With a straight through hole configuration, shrouded single row, and robust polyester housing, it is ideal for applications demanding secure mating, reduced board footprint, and reliable electrical performance.
This header features a 2 mm pitch, carrying up to 3A current at 250V, and incorporates tin-plated male contacts for excellent conductivity and corrosion resistance. The shrouded structure offers terminal protection, while the unique inner positive lock delivers secure retention, latch protection, and an audible click for confident connector engagement.
Manufactured in Japan, it withstands a wide operating temperature range from -40°C to 105°C, making it suitable for industrial, consumer electronics, and commercial devices exposed to varying environments. Its solder termination and through-hole mount facilitate strong mechanical attachment and efficient assembly into PCBs.
The MicroClasp Series also provides features that simplify mating and unmating, including low insertion force terminal design and a housing lance system for additional PCB space savings. The tail pin length of 3.2 mm and mating pin length of 2 mm ensure proper alignment and reliable interconnect results.
Typical uses include PCB wire housings, electronic device manufacturing, industrial controls, and automotive electronics where compact, reliable, and high-current wire-to-board connections are required.
Space-efficient 2 mm pitch for reduced PCB footprint. Shrouded header with positive lock and robust housing for secure engagement. High-current capability and wide operating temperature range serve industrial and laboratory needs.
Polyester housing and tin-plated contacts enhance durability and anti-corrosion performance. Straight orientation and through-hole mount support fast and accurate PCB installation. Explore our PCB Header and Connector collections for additional Molex MicroClasp Series options and related categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current of up to 3A and is rated for a voltage of 250V.
It features a compact pitch size of 2 mm, which helps in reducing the PCB footprint.
This unit utilizes solder termination for reliable PCB assembly.
The operating temperature range is from -40°C to 105°C, making it suitable for various demanding environments.
The housing is made of polyester, and the contacts are tin-plated for enhanced conductivity and corrosion resistance.
This model features 3 contacts in a single-row configuration.
It employs a through hole mount type for robust mechanical and electrical connections.
It includes a shrouded structure for terminal protection and a unique inner positive lock for secure retention and confident engagement.
The tail pin length is 3.2 mm, ensuring proper alignment during assembly.
Typical uses include PCB wire housings, electronic device manufacturing, industrial controls, and automotive electronics.
The orientation of this model is straight, which facilitates easy installation on PCBs.
