Molex Pico-Clasp Series Straight Surface PCB Header, 30 Contacts, 1 mm Pitch, Dual Row, Shrouded, 50V, Nylon Body 501190-3017

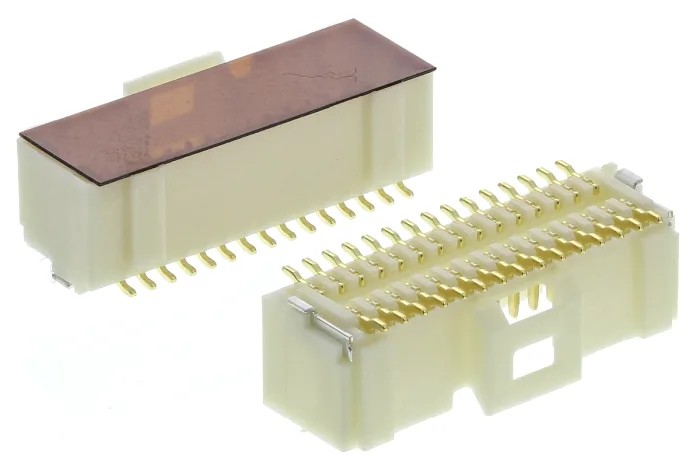

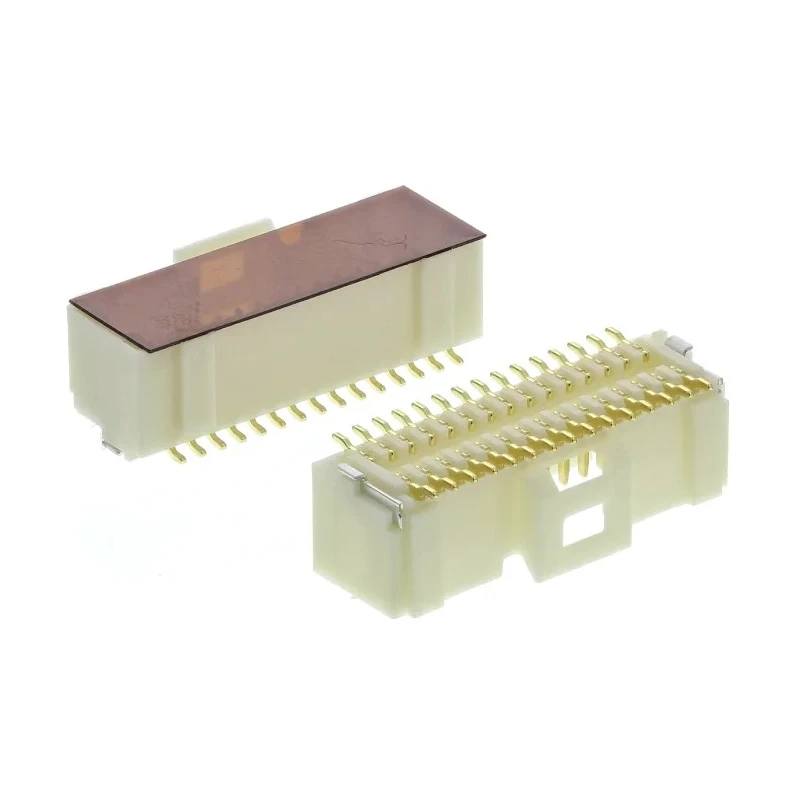

Molex’s Pico-Clasp Series, model 501190-3017, is a high-density, straight surface PCB header designed for secure wire-to-board applications in demanding electronics. Featuring 30 contacts in a dual row configuration, each with a 1 mm pitch, this connector provides robust performance for compact electronic devices such as flat panel displays, notebook PCs, and other miniaturized systems.

The header incorporates an inner positive lock mechanism, ensuring reliable mating and preventing accidental disconnection. Molded nylon housing rated UL 94V-0 offers durability and flame resistance, while gold over nickel plated phosphor bronze contacts maximize electrical conductivity and resist corrosion.

This surface mount PCB Header supports a maximum voltage of 50V and current up to 1A per contact, ensuring dependable power and signal transmission within electronic assemblies. With a shrouded design, the connector offers excellent alignment during mating, reducing misconnection risk and providing clear polarization.

Suitable for environments from - 40°C up to 105°C, the Pico-Clasp header is capable of operation across a broad temperature range, making it ideal for industrial, commercial, and consumer electronics. Mating pin length of 1 mm facilitates precise interconnection, and solder termination supports streamlined installation on surface-mounted PCBs.

Compliance with EU RoHS, Low-Halogen, REACH SVHC, and UL E29179 standards ensures reduced environmental impact and safety. Typical applications include high-density signal and power interconnects in flat panel displays, notebooks, automotive modules, and compact devices demanding secure, repeatable wire-to-board connectivity.

This product is part of Molex’s advanced Pico-Clasp family, available in single-row circuits from 2 - 15 and dual-row circuits including 20, 30, and 40, providing scalable interconnection solutions across miniature device architectures.

Reliable inner positive lock mechanism prevents accidental disengagement. UL 94V-0 nylon housing and gold-plated contacts for high durability. Shrouded, dual row form ensures stable polarization and accurate mating alignment.
