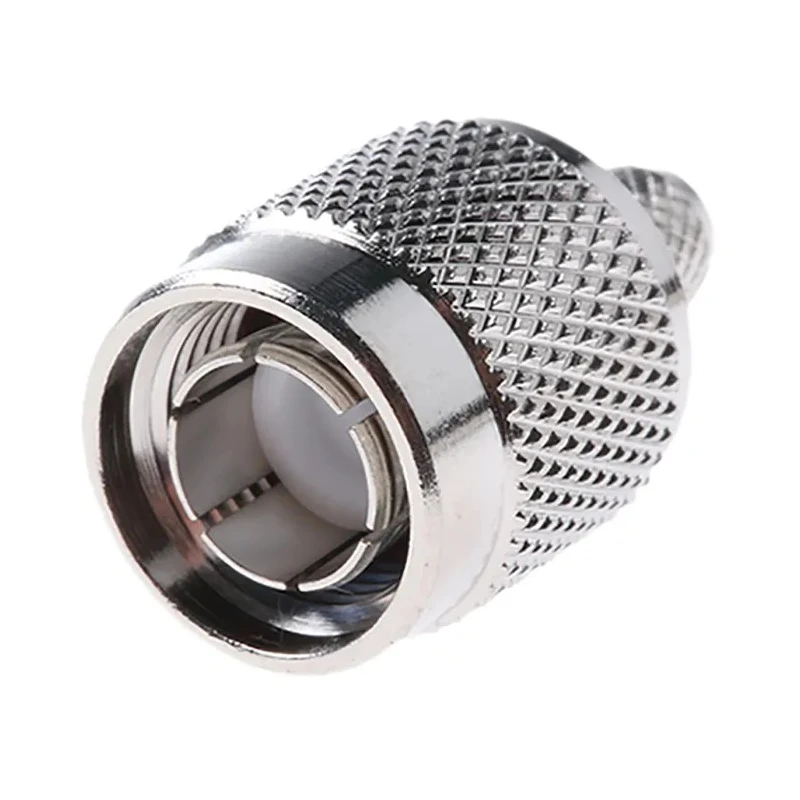

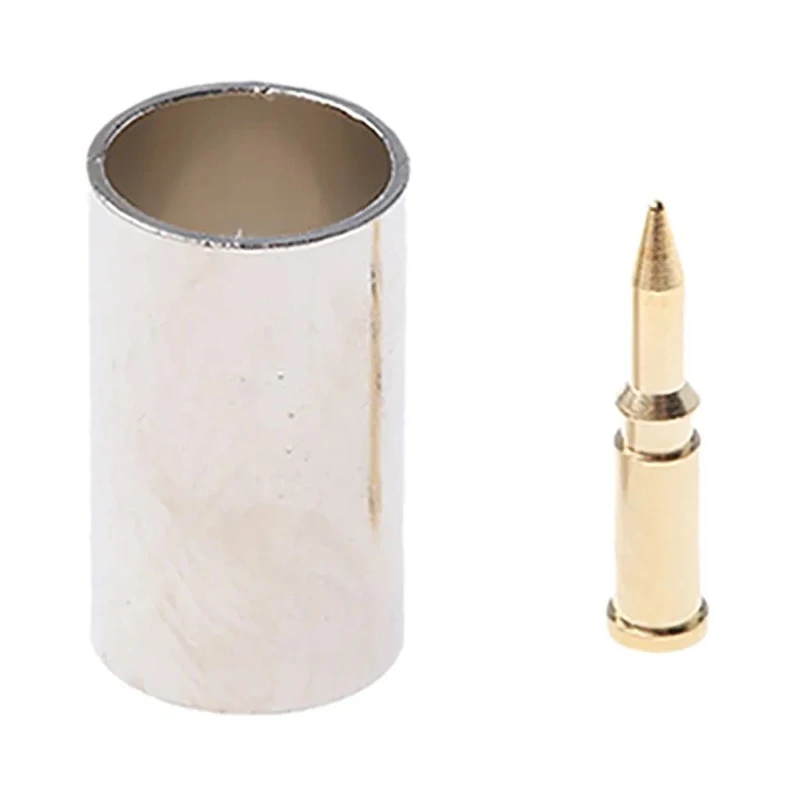

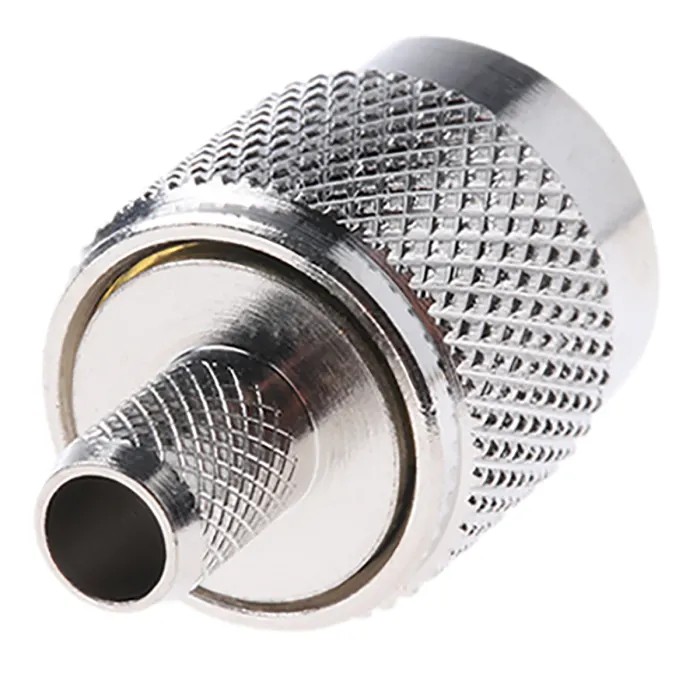

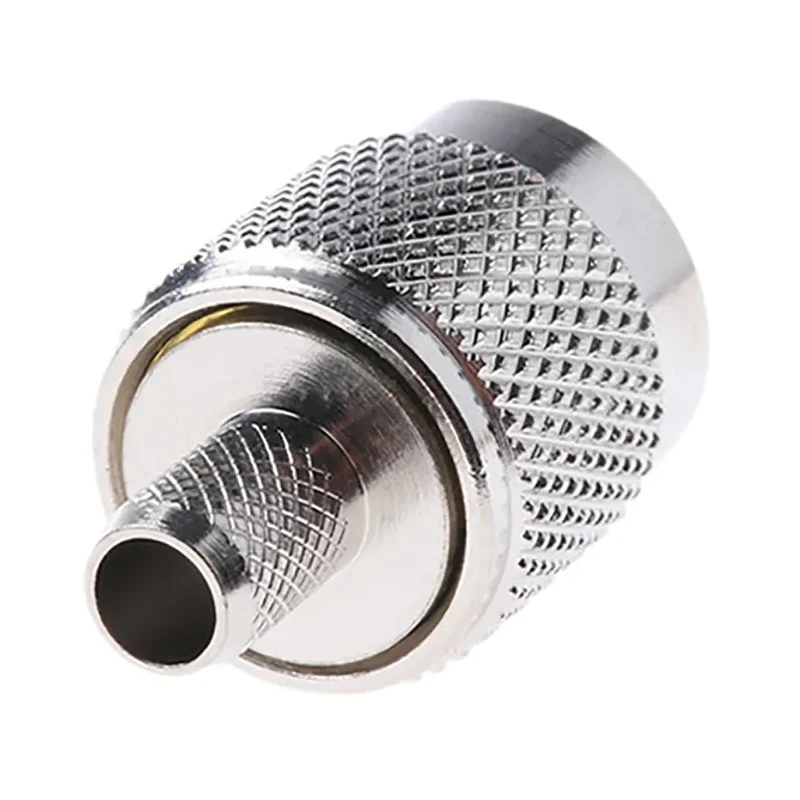

RS PRO TNC Series Coaxial Connector Cable Male TNC, 75 Ω, Straight, RG59/U, Nickel Body, Gold Plated Contact 136-566

Free Delivery in India | Lowest Global Shipping Charges

RS PRO TNC Series Coaxial Connector Cable Male TNC, 75 Ω, Straight, RG59/U, Nickel Body, Gold Plated Contact 136-566

Name: RS PRO TNC Series Coaxial Connector Cable Male TNC, 75 Ω, Straight, RG59/U, Nickel Body, Gold Plated Contact 136-566
Brand: RS PRO
SKU: 84646
Price: 17.15 USD
Availability: InStock



Category Coaxial Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Size	Standard
Brand	RS PRO
Orientation	Straight
Model	136-566
Mount Type	Cable
Operating Frequency	1GHz
Contact Material	Copper Alloy
Series	TNC
Maximum Operating Temperature	80°C
Cable Type	RG59/U
Minimum Operating Temperature	-20°C
Polarity	Normal
Impedance	75Ω
Contact Plating	Gold
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	TNC
Body Plating	Nickel
RS PRO, Plug Cable Mount, 75Ω, Crimp Termination, Straight BodyBrand	RS PRO
binder, Plug Cable Mount, 75Ω, Crimp Termination, Straight BodyBrand	Telegartner
TE Connectivity, Plug Cable Mount, 50Ω, Solder Termination, Straight BodyBrand	TE Connectivity

Key Features

Designed for precise RF signal transmission with 75 Ω impedance.
Cable mount male TNC plug with crimp termination for secure installation.
Nickel plated brass body ensures durability and corrosion resistance.
Gold plated copper alloy contacts provide reliable electrical connectivity.
Compatible with RG59/U cable types for versatile applications.
Straight orientation suitable for panel and cable mount configurations.
Operating frequency up to 1 GHz allows performance in RF environments.
Engineered for use in laboratory, broadcast, telecom, and industrial systems.

Product Description

The RS PRO 136-566 TNC Series Coaxial Connector is a high-quality cable mount male plug engineered for RF coaxial signal transmission. Featuring a 75 Ω impedance, this connector is constructed with a nickel plated brass body and gold plated copper alloy contacts, delivering both reliable electrical performance and corrosion resistance. Its crimp termination design guarantees secure and robust attachment to compatible RG59/U coaxial cables.

With a straight orientation, the connector is suitable for a variety of cable and panel mount installations, ensuring ease of integration in equipment and systems requiring precise signal transmission. Designed for operating frequencies up to 1 GHz, it performs well in demanding broadcasting, laboratory, telecom, and industrial applications, where consistent signal integrity is essential.

Durability is enhanced by the nickel plating, supporting long-term operation in environments where mechanical stress or exposure to elements might be present. The gold plated contact maximizes conductivity and reduces signal loss, supporting high-frequency signals with minimal degradation. The connector's normal polarity and standard size ensure compatibility within standard TNC connector interfaces.

The RS PRO TNC Series includes a range of cable and panel mount options, supporting a wide spectrum of RF signal distribution and measurement tasks. Safe operating parameters include a minimum temperature of -20°C and a maximum temperature of 80°C, making this part suitable for use in varied commercial, laboratory, and industrial temperature conditions.

Suitable for installation in laboratory measurement setups, broadcast transmission lines, telecom patch panels, industrial monitoring, and commercial radio frequency networks, the RS PRO TNC Series allows engineers and technicians to maintain robust, interference-resistant RF links. Its precise engineering fits maintenance, upgrade, and new system integration use cases where cable-mounted TNC connectors are required.
