Samtec ERF8 Series Vertical Surface PCB Socket 10 Contacts 2 Row 0.8mm Pitch Solder

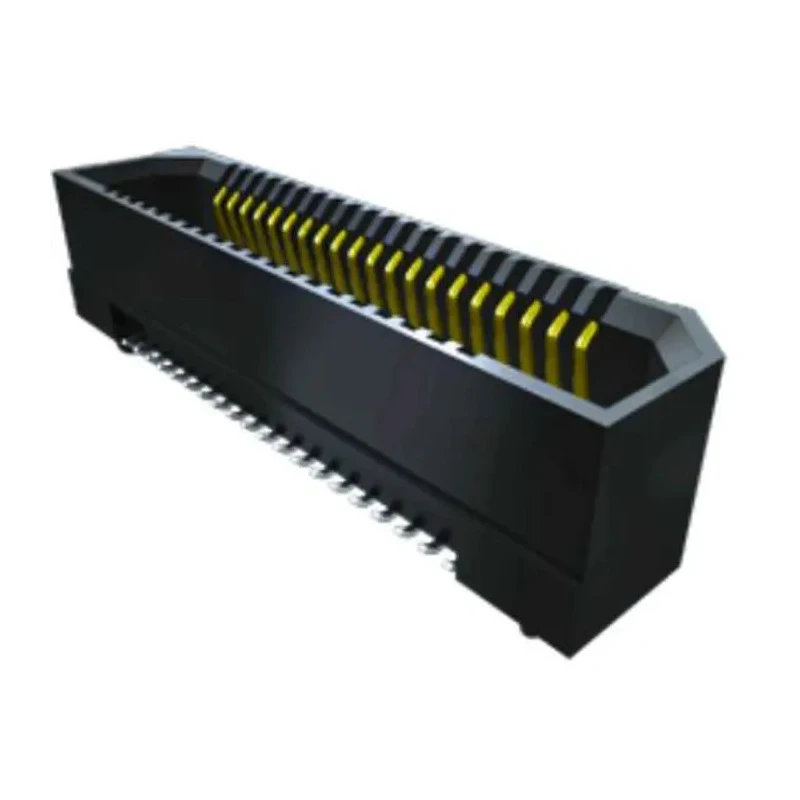

Samtec ERF8-005-05.0-S-DV-K-TR is a high-performance vertical surface-mount PCB socket designed for advanced board-to-board electronic applications, featuring a 10-contact, 2-row configuration with a 0.8 mm pitch. This socket belongs to the ERF8 series, known for robust connectivity in high-speed systems.

The socket utilizes edge rate contact technology, providing secure and reliable signal transmission up to 56 Gbps PAM4. This makes it ideal for industrial, electronics, telecom, and laboratory settings where dependable, low-loss interconnections are critical.

The vertical orientation and surface-mount design facilitate compact and space-saving PCB layouts. With its 10 contacts arranged in two rows, this connector is suitable for devices requiring dense electronic assemblies, supporting both performance and miniaturization.

The pitch of 0.8 mm allows for close placement of contacts, maximizing board real estate and enabling advanced design flexibility. Rated for 2.2A current and 318V voltage, this socket meets the requirements of demanding industrial applications, ensuring reliable operation even under high electrical loads.

Durability is ensured by the use of liquid crystal polymer for the housing and gold-plated beryllium copper alloy for the contacts. These materials provide exceptional mechanical strength and corrosion resistance, delivering prolonged service life in harsh environments.

Stacking height of 18 mm offers designers flexibility to build multilayer boards and integrate complex system architectures. The socket supports a wide operating temperature range from -55°C to 125°C, making it suitable for laboratory instruments, industrial automation, telecommunications equipment, and high-end computing devices exposed to varied thermal conditions.

Solder termination type ensures robust connection to the PCB, minimizing signal loss and providing excellent reliability for ongoing operation. The board-to-board connector system is a preferred choice for constructing reliable assemblies in manufacturing, R&D, and commercial electronic products.

Typical applications for this socket include high-speed data transfer boards, modular electronic systems, advanced test equipment, and industrial control electronics. The ERF8-005-05.0-S-DV-K-TR enables compact, high-density assembly while maintaining superior performance and mechanical integrity.
