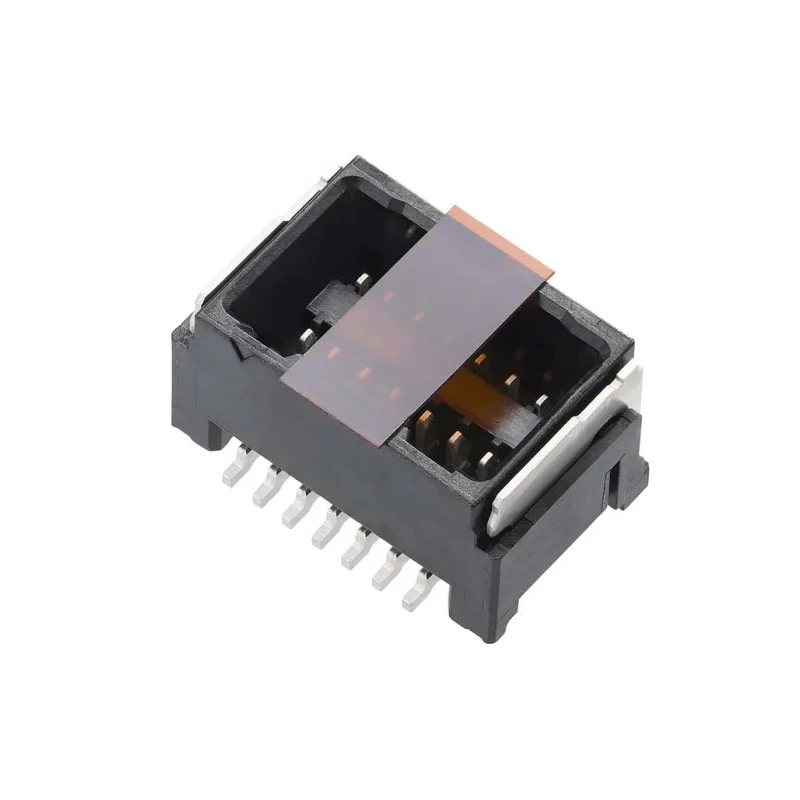

Molex Micro-Lock Plus Series Vertical Surface PCB Header, 6 Contacts, 1.25 mm Pitch, Shrouded, 2 Rows 2077600681

Molex 2077600681 Micro-Lock Plus Series Vertical Surface PCB Header is engineered for demanding electronic and electrical applications requiring reliable wire-to-board connectivity in space-constrained environments. Designed with 1.25 mm pitch and a shrouded dual-row configuration, this header accommodates 6 male contacts, ensuring secure and robust connections on PCBs.

The product's vertical surface mount format facilitates streamlined PCB assembly, while the shrouded housing, made from durable polyamide, provides enhanced protection against environmental contaminants and mechanical stress. With robust metal solder tabs and added walling, the header is specifically built to prevent immersion of the positive lock in potting material, supporting high integrity in harsh industrial and commercial settings.

Each contact is fabricated from brass and finished with Tin/Bismuth plating, maximizing conductivity and corrosion resistance over extended operating periods. The header's electrical rating allows for up to 2 A at a maximum voltage of 50 V, standard-compliant with UL E29179 benchmarks. It supports safe operation across wide ambient temperatures, ranging from -40°C up to 105°C, making it ideal for high-temperature and challenging environments in industrial automation, instrumentation, manufacturing, and advanced electronics applications.

The Micro-Lock Plus connector system ensures secure wire-to-board connections and is suited for applications requiring potting material for environmental protection, with a dual-row height of 6 mm safeguarding critical contact and latch areas. The surface mount termination type simplifies PCB installation, while the 1.25 mm row pitch supports dense component layouts. Male contact gender and all key features are specifically tailored for integration in advanced PCB designs.

Use cases include industrial control panels, laboratory equipment, PCB assemblies in commercial electronics, HVAC circuit boards, and environments where vibration or moisture protection is paramount. The Molex Micro-Lock Plus header is optimized for secure, reliable, and long-lifetime use in modern electronic manufacturing, R&D, and electrical system installations.
