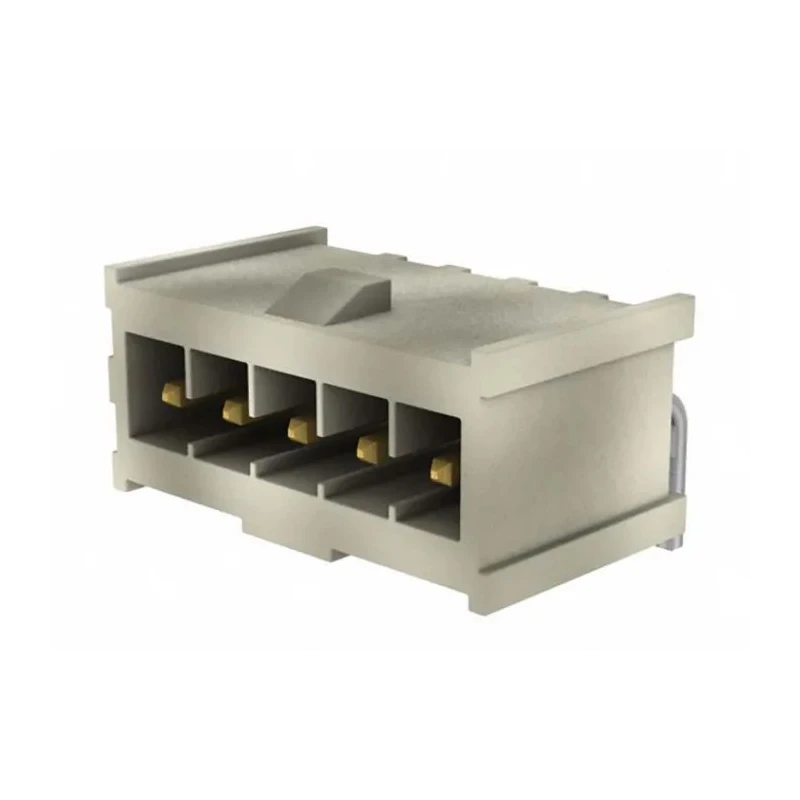

Samtec IPL1 Series Straight Through Hole PCB Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Shrouded

The Samtec IPL1-105-01-S-S-K is a high-performance PCB header from the IPL1 series, engineered for straight through-hole applications requiring wire-to-board connectivity. It features five individually shrouded male contacts, configured in a single row with a 2.54 mm pitch, ensuring precise placement and easy integration with matching connectors.

This PCB header incorporates a shrouded design for enhanced polarization, minimizing the risk of misalignment during plug-in and improving reliability in both prototyping and production environments. The housing material, liquid crystal polymer, provides robust mechanical stability and excellent resistance to aggressive soldering temperatures.

The gold-plated phosphor bronze contacts deliver optimal electric conductivity, improving long-term contact performance and corrosion resistance. Its straight orientation offers flexibility for vertical mounting on PCBs, making it ideal for applications such as industrial controls, instrumentation, communication devices, and consumer electronics.

With a rated current of 3.8A and voltage specification of up to 675V, the IPL1-105-01-S-S-K header is suited for demanding electronic circuits. The connector supports solder termination, ensuring a durable and stable connection between the PCB and external wiring harnesses.

This component operates reliably across a wide temperature range, from -55°C to 125°C, suitable for both industrial and commercial installations. Its male contact gender is compatible with standard female discrete wire connectors, facilitating straightforward integration in modular systems.

The IPL1 series discrete wire header supports both vertical and right-angle assembly options. Individually shrouded contacts help preserve signal integrity and mechanical robustness in wire-to-board assemblies. The wire-to-board connector system enables efficient power distribution and signal transfer in high-density board layouts.

Primary uses include industrial electronics, manufacturing control panels, automotive circuit boards, laboratory instrumentation, and communication devices where reliable header connection is critical. The IPL1-105-01-S-S-K meets technical standards and is deployed globally in professional electronic projects.
