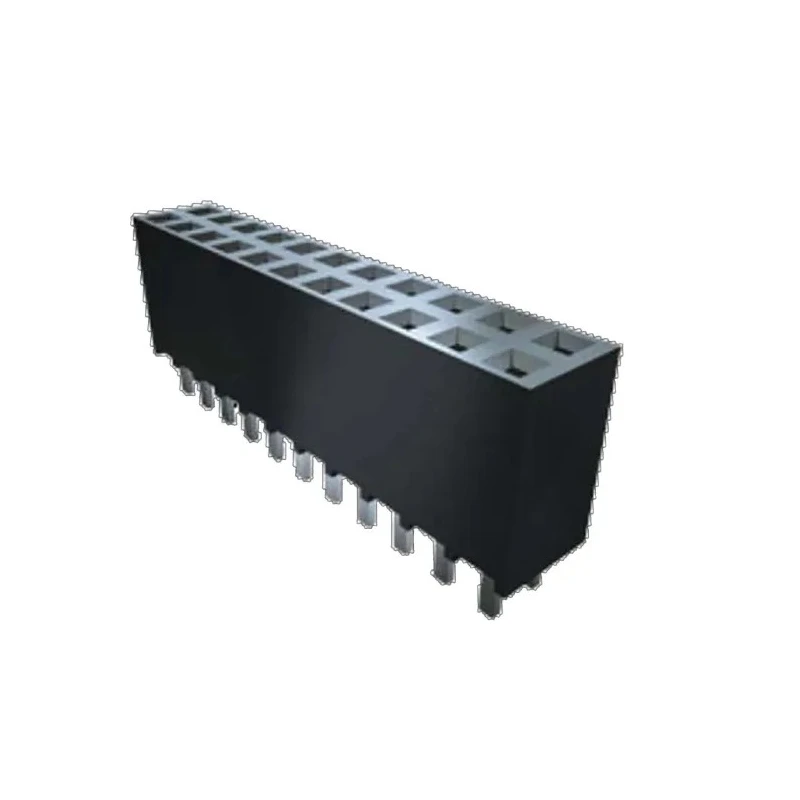

Samtec SSW Series Straight Through Hole PCB Socket, 24 Contacts, 2 Row, 2.54 mm Pitch, Surface Mount, SSW-112-22-F-D-VS

The Samtec SSW-112-22-F-D-VS PCB Socket is a high-performance, straight through-hole connector developed for reliable board-to-board connections in critical electronic systems. Designed with a surface-mount solder tail and featuring 24 contacts arranged in two parallel rows, this socket ensures consistent and secure signal transmission.

This model from the SSW Series offers a 2.54 mm pitch - the industry standard for multiple PCB connector applications - enabling straightforward integration into numerous circuit layouts and device designs. Its phosphor bronze contact material, paired with gold plating, delivers optimal conductivity and resistance to oxidation, assuring long connector life and repeated mating cycles without degradation of electrical performance. The advanced Tiger Buy™ contact system further enhances reliability in high-cycle environments.

The housing is constructed from black liquid crystal polymer (LCP), chosen for its impressive mechanical strength, chemical stability, and high-temperature resilience up to 125°C. The connector supports a voltage rating up to 655 V and can handle a current of 4.7 A per individual pin (with 2 pins powered), making it suitable even for moderate power delivery within electronic assemblies.

Utilizing a straight orientation and surface mount termination style, this socket is specifically designed for applications requiring robust soldering to the PCB and strong mechanical retention. Its through-hole mount configuration and 100 mating cycles (with specified gold plating) provide the durability needed for industrial, laboratory, and high-reliability commercial deployments.

The Samtec SSW-112-22-F-D-VS is ideal for use in a variety of sectors, including industrial controls, instrumentation, test and measurement, medical devices, and communications equipment, where precision, reliability, and electrical integrity are paramount. The low-profile design and secure contact engagement also support dense board layouts and fast assembly in manufacturing workflows.

Key specifications include 24 contacts, 2 rows, 2.54 mm pitch, phosphor bronze contacts with gold plating, liquid crystal polymer housing, surface mount/through-hole design, current rating of 4.7 A, voltage rating up to 655 V, and an operating temperature range from -55°C to 125°C. With its robust construction and versatile application support, this PCB socket stands out among professional connector solutions.
