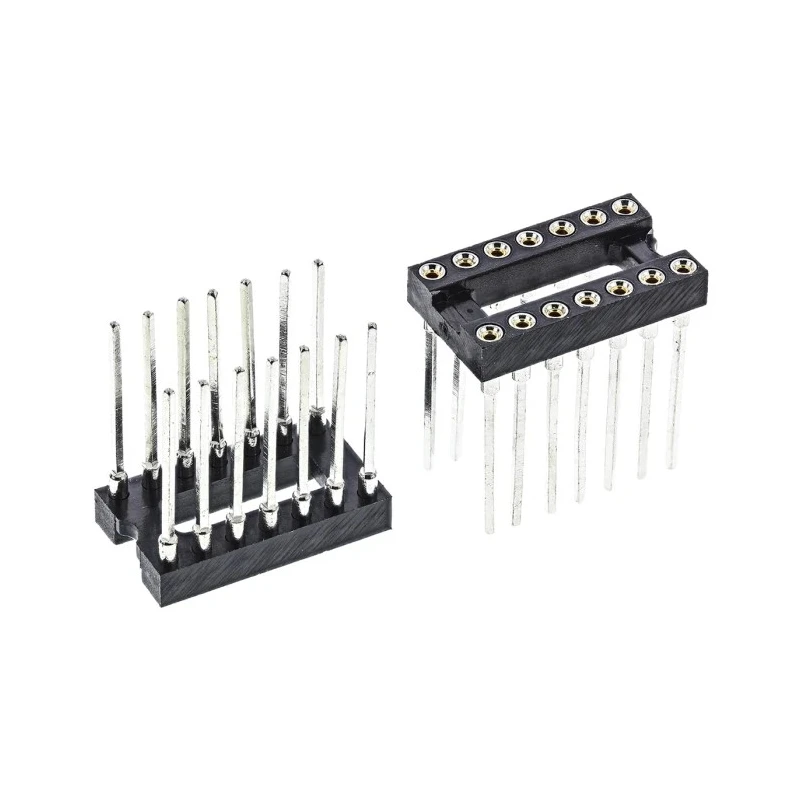

Winslow W30600 Series 2.54 mm Pitch Vertical 14 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30614T3RC

The Winslow W30600 Series W30614T3RC DIL socket is a high-quality connector designed for mounting dual in-line package (DIP) integrated circuits in printed circuit boards (PCBs). This socket provides a convenient and reliable solution for IC assembly, offering reworkability and safeguarding fragile components during soldering and repair cycles.

Engineered with a 2.54 mm pitch, the W30614T3RC is suitable for standard DIP packages and features 14 precisely machined turned pins that ensure stable, low-resistance connections with minimal insertion force. The vertical orientation and through-hole design make it ideal for both prototyping and production PCB assemblies.

High-performance beryllium copper alloy contact material is used in combination with gold and tin plating to deliver excellent electrical conductivity and long-term corrosion resistance. The wire wrap termination style offers robust connectivity for industrial, laboratory, and commercial PCB manufacturing lines where reinsertions or reliable mechanical retention are essential.

The socket body is constructed from UL94 V-0 rated fibreglass reinforced polybutylene terephthalate, providing mechanical integrity, high insulation resistance, and resistance to temperature extremes up to 150°C. The open frame structure promotes efficient heat dissipation, facilitates visual inspections, and supports easy cleaning in service environments.

With a compact profile measuring 17.7 mm in length, 10.14 mm in width, and 3 mm in depth, this socket is designed to fit a wide range of standard PCB footprints. The maximum 5A current rating increases its suitability under higher load or power-handling scenarios in electronic systems. Its knurled barrel pins prevent pin rotation during the wrapping process, further improving assembly reliability.

The Winslow W30614T3RC DIL socket finds application in industrial electronic control units, microcontroller boards, test and measurement equipment, laboratory instrumentation, embedded systems, and any other environment requiring durable, high-integrity IC mounting solutions. It is particularly suitable for use in automated assembly lines and environments where repeat removals or reliable operation under thermal stress are important.

2.54 mm pitch, vertical 14-way configuration suited for DIP integrated circuits. Beryllium copper alloy with gold and tin contact plating ensures high performance in demanding conditions. Wire wrap termination allows strong and versatile PCB connections.

UL 94 V-0 rated fibreglass reinforced PBT housing ensures product safety and durability. Maximum 5A current, 150°C maximum temperature rating for robust industrial use. Turned pin, open frame design for efficient heat management and ease of maintenance.
