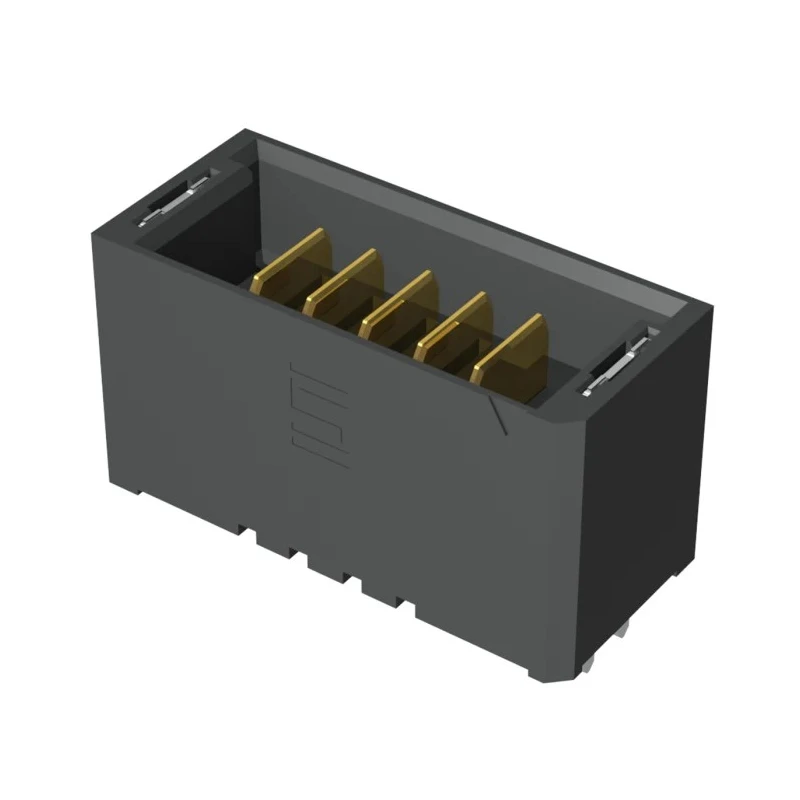

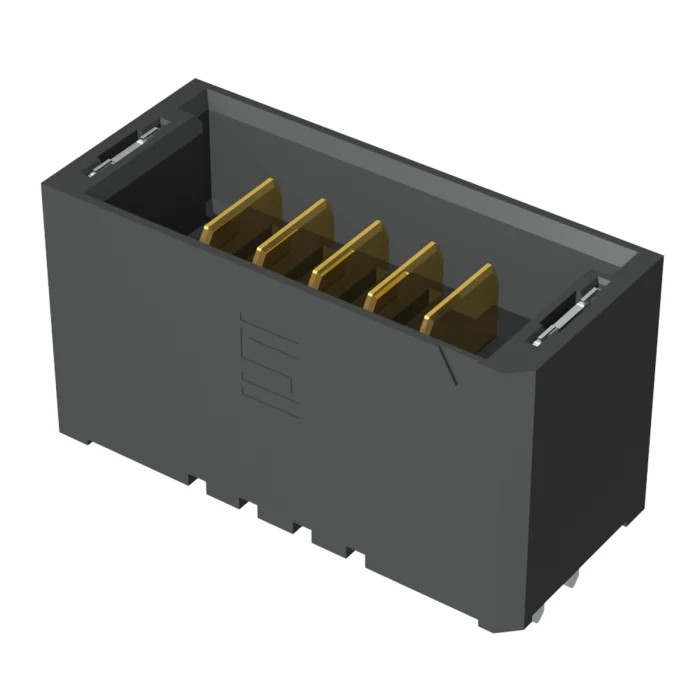

Samtec UMPT Series Straight Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-05-06.5-G-VT-SM-WT-K

Free Delivery in India | Lowest Global Shipping Charges

Samtec UMPT Series Straight Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-05-06.5-G-VT-SM-WT-K

Name: Samtec UMPT Series Straight Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-05-06.5-G-VT-SM-WT-K
Brand: Samtec
SKU: 82823
Price: 10.85 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	650V
Brand	Samtec
Orientation	Straight
Current	15.4A
Model	UMPT-05-06.5-G-VT-SM-WT-K
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	UMPT
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2mm
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Designed for secure board-to-board power and signal connections.
Features five gold-plated contacts on a 2 mm pitch for robust conductivity.
Shrouded and straight-through hole style with solder termination.
Liquid crystal polymer housing provides high durability and thermal resistance.
Handles up to 650V and 15.4A maximum current per contact.
Supports operating temperatures from -55°C to 105°C.
Compatible with Samtec high-speed connector systems and stack heights from 5 mm to 16 mm.
Single row configuration and male contact gender for compact PCB layouts.

Product Description

Samtec UMPT-05-06.5-G-VT-SM-WT-K is a precision-engineered Straight Through Hole PCB Header with five contacts, a 2 mm pitch, and a single row, specifically designed for advanced board-to-board interconnections in electronic assemblies. This header is shrouded for enhanced protection and alignment, ensuring reliable mating and minimal risk of misconnection.

The product utilizes a liquid crystal polymer housing combined with gold-plated copper alloy contacts, delivering excellent durability, corrosion resistance, and stable electrical performance under demanding conditions. Its through-hole board mounting and solder termination provide secure mechanical retention, making it suitable for environments requiring robust connections.

Supporting maximum ratings of 650V and 15.4A, this header is ideal for both power and signal applications, with the ability to handle high currents across its five power blades. The straight and shrouded orientation simplifies integration into PCB layouts and offers improved mechanical protection during insertion and removal cycles, as well as in field applications.

Operating reliably across a broad temperature range from -55°C to 105°C, the UMPT-05-06.5-G-VT-SM-WT-K is built for demanding industrial, laboratory, and commercial electronics. Its male contact gender and single-row configuration facilitate compact, space-efficient PCB designs.

This connector is compatible with Samtec's Edge Rate, AcceleRate HD, Q Strip, Q2, Q Rate, LP Array, SEARAY, Razor Beam LP, Tiger Eye, Blade & Beam, and other high-speed systems, making it versatile for digital, analogue, and mixed signal boards. The system supports stack heights from 5 mm to 16 mm for flexible board spacing in assemblies.

Typical use cases include industrial electronics, instrumentation, data acquisition systems, power modules, laboratory equipment, and advanced commercial PCB designs where high current and reliable signal integrity are required.
