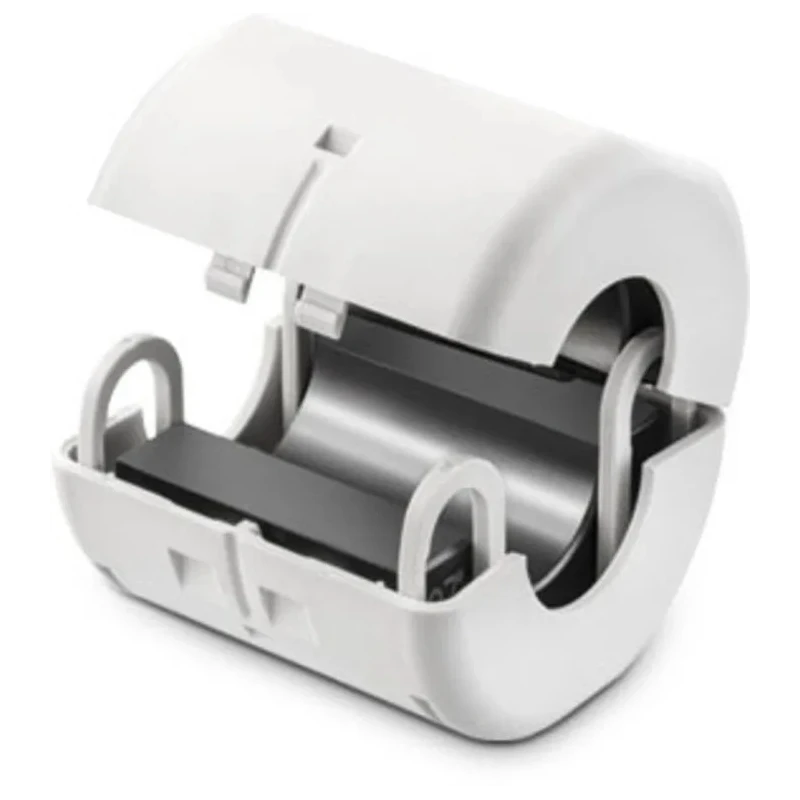

Wurth Elektronik Openable Snap Ferrite Sleeve 10.5mm Aperture 41.6x33.5x28.4mm Manganese Zinc, STAR-TEC 74272221
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Material | Manganese Zinc |
| Operating Temperature | - 25 °C to +105 °C |
| Model | 74272221 |
| Series | STAR-TEC |
| Aperture diameter | 10.5mm |
| Sub Type | Snap Ferrite |
| Core Material | MnZn |
| External Width | 33.5mm |
| External Depth | 41.6mm |
| External Height | 28.4mm |
| Standards/Approvals | RoHS, REACH |
| Impedance at 100 MHz | 140Ω |
| Impedance at 25 MHz | 35Ω |
| Number of Apertures | 1 |
| Wurth Elektronik Openable, Diameter 10.5 mm Ferrite Sleeve, Apertures | 1 Key 41.6 mm 28.4 mm 33.5 mm |
Key Features
- Openable ferrite sleeve features a STAR-TEC key locking system for added security.
- 10.5mm aperture fits a wide range of cable diameters for flexible installation.
- Constructed from manganese zinc ferrite for superior EMI suppression.
- Delivers 35 Ohm impedance at 25 MHz and 140 Ohm at 100 MHz.
- Functions efficiently for EMI suppression from 300 kHz to 30 MHz.
- External size is 41.6mm x 33.5mm x 28.4mm for tight installation spaces.
- Meets RoHS and REACH compliance requirements.
- Reusable and suitable for measuring, testing, or maintenance applications.
Product Description
The Wurth Elektronik 74272221 is an openable snap ferrite sleeve engineered for the suppression of electromagnetic interference (EMI) in cable and wire assemblies. Featuring a patented STAR-TEC key locking system, this sleeve securely mounts to cables and allows for easy installation and removal, making it especially suitable for environments where cables are tested or routinely accessed.
The 10.5mm aperture diameter is compatible with a wide variety of cable types, offering flexible utility for engineers and technicians. The manganese zinc (MnZn) ferrite material provides excellent noise attenuation properties, with an impedance of 35 Ohm at 25 MHz and 140 Ohm at 100 MHz. This performance makes it particularly effective for suppressing unwanted signals in the frequency range of 300 kHz to 30 MHz, which is common in test and measurement, lighting, and general industrial applications.
The external sleeve dimensions are 41.6 mm in depth, 33.5 mm in width, and 28.4 mm in height, enabling installation even within constrained spaces. The openable, reusable design enables easy servicing of cables, repeated adaptation and re-use for both permanent and temporary set-ups, and is ideal for troubleshooting or temporary EMI reduction during experiments and diagnostics.
Compliant with RoHS and REACH standards, the 74272221 ferrite sleeve assures the user of environmentally responsible material use. Its robust core and internal security locking prevent accidental removal or tampering, ensuring ongoing EMI protection. Additional features include cable clamping protection and a non-gapped ferrite core for consistent impedance characteristics.
This ferrite sleeve is commonly used in industrial control panels and electronics, power distribution equipment, laboratory test benches, lighting systems (including suppression of electronic ballasts), and any application where EMI compliance is critical. Its reliable design makes it an excellent choice for designers, test engineers, installers, and maintenance technicians seeking repeatable and assured EMI filtering on-site or in permanent installations.
Explore more industrial EMI filtering, Cable Sleeves, and high-performance ferrite solutions from Wurth Elektronik and other leading brands within the EnvMart electronics and cable accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite sleeve has an impedance of 35 Ohm at 25 MHz and 140 Ohm at 100 MHz, making it effective for EMI suppression across various frequencies.
The aperture diameter of this ferrite sleeve is 10.5 mm, allowing compatibility with a variety of cable sizes.
It is constructed from manganese zinc (MnZn) ferrite, which provides excellent electromagnetic interference suppression properties.
The external dimensions are 41.6 mm in depth, 33.5 mm in width, and 28.4 mm in height, suitable for tight installation spaces.
The operating temperature range for this ferrite sleeve is from -25 °C to +105 °C, accommodating various environmental conditions.
This model meets RoHS and REACH compliance requirements, ensuring environmentally responsible material use.
The STAR-TEC key locking system provides secure mounting to cables, allowing for easy installation and removal, which is beneficial in environments where cables are frequently accessed.
It is commonly used in industrial control panels, electronics, power distribution equipment, and laboratory test benches, where EMI compliance is critical.
Yes, the openable design allows for reuse, making it suitable for both permanent and temporary setups, as well as for troubleshooting during diagnostics.
The non-gapped ferrite core ensures consistent impedance characteristics, which is crucial for effective EMI filtering across its operational range.
This ferrite sleeve features one aperture, designed to accommodate a variety of cable types.
