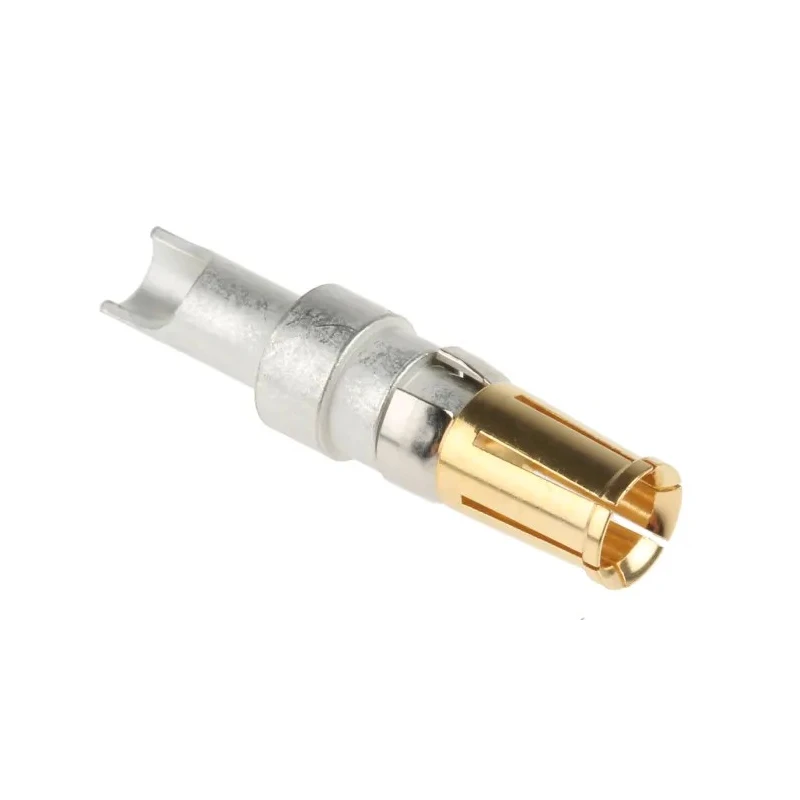

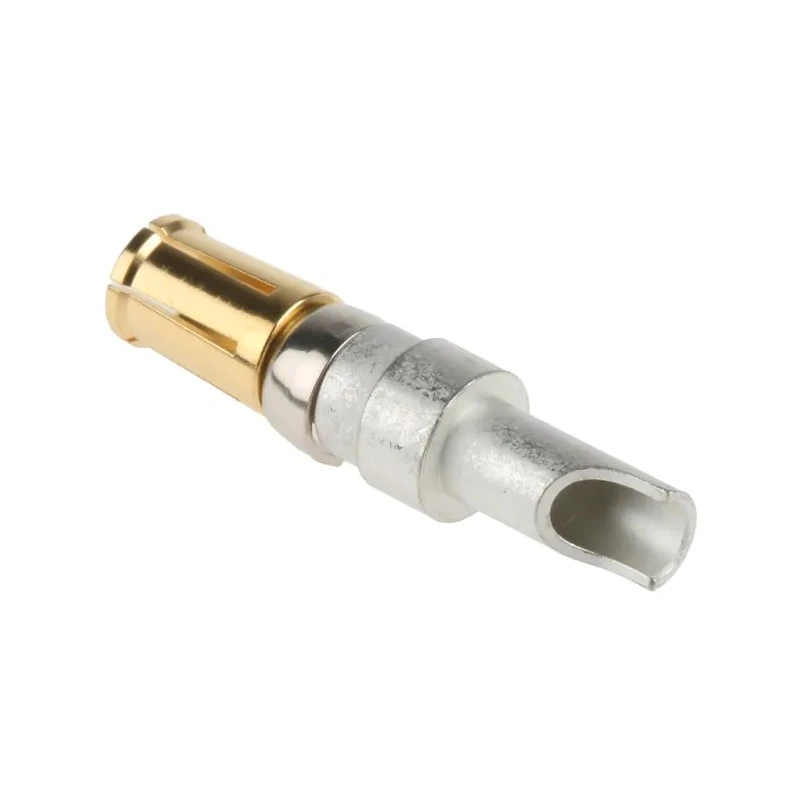

HARTING D-Sub Mixed Series Female Solder D-Sub Connector Power Contact Gold Power 12 AWG 09691817421
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Current | 20A |
| Length | 23mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | D-Sub Mixed |
| Termination Type | Solder |
| Contact Type | Power |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 12AWG |
| Maximum Contact Resistance | 1mΩ |
Key Features
- This connector features a solder termination type for reliable electrical connections.
- It utilizes copper alloy contacts plated with gold to provide corrosion resistance.
- Designed for a current rating of 20A to handle medium power demands.
- Compatible with wire sizes from 14 AWG to 12 AWG (2.5 to 4 mm²).
- Measures 23mm in length for easy integration into machinery and systems.
- Intended for female gender connections in D-Sub mixed series connectors.
- Meets DIN 41652 T1 standards for high power D-Sub connectors.
- Offers a maximum contact resistance of 1 milliohm ensuring efficiency and signal integrity.
Product Description
HARTING 09691817421 is a female solder D-Sub connector power contact designed for cable applications requiring reliable power connections. It is part of the D-Sub Mixed Series and features gold-plated copper alloy contacts to provide superior conductivity and corrosion resistance.
This connector is suitable for medium power applications with a current rating of 20A and supports wiring sizes ranging from 14 AWG to 12 AWG (2.5 mm² to 4 mm²). The 23mm length facilitates easy installation in cable harnesses and electronic assemblies.
Manufactured according to DIN 41652 T1 standards, these connectors deliver high performance in industrial, electronics, and machinery applications where robust and dependable power contacts are required.
This connector features a solder termination type for secure and durable connections. The gold plating on copper alloy contacts ensures excellent electrical conductivity and resistance to oxidation. Designed to minimize contact resistance with a maximum of 1 milliohm for efficient power transfer.
Supports 12 AWG wires allowing integration with heavier gauge cables for power supply. Female gender design suitable for mating with corresponding male connectors in hybrid D-sub assemblies. Its compact 23mm length allows fitting in tight spaces within electronic equipment.
Ideal for industrial electronics, power connector assemblies, machinery wiring, and custom cable harnesses. Facilitates improved production efficiency by being packaged ready for insertion into machinery.
This product is new and made in India, offering quality and reliability expected from HARTING power connectors. It is well suited for power and connector solutions in manufacturing, automation, and industrial control systems.
Explore the extensive range of HARTING Connectors and related components on EnvMart to meet diverse electronic and electrical connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector has a current rating of 20A, making it suitable for medium power applications.
It is compatible with wire sizes ranging from 14 AWG to 12 AWG, or 2.5 mm² to 4 mm².
The connector measures 23mm in length, facilitating easy integration into machinery and systems.
This connector features a solder termination type, ensuring reliable electrical connections.
The contacts are made of copper alloy and are plated with gold for enhanced conductivity and corrosion resistance.
The maximum contact resistance is 1 milliohm, which helps ensure efficient power transfer and signal integrity.
This connector is designed for female connections, suitable for mating with corresponding male connectors in D-Sub assemblies.
It meets DIN 41652 T1 standards for high power D-Sub connectors, ensuring compliance with industry specifications.
This product is manufactured in India, ensuring quality and reliability expected from HARTING connectors.
It is suitable for industrial electronics, power connector assemblies, machinery wiring, and custom cable harnesses.
This connector features a power contact type, designed specifically for power applications.
This connector is part of the D-Sub Mixed Series, which includes various configurations for different applications.
