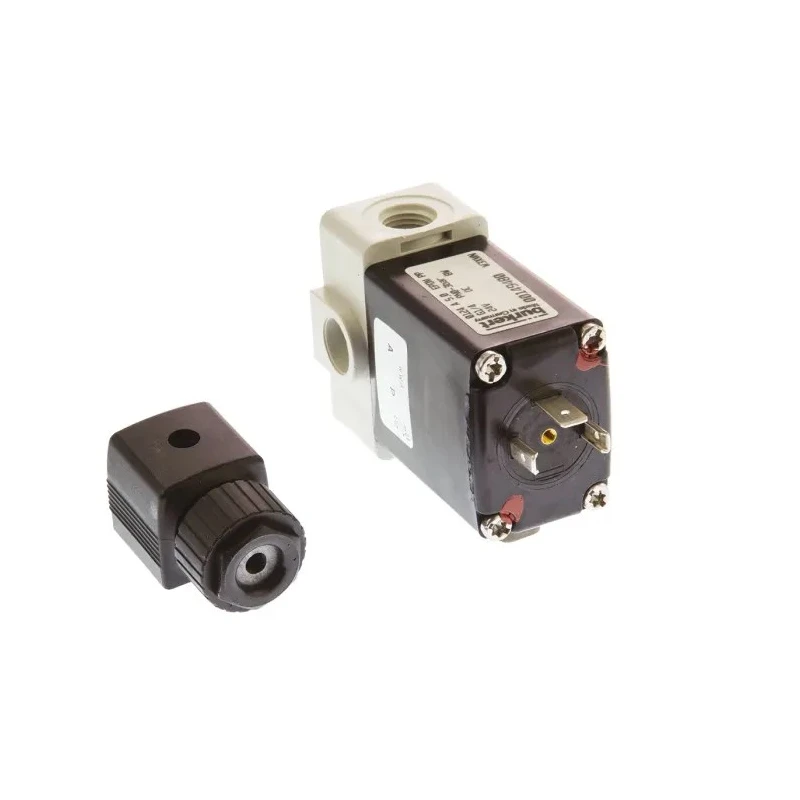

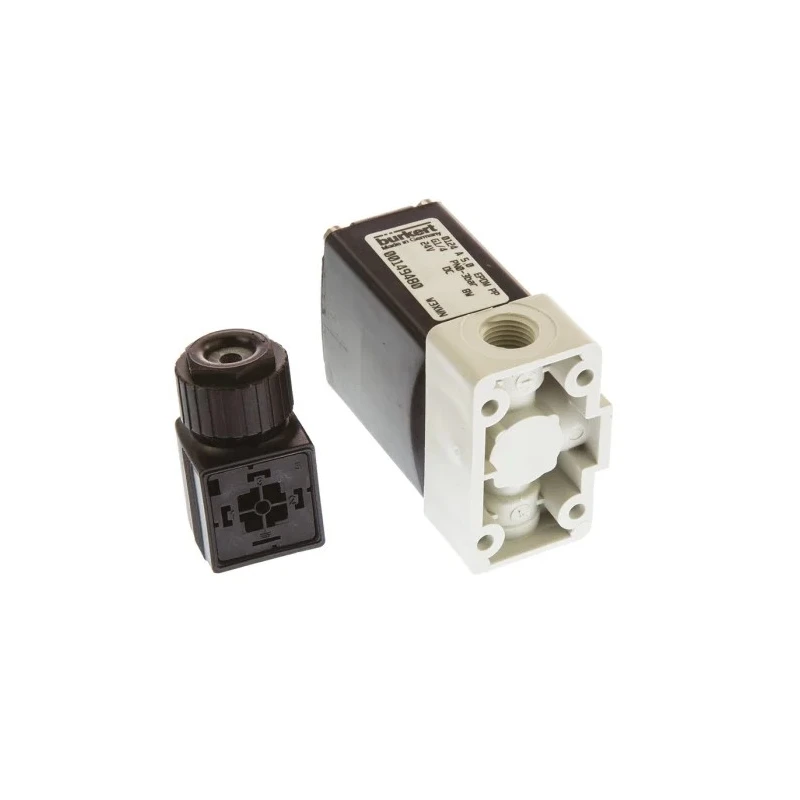

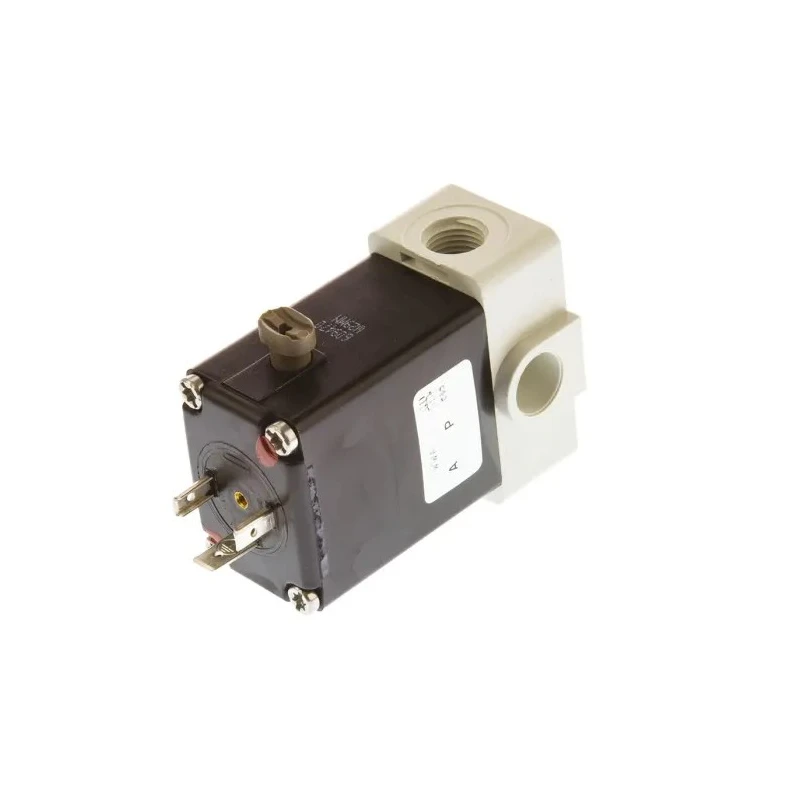

Burkert Solenoid Valve 24V DC, 2 Port, NC, Polypropylene, 1/4 in G, 6.35 mm, 3 Bar, Series 0124 061321
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Polypropylene |
| Maximum Operating Pressure | 3 bar |
| Outlet Connection Type | Threaded |
| Model | 061321 |
| Series | 0124 |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 5mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | 1/4 in G |
| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Outlet Port Size | 6.35 mm |
| Inlet Port Gender | Female |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.4m³/h |
| SOL VAL 2/2 AG 24VDC 1/8Brand | Burkert |
| IP65 | IP65 |
Key Features
- Operates at 24V DC for reliable solenoid actuation.
- 2 port design allows controlled fluid flow, with normally closed valve position.
- Polypropylene body resistant to aggressive media, acids, and alkaline agents.
- Threaded 1/4 inch G inlet and 6.35 mm outlet connection for easy installation.
- Maximum working pressure of 3 bar supports a wide range of industrial environments.
- Fast opening and closing time of 20ms enhances process efficiency.
- Direct-acting solenoid with separating diaphragm and manual override feature.
- Vibration-proof block screwed coil system provides operational safety.
Product Description
Burkert 061321 Solenoid Valve is a high-performance industrial valve engineered for demanding applications involving aggressive and corrosive media. Featuring a direct-acting solenoid mechanism, this valve offers rapid response to electrical signals and is powered by a 24V DC supply, ensuring precise control over fluid flow.
The valve comes in a 2-port configuration, with a normally closed (NC) position. This allows the valve to shut off fluid flow when de-energized, making it ideal for safety-critical process control in chemical plants, water treatment facilities, and laboratory environments. Its polypropylene body is specifically selected for superior resistance to alkalis, acids (medium concentrations), and alkaline washing or bleaching agents. The separating diaphragm and pivoted armature design with manual override further increases operational flexibility.
Connection is made simple and robust with a 1/4 inch G threaded female inlet and a 6.35 mm outlet port, both thread-compatible for secure integration into piping systems. The fast actuation times - 20ms for both opening and closing - permit responsive automation suitable for batch processing or precision dispensing tasks. The valve supports a maximum working pressure of 3 bar and is rated IP65 for environmental protection, making it suitable for dusty or wet industrial sites.
Additional technical benefits include a flow factor (Kv) of 0.4 m³/h, intermittent 40% duty cycle in 30 minutes, and vibration-resistant block screwed coil system for dependable operation. The valve's design enables zero head pressure capability, allowing operation even in gravity-fed systems.
Its wide operating temperature range (from -40°C up to 55°C) and 8W DC power consumption optimize the valve for heavy-duty service in chemical dosing, analytical instrumentation, and utility management. The 3-pin DIN electrical connector is rotatable in 90° increments for flexible wiring.
Common industrial, laboratory, and process automation use cases include alkali and acid handling, water treatment, chemical dosing, washing and bleaching systems, and any fluid flow control that demands resilience to corrosive or aggressive media and quick shutoff with electrically actuated reliability.
Explore more Burkert valves and industrial automation solutions in the Solenoid Valves category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 3 bar, making it suitable for various industrial applications.
This solenoid valve features a polypropylene body, which is resistant to aggressive media, acids, and alkaline agents.
It operates at a supply voltage of 24V DC, ensuring reliable solenoid actuation.
The valve is designed as a normally closed (NC) type, which means it shuts off fluid flow when de-energized.
The inlet connection is 1/4 inch G (female) and the outlet connection is 6.35 mm, allowing for easy integration into piping systems.
This model has a fast opening and closing time of 20 milliseconds, enhancing process efficiency.
The flow factor (Kv) of this solenoid valve is 0.4 m³/h, indicating its capacity for fluid flow.
It can operate within a temperature range from -40°C to 55°C, making it suitable for various environments.
Yes, it is rated IP65, providing protection against dust and water, suitable for industrial environments.
It features a 3-pin DIN electrical connector that is rotatable in 90° increments for flexible wiring configurations.
This solenoid valve is suitable for applications such as alkali and acid handling, water treatment, and chemical dosing.
The country of origin for this valve is Germany, reflecting its engineering standards.
