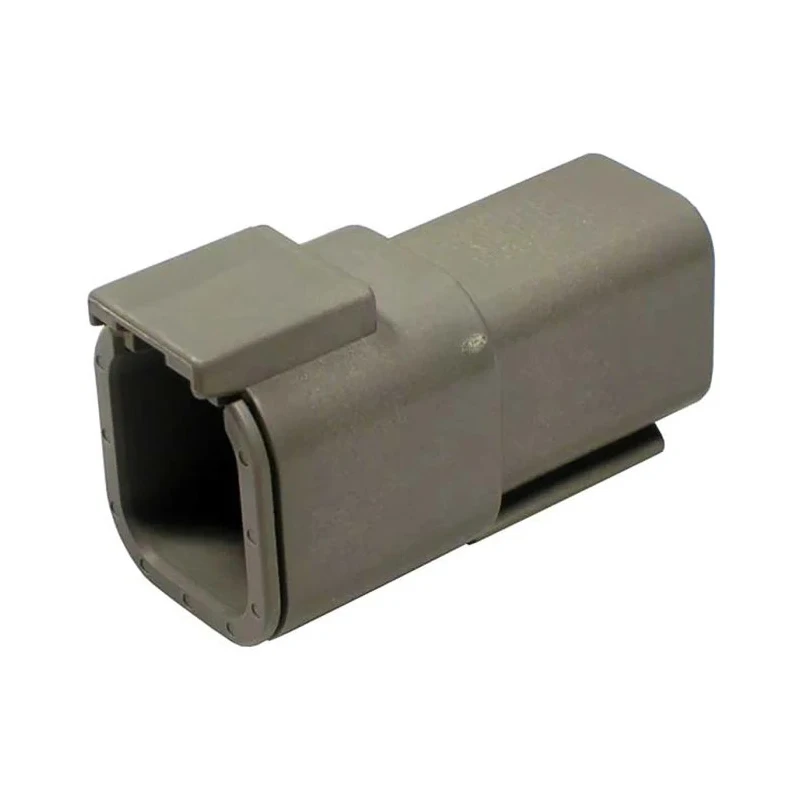

Deutsch DTM Automotive Connector Female, Grey, 6 Way Crimp Termination, IP68, Polyamide, DTM04-6P
Specifications
| Country of Origin | Mexico |
|---|---|
| Diameter | 3.05mm |
| Brand | Deutsch |
| Colour | Grey |
| Current | 7.5A |
| Height | 23.8mm |
| Model | DTM04-6P |
| Depth | 43.69mm |
| IP Rating | IP68 |
| Width | 19.2mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DTM |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle Housing |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Number of Contacts | 6 |
Key Features
- Suitable for automotive applications requiring robust and waterproof connections.
- Features 6 contacts for multi-circuit integration.
- Female connector with crimp termination for secure wiring.
- IP68 rating provides protection against dust and immersion in water.
- Constructed from high-quality polyamide for durability.
- Operates between -55°C and 125°C, suitable for wide temperature ranges.
- Rated for continuous 7.5A current per contact.
Product Description
The Deutsch DTM04-6P is a 6-way female automotive connector, engineered for demanding vehicle electrical systems and environments. This connector utilizes a grey polyamide housing to ensure reliability and resistance to mechanical stress. It features secure crimp termination, making it ideal for professional installations and repairs in automotive, marine, agricultural, and industrial applications.
Designed to withstand harsh conditions, the DTM04-6P connector offers an IP68 ingress protection rating, securing connections against dust and prolonged water immersion. With its robust build and integrated latch mechanism, it maintains optimal performance over extended use, even under vibration or exposure to contaminants.
The connector accommodates six electrical contacts, allowing for multi-circuit integration and simplified wiring harness construction. Each contact supports a continuous current of up to 7.5A. The housing material of polyamide provides both insulation and resistance to environmental factors.
Its compact dimensions - 19.2 mm width, 23.8 mm height, and 43.69 mm depth - support space-saving designs in vehicles and electrical assemblies. Operating temperature spans from -55°C to 125°C, enabling reliable function in cold climates and engine compartments alike.
Typical uses include automotive wiring harnesses, commercial and agricultural vehicle connectors, motorsport equipment, and applications where permanent, waterproof connections are required.
The Deutsch DTM series connectors are widely recognized for their reliability, easy assembly via crimp contacts, and compatibility with a range of cable diameters (minimum diameter 3.05 mm). This product meets EU ELV and EU RoHS standards, supporting environmentally friendly and compliant designs.
Browse more high-performance Deutsch automotive connectors in the Automotive Connector category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact of the Deutsch DTM04-6P connector is rated for a continuous current of up to 7.5A.
The connector has an IP68 rating, providing protection against dust and immersion in water.
It operates effectively between -55°C and 125°C, making it suitable for various environmental conditions.
The housing is constructed from polyamide, which ensures durability and resistance to environmental factors.
This connector features six contacts, allowing for multi-circuit integration.
The dimensions are 19.2 mm in width, 23.8 mm in height, and 43.69 mm in depth.
It utilizes crimp termination for secure wiring connections.
Yes, it is designed for demanding vehicle electrical systems and is suitable for automotive wiring harnesses.
It meets EU ELV and EU RoHS standards, ensuring environmental compliance.
The connector accommodates a minimum cable diameter of 3.05 mm.
Typical applications include automotive, marine, agricultural, and industrial environments where waterproof connections are required.
The connector is manufactured in Mexico.
