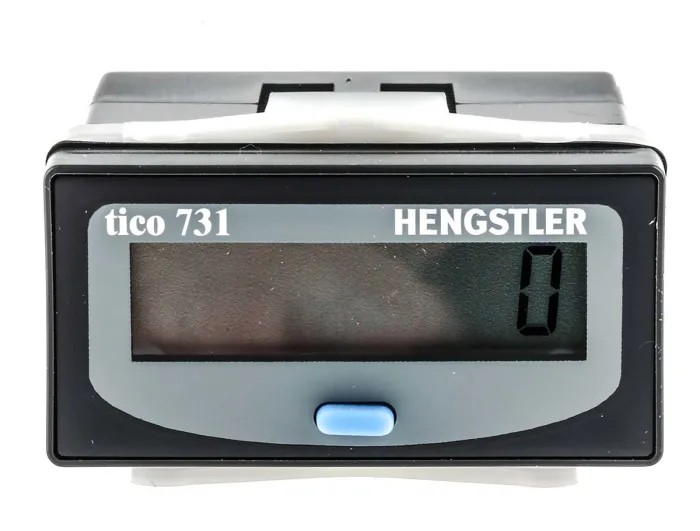

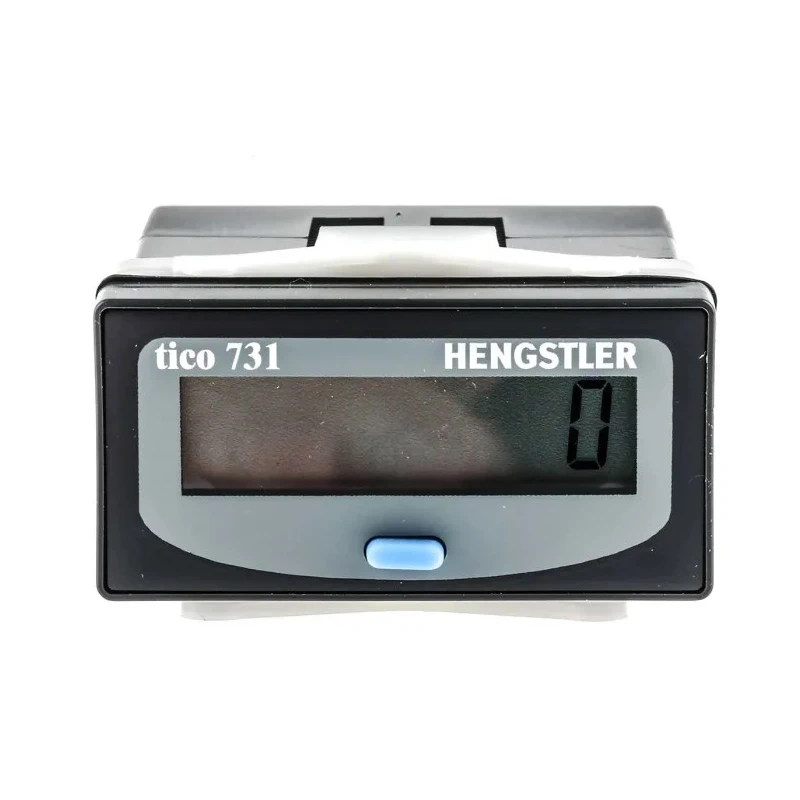

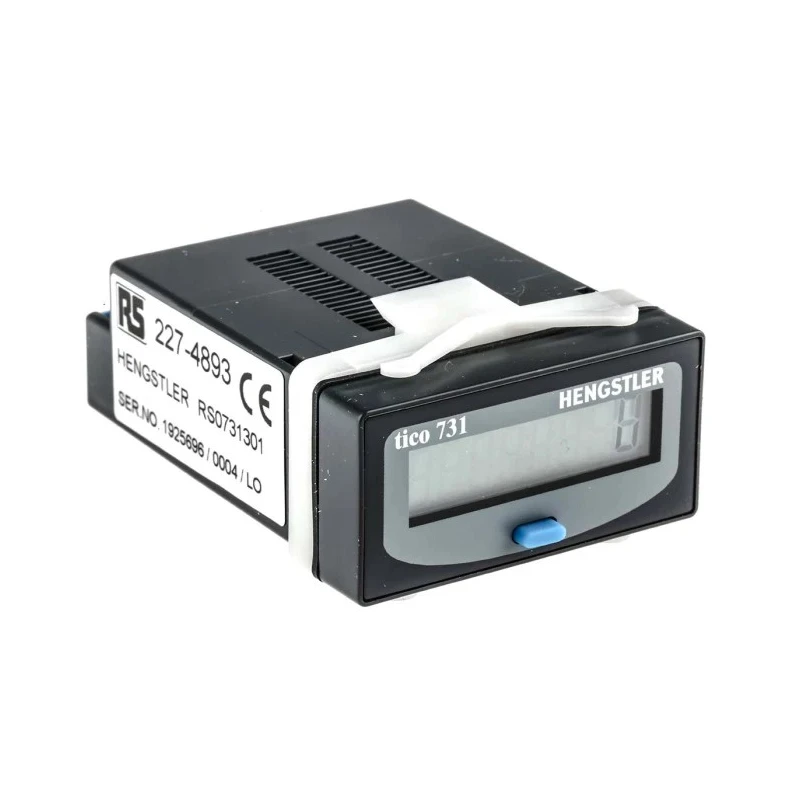

Hengstler TICO 731 Panel Mount Digital Counter 8 Digit LCD Display 20 Hz 250V ac/dc 0 731 301

Hengstler 0 731 301 Panel Mount Digital Counter is an 8-digit impulse counter with an LCD display designed for industrial and manufacturing applications. It operates at a maximum count frequency of 20 Hz and supports a supply voltage up to 250V ac/dc, suitable for various control and monitoring systems. The counter offers manual reset via a front button, which can also be disabled by a bridge wire for security.

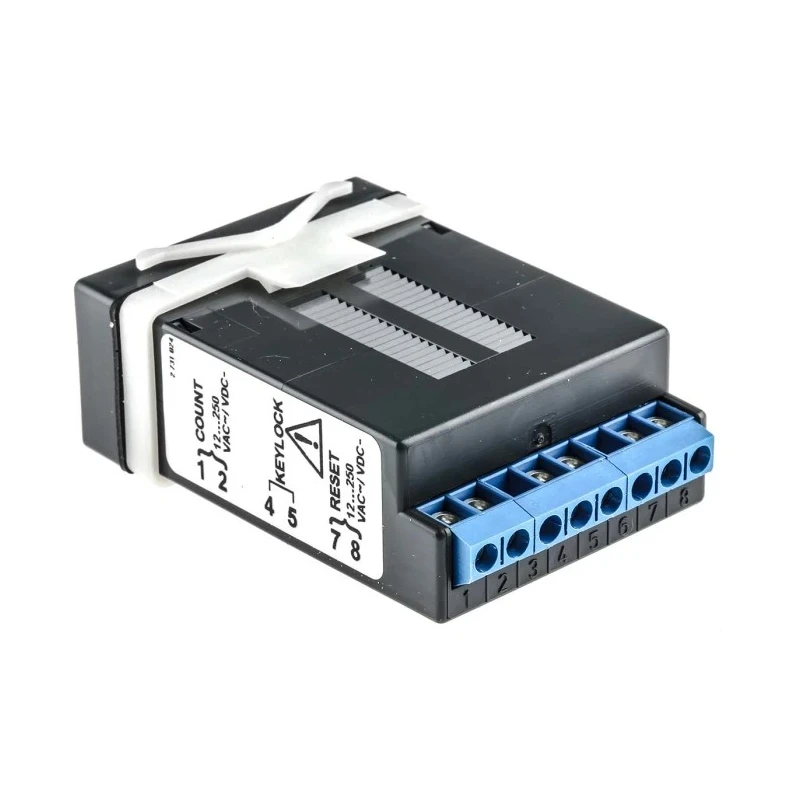

The device features a screw terminal connection providing easy and secure wiring in panel applications. The digits are 7 mm high, enhancing visibility under diverse lighting conditions. With compact front dimensions of 48 mm by 24 mm and a depth of 32 mm, the counter fits seamlessly into panels without consuming excessive space.

Operating temperature ranges from -10°C to 50°C, making the TICO 731 counter reliable under typical industrial environmental conditions. It uses an internal lithium battery as its power source, ensuring sustained operation without external power dependency.

Its flexible count input allows for selection between negative or positive edge triggering, accommodating different signal types and speeds for counting pulses. The manual reset method enables straightforward control over the count status, with the option to disable reset functionality if required.

This digital counter is ideal for industrial counting applications in manufacturing assembly lines, control systems, and monitoring processes requiring reliable and accurate pulse counting. It conforms to IP54 rating standards and follows IEC safety standards EN 61010-1 and EN 50178, ensuring safe operation in industrial environments.

The counter operates in impulse count mode with manual reset capability. Its display digits have a height of 7 mm for clear readability. The device has a depth of 32 mm and is designed for panel mounting. Operating temperature ranges from -10°C to 50°C, suitable for industrial environments.

It uses a screw terminal connection for secure wiring. The counter is powered by an internal lithium battery ensuring reliable performance. Front dimensions measure 48 mm by 24 mm, making it compact for panel installation.

It provides flexible count input configuration with support for positive or negative edge triggering. The device is suitable for applications in industrial counting, control, and monitoring systems. Explore more digital counters in the Electronics Components category at EnvMart to find devices suited to your specific industrial counting needs.
