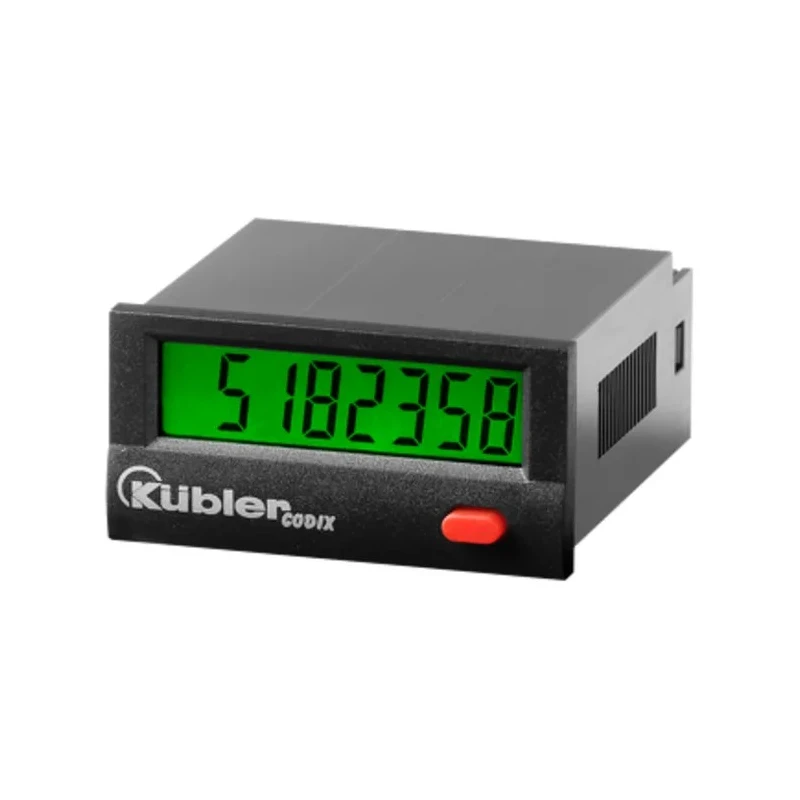

Kubler CODIX 133 8 Digit LCD Panel Mount Electronic Counter 6 kHz 30V dc 6.133.012.851

Kubler 6.133.012.851 CODIX 133 series electronic counter is a high-quality panel mount device designed for industrial counting tasks requiring accuracy and reliability. It features an 8 digit LCD display with an 8mm digit height, which ensures very good readability even in challenging environments. This impulse counter operates at a maximum count frequency of 6 kHz and uses a 30V dc maximum supply voltage.

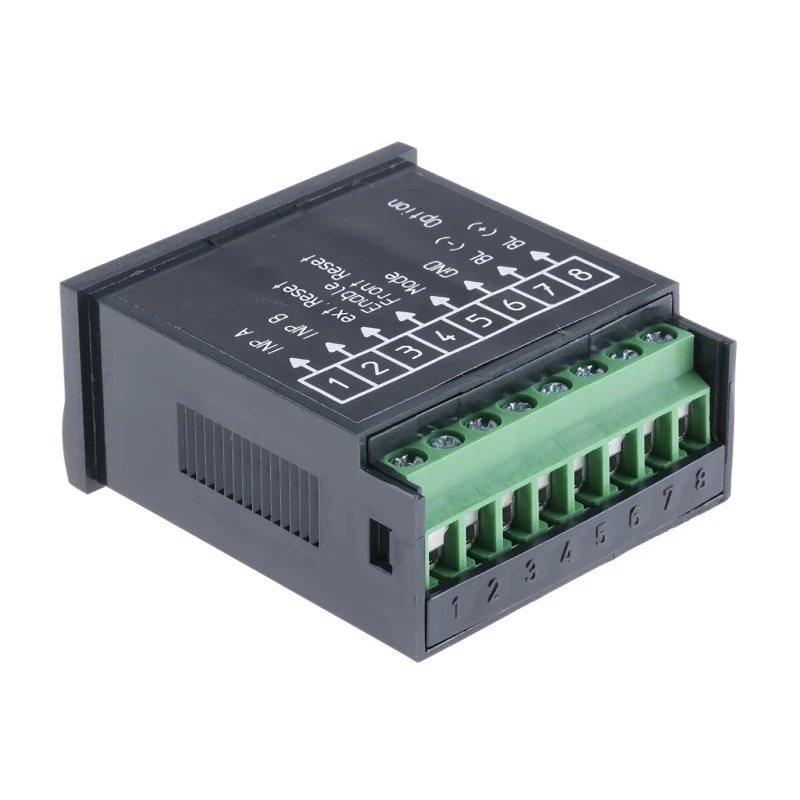

Designed for versatility, the counter supports bi-directional counting and both slow and fast counting inputs, making it suitable for various mechanical and electronic pulse sources. The connection is secured via screw terminals, facilitating easy and safe wiring. The counter panel cut-out measures 22.2mm x 45mm, fitting standard panel mount sizes, and the included bezels enable quick and secure mounting.

Operating temperature ranges from -10°C to 55°C, with an overall operating range stated as -10°C to +60°C, enabling use in diverse industrial environments. The unit has an IP65 rating, providing protection against dust and water jets, which enhances durability and reduces maintenance requirements.

Weighing only 50 grams, the compact device is manufactured in Germany and aligns with the high-quality standards expected in industrial and manufacturing sectors. Its no-programming-required design lowers installation and setup time, suitable for rapid deployment in production lines, water treatment plants, HVAC systems, and laboratory equipment.

Typical applications include counting rotations, parts, events, or pulses in automated machinery, process monitoring, and testing instruments where precise measurement and durability are essential.

Features an 8 digit LCD with 8mm digit height for excellent readability. Panel mount design with screw terminals for secure and easy connection. Supports bi-directional impulse counting with a maximum frequency of 6 kHz.

Operates with a maximum supply voltage of 30V dc. Operating temperature range from -10°C to 55°C with IP65 protection. Compact dimensions with panel cut-out size 22.2mm x 45mm. Includes mounting bezels for screw installation.

Lightweight design at 50g suitable for industrial electronics usage. Explore our extensive range of industrial electronic components at EnvMart to find more high-performance counters and measuring instruments suitable for your applications.
