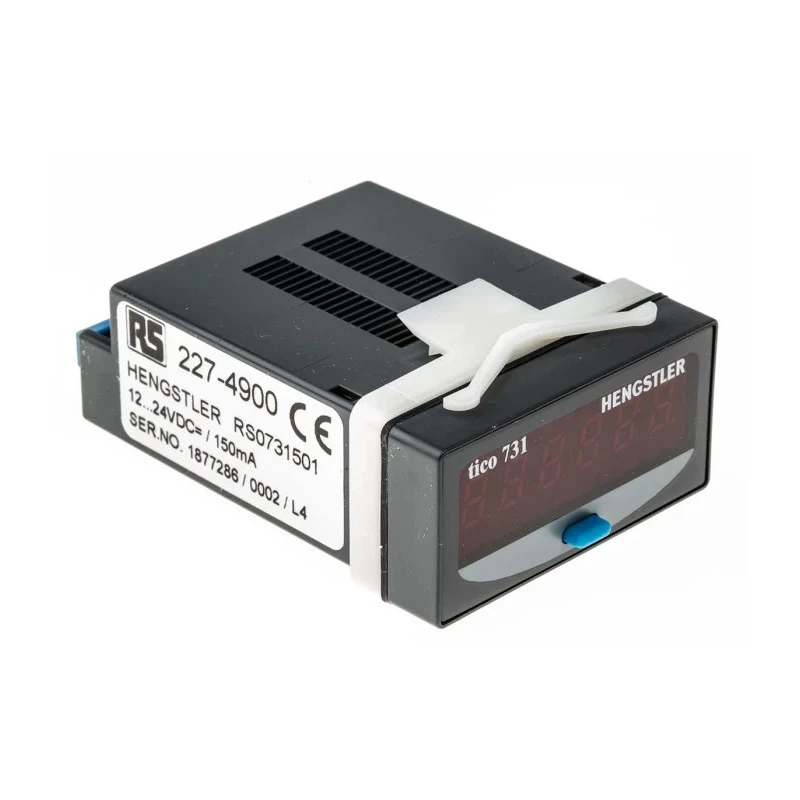

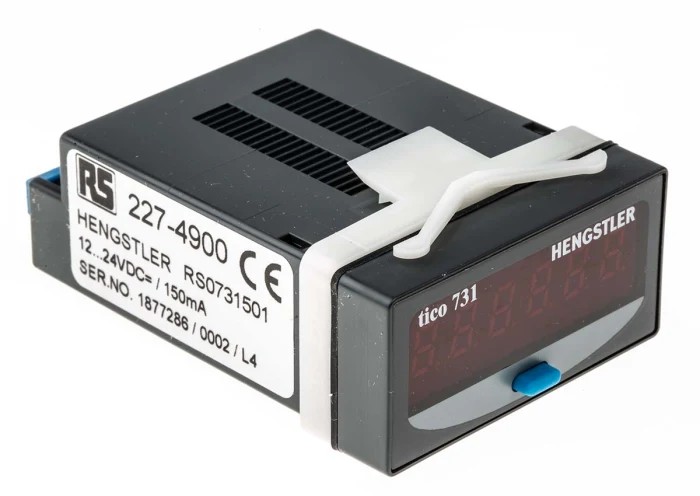

Hengstler Panel Mount Digital Counter, 6 Digit LED Display, 7.5 kHz Max Count Frequency, 24V DC Supply, Model 0 731 501

Hengstler 0 731 501 panel mount digital counter is a reliable electronic counting device featuring a 6-digit LED display and a maximum count frequency of 7.5 kHz. Designed for precision counting in industrial and manufacturing applications, it operates at a supply voltage of 24V DC and offers an impulse count mode with counting direction set to up.

The counter supports both automatic and manual reset methods, allowing flexible control via a front reset button or an external signal input. The front reset button can be disabled through a bridge wire, enhancing security by preventing accidental resets.

Equipped with transistor output for preset signals and a control input to temporarily lock the count input (gate), this counter is ideal for use in control and monitoring systems that require high reliability and accurate count maintenance.

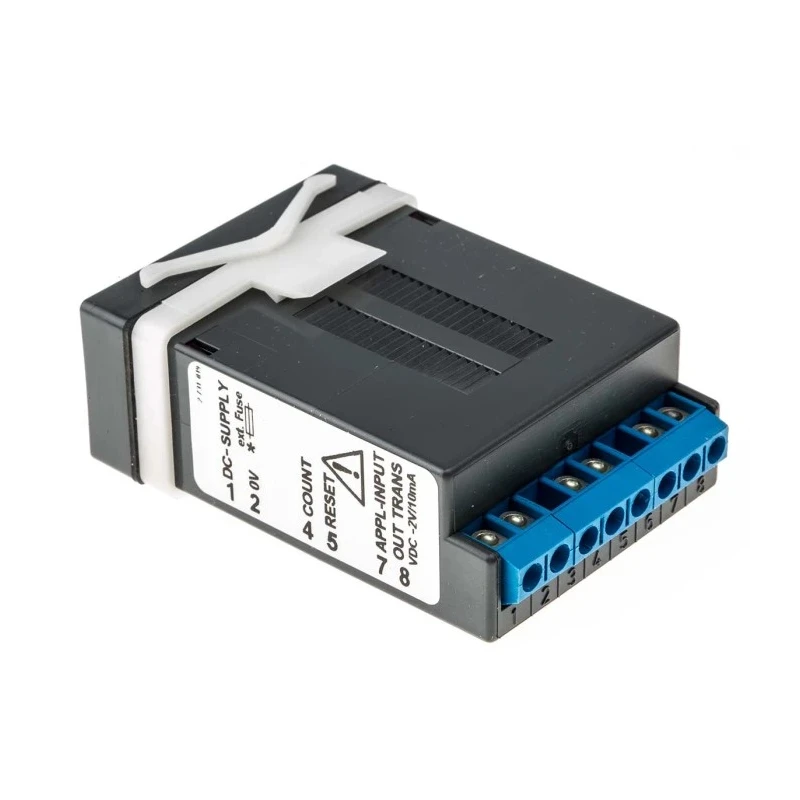

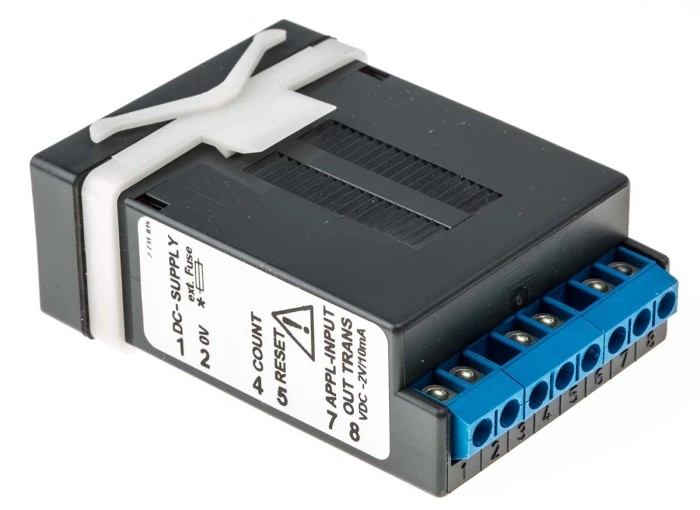

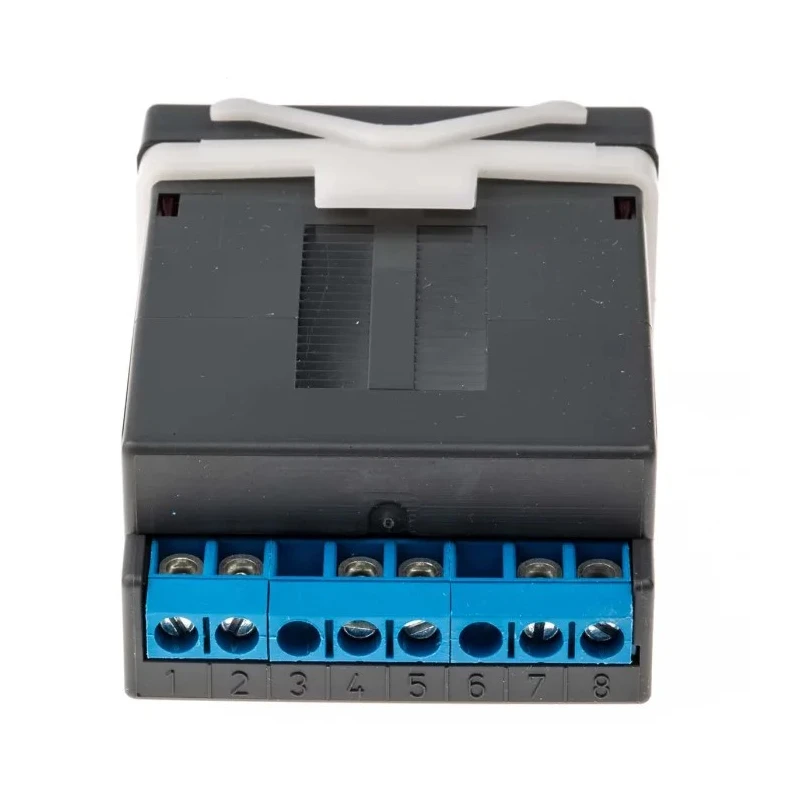

The device's panel mount construction with screw terminal connection ensures easy installation and secure wiring. Its compact dimensions, measuring 48 mm by 24 mm in front panel area with 32 mm depth, make it suitable for integration into various control panels and electronic assemblies.

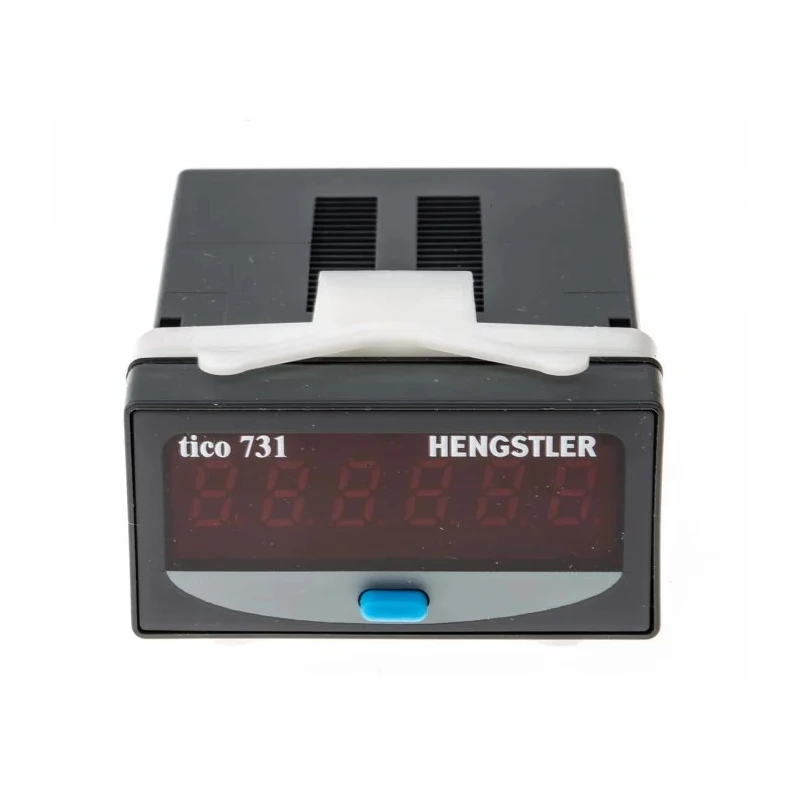

Operating temperature ranges from -10°C to 50°C, enabling usage in standard industrial environments without performance degradation. The 7 mm high LED digits provide excellent readability from a distance, ensuring easy monitoring of count status.

Programmable digital counter with 6-digit LED display. Supports impulse count mode with up counting direction. Maximum count frequency of 7.5 kHz for efficient high-speed counting. Dual reset capability: automatic and manual via front button or external signal.

Transistor output and control input for advanced counting control. Compact panel mount design with screw terminal connections. Operating temperature from -10°C to 50°C for industrial applications. Clear visibility with 7 mm digit height LED display.

Durable and reliable performance for manufacturing and assembly lines. Suitable replacement for electro-mechanical counters with enhanced features.

This Hengstler digital counter is widely used in industrial counting applications, control and monitoring systems, and manufacturing assembly lines. Its ease of programming, robust design, and versatile input/output capabilities make it a preferred choice for modern electronic counters.
