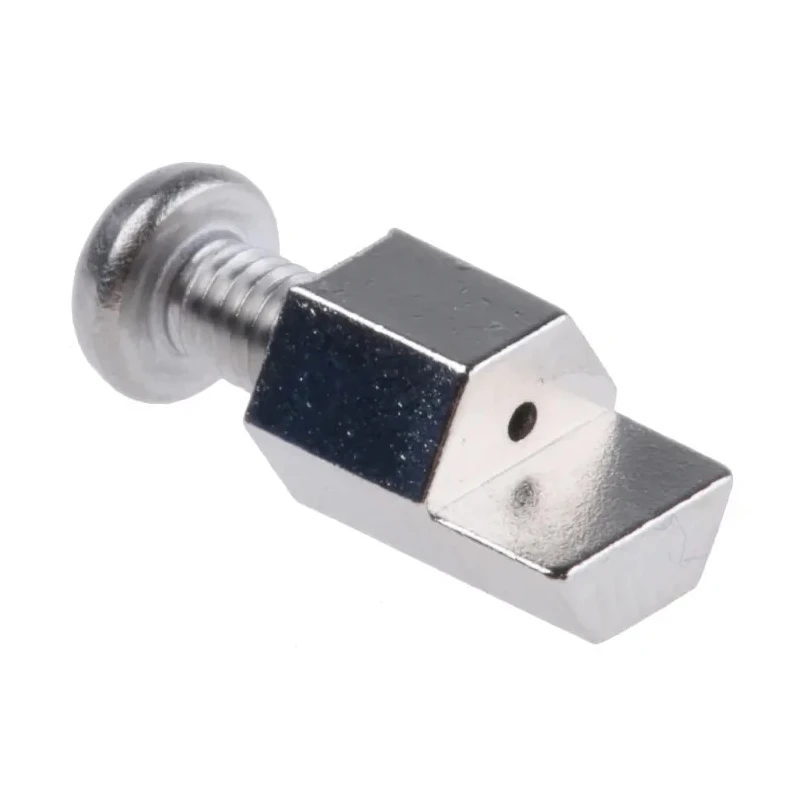

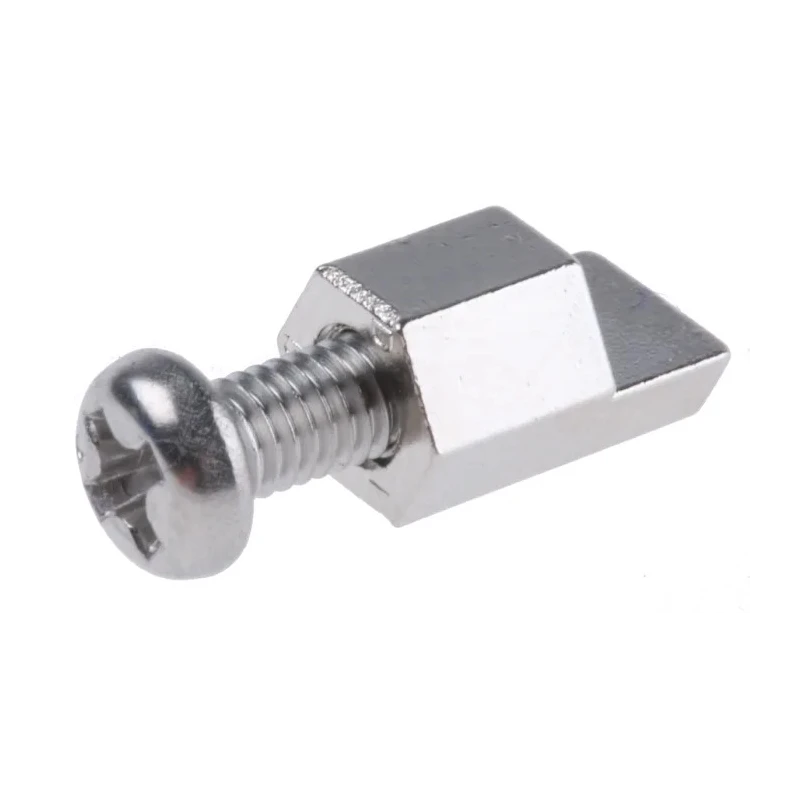

ITT Cannon DL - DLM Corner Polarization Kit for Use with DL5 - DLM5 320-4502-000
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | ITT Cannon |
| Material | Stainless Steel, Zinc |
| Colour | Silver |
| Series | DL - DLM |
| Accessory Type | Corner Polarization Kit |
| For Use With | DL5 - DLM5 |
Key Features
- Kit includes four posts with mounting screws for installation.
- Designed for use with DL5 - DLM5 series connectors.
- Constructed from stainless steel and zinc for durability and corrosion resistance.
- Available in silver colour to match connector hardware.
- Ensures zero insertion force and precise polarisation on multi-pole connectors.
- Compatible with 60, 96, 156, and 360-way body connectors (Kit D).
- Manufactured in Japan to high-quality standards.
- Provides reliable connection in medical, computer, audio, broadcast, and avionics equipment.
Product Description
ITT Cannon 320-4502-000 Corner Polarization Kit is a precision accessory designed for DL5 - DLM5 series multi-pole connectors. This kit includes four stepped posts with mounting screws, which mount in the corners of plug and socket bodies to ensure that connectors of similar size only mate with set polarised configurations, preventing incorrect connections.
Constructed from robust stainless steel and zinc materials, finished in silver, this kit offers excellent durability and corrosion resistance. It is specifically made for use with various body sizes including 60, 96, 156, and 360-way connectors under Kit D configurations. Note that Kit D is not suitable for use with certain metal hoods (e.g., stock numbers 341-9019, 341-9025, & 341-9003).
The ITT DL range of zero insertion force (ZIF) multi-pole connectors, featuring high contact density and long service life with up to 10,000 mating cycles, is widely employed in diagnostic, test, and instrumentation equipment across medical, computer, audio, broadcast, and avionics industries. This corner polarization kit complements the DL range by enhancing connector polarisation and reliability.
Includes four posts with mounting screws for solid fixture. Compatible with DL5 - DLM5 connector series. Made from stainless steel and zinc for strength and corrosion resistance. Supports polarised configurations to prevent mismating.
Ideal for use in medical, audio, broadcast, avionics and computer equipment. Manufactured to high standards in Japan.
This product is essential for ensuring precise and reliable connections in multi-pole PCB DIN connector assemblies. Explore more PCB connector accessories and related components for your electronic and electrical projects in the Electronics Components category at EnvMart.
Explore more products in our PCB Connector Kit category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The kit includes four stepped posts with mounting screws for installation, designed to mount in the corners of plug and socket bodies for proper polarization.
This kit is compatible with DL5 - DLM5 series connectors and supports 60, 96, 156, and 360-way body connectors under Kit D configurations.
The kit is constructed from stainless steel and zinc, providing durability and corrosion resistance.
The corner polarization kit ensures zero insertion force and precise polarization on multi-pole connectors, preventing incorrect connections between similar-sized connectors.
The kit is finished in silver to match the connector hardware.
It is manufactured in Japan to high-quality standards.
This kit is suitable for use in medical, audio, broadcast, avionics, and computer equipment, enhancing the reliability of connections in these fields.
By providing precise polarization, the kit prevents mismating of connectors, ensuring reliable connections in PCB DIN connector assemblies.
The kit is designated for use with the DL - DLM series of connectors.
Yes, Kit D is not suitable for use with certain metal hoods, specifically stock numbers 341-9019, 341-9025, and 341-9003.
The mounting screws are used to securely fix the stepped posts in place, ensuring stable installation on the connectors.
Connectors in the DL range, which this kit supports, have a service life of up to 10,000 mating cycles.
