Kubler CODIX 521 Panel Mount Digital 6-Digit LED Counter 60 kHz 30V DC 6.521.012.300

Free Delivery in India | Lowest Global Shipping Charges

Kubler CODIX 521 Panel Mount Digital 6-Digit LED Counter 60 kHz 30V DC 6.521.012.300

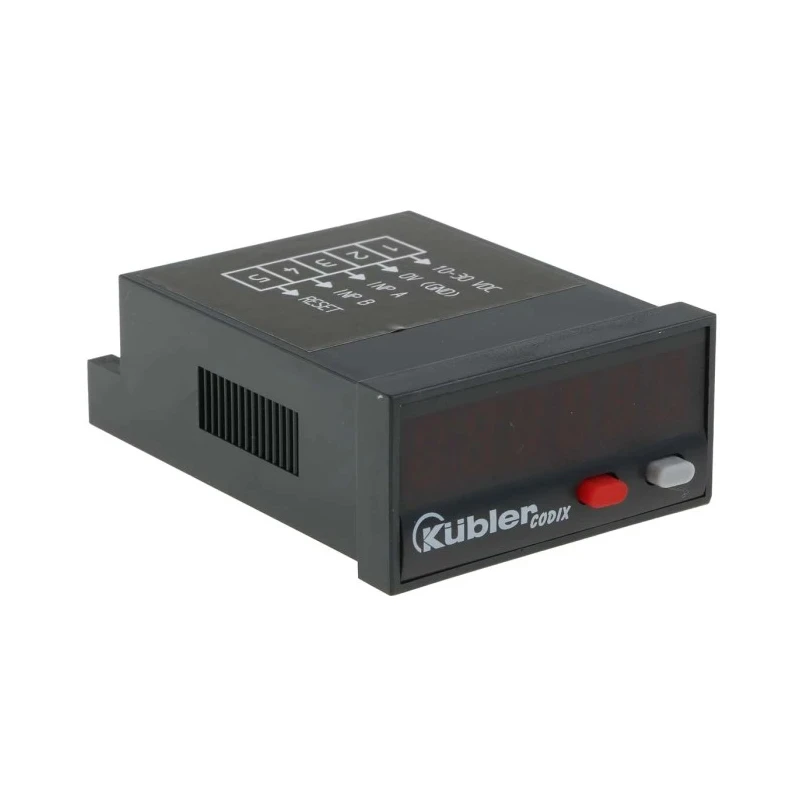

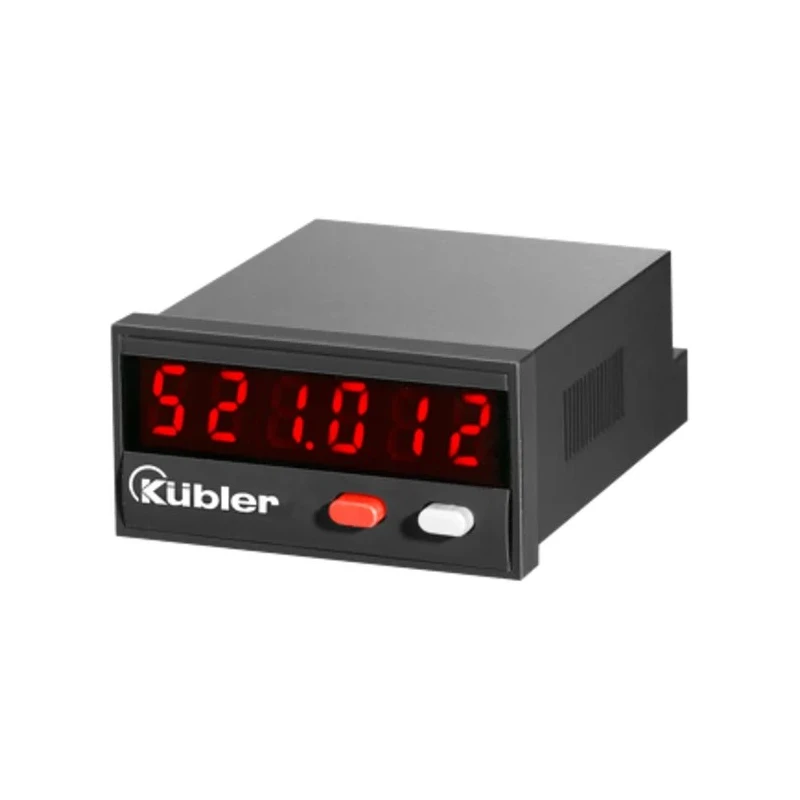

Name: Kubler CODIX 521 Panel Mount Digital 6-Digit LED Counter 60 kHz 30V DC 6.521.012.300
Brand: Kubler
SKU: 116665
Price: 189.61 USD
Availability: InStock



Category Panel Mount Digital Counter Brand Kubler Condition New

Specifications

Country of Origin	Germany
Display Type	LED
Brand	Kubler
Function	Counter
Depth	59mm
Gross Weight	50g
Mount Type	Panel Mount
Series	CODIX 521
Maximum Operating Temperature	65°C
Meter Type	Electronic
Number Of Digits	6
Minimum Operating Temperature	-20°C
Digit height	8mm
Cutout Height	25mm
Cutout Width	50mm
Count Mode	Impulse
Count Direction	Bi-Directional
Maximum Supply Voltage	30V dc
Maximum Count Frequency	60kHz
Minimum Measurement	0.0001
Maximum Measurement	999999
CODIX 521 Counter, 6 Digit, 60kHz, 10 → 30 V dcBrand	NEUTRAL
Kubler CODIX 524, 6 Digit CounterBrand	Kubler

Key Features

Panel mount type with dimensions 48 mm x 24 mm for front display.
6-digit LED display with 8 mm digit height for clear visibility.
Supports impulse count mode with bi-directional counting capability.
Operates in temperature range from -20°C to 65°C for industrial robustness.
Maximum count frequency is 60 kHz suitable for fast pulse detection.
Equipped with NPN and PNP input signal compatibility for versatile use.
Four count input modes including count direction, difference, addition, and quadrature x1, x2, x4.
Simple menu-driven programming with two front keys for easy setup.

Product Description

Kubler 6.521.012.300 CODIX 521 series is a high-performance panel mount digital counter designed for precise pulse counting applications. Featuring a 6-digit LED display with 8 mm high digits, it provides clear and reliable readouts suitable for industrial environments. The counter operates on a DC voltage range of 10 V to 30 V and supports a maximum count frequency of 60 kHz, enabling accurate fast pulse measurement.

This electronic counter supports impulse count mode and can count bi-directionally, enhancing its functionality for complex monitoring tasks. It features four programmable count input modes including count direction, difference, addition, and quadrature x1, x2, and x4. These modes make it adaptable to various industrial counting needs such as manufacturing lines, control systems, and monitoring applications.

The device accepts both NPN and PNP input signals and offers simple, uniform menu-driven programming via two front keys. With a compact front panel dimension of 48 mm x 24 mm and cutout dimensions of 50 mm width by 25 mm height, it fits standard panel mounts with ease. Its operation temperature range from -20°C up to 65°C and an IP65-rated front panel ensure durability and reliability in harsh industrial conditions.

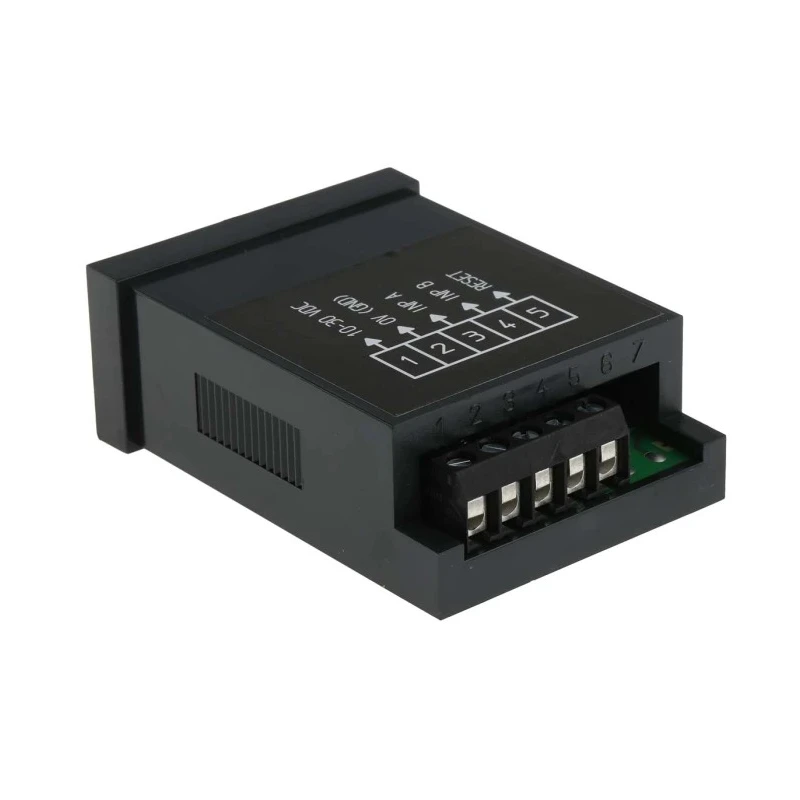

Installation is facilitated by plug-in screw terminals, and manual or electrical reset options are available for flexible operation. This counter weighs approximately 50 grams and originates from Germany, assuring quality and design integrity.

Typical applications include industrial counting, manufacturing assembly monitoring, control and automation systems demanding precise pulse counting and display. Panel Mount Digital Counter with six-digit LED display and 8 mm digit height.

Impulse count mode with bi-directional counting and four input modes. Maximum count frequency up to 60 kHz for fast signal processing. Operating voltage range from 10 to 30 V DC with NPN/PNP input compatibility. IP65 front panel rating and operating temperatures from -20°C to 65°C.

Compact dimensions with plug-in screw terminals for easy installation. Discover other precision counters and industrial measurement instruments in the Electronics Components category at EnvMart to suit your application requirements.
