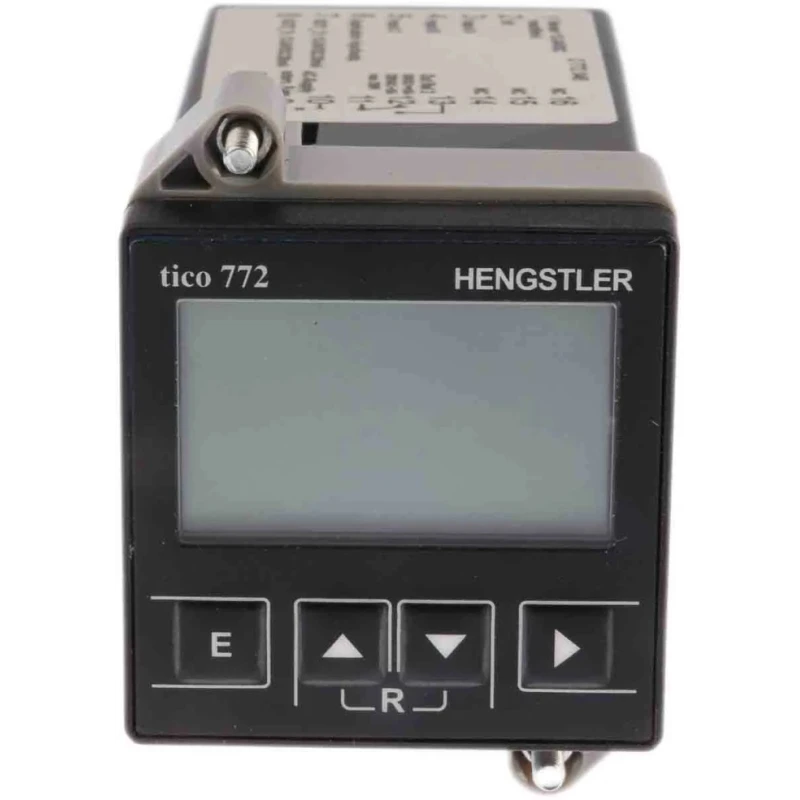

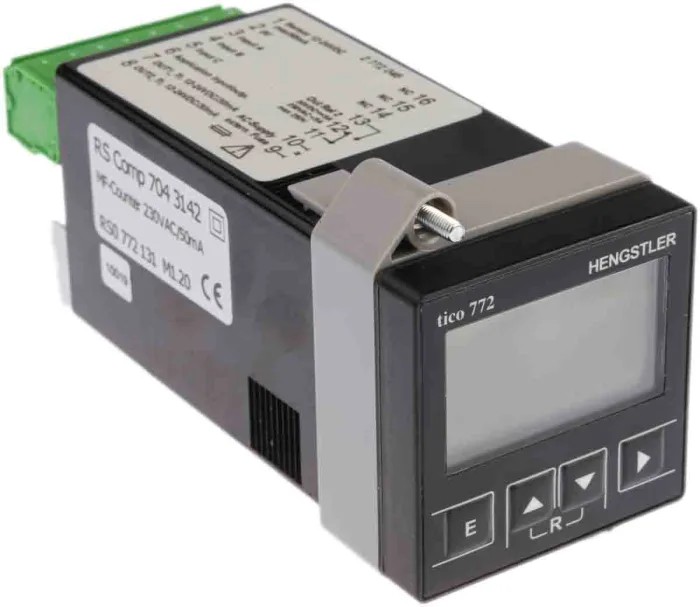

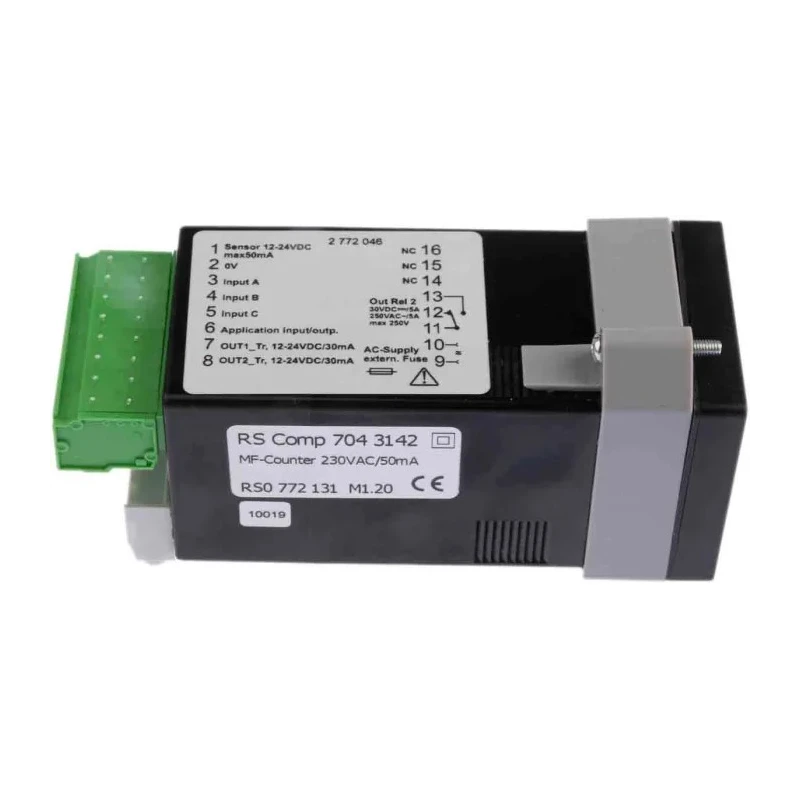

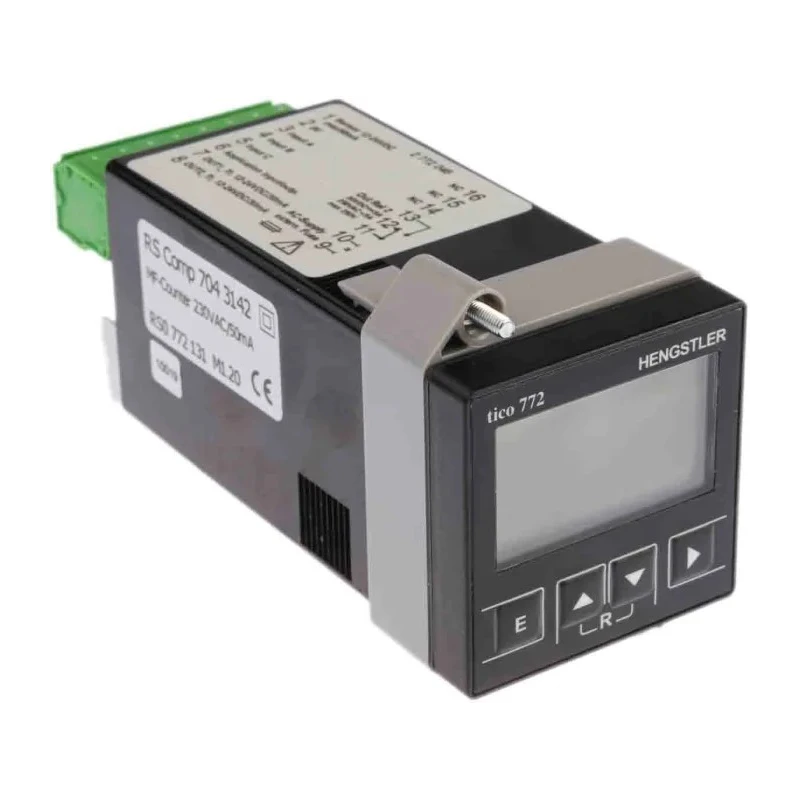

Hengstler Panel Mount Digital Counter with 6-Digit LCD Display, Automatic & Manual Reset, 230VAC, Model 0 772 131

Hengstler 0 772 131 is a high-quality Panel Mount Digital Counter designed for industrial and automation applications. This 6-digit counter features a large LCD display with digit height of 9.3mm, allowing clear readability in various lighting conditions. It supports both automatic and manual reset methods, enhancing operational flexibility.

The device supports count and preset ranges from -999,999 to +999,999, making it suitable for wide-ranging counting tasks in manufacturing, process control, and quality assurance environments. It integrates a voltage input and relay outputs with alarm signaling capabilities that activate upon reaching preset values 0, 1, or 2, improving process control safety.

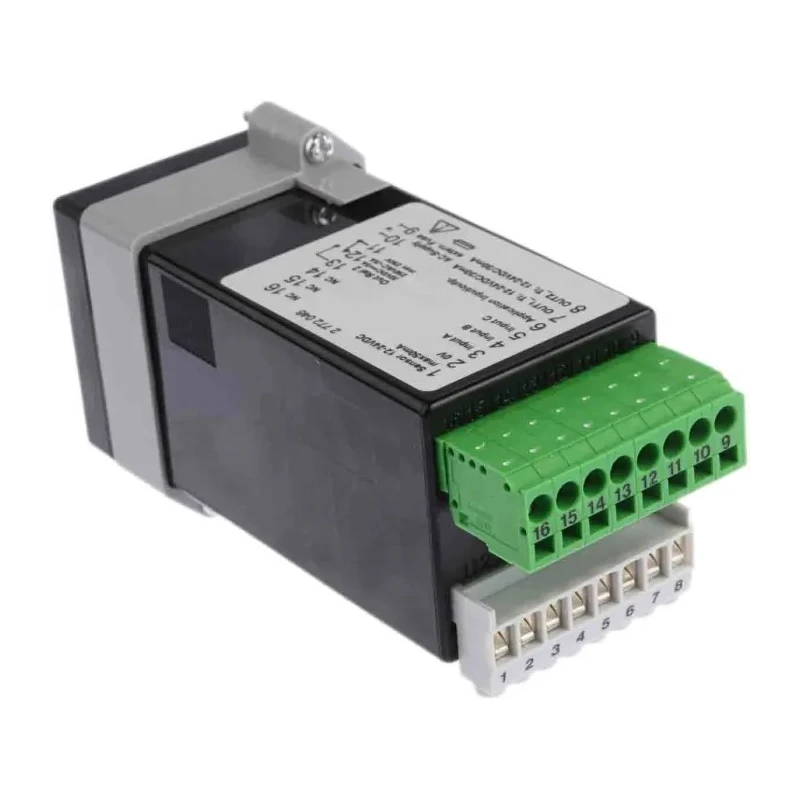

Its compact 48mm x 48mm front dimensions enable easy installation using plug-in terminals, facilitating swift maintenance and replacement. The counter's high maximum count frequency of 60 kHz (achievable under special calibration) ensures fast and accurate counting where high-speed operation is necessary. The backlighting can be set to four distinct colors with adjustable intensity, enhancing visibility according to operational requirements.

The device’s protection rating of IP65 on the front panel makes it resistant to dust and water, suitable for industrial environments. Operating temperature ranges from 0°C to 50°C, supporting use in a variety of factory and laboratory settings.

Typical applications include time control, position indication, batch counting, cutting to length, and rotation speed monitoring. This counter meets industry demands for reliable, precise, and easy-to-use counting instruments and is UL approved, CSA certified, and compliant with EN 61010-1 / IEC 61010-1 standards.

Compact 48mm x 48mm front panel for flush installation. Supports counting ranges between -999999 to +999999. Maximum count frequency of 60 kHz (special calibration required). Four selectable backlight colors with adjustable intensity.

Includes relay outputs and alarm signals for preset activations. Automatic and manual reset options enhance adaptability. IP65 rated front panel protects against dust and water ingress. Operating temperature between 0 and 50 degrees Celsius for diverse environments.

German-made for quality and reliability. Explore the Hengstler product range and select high-quality industrial counters tailored to your application needs on EnvMart.
