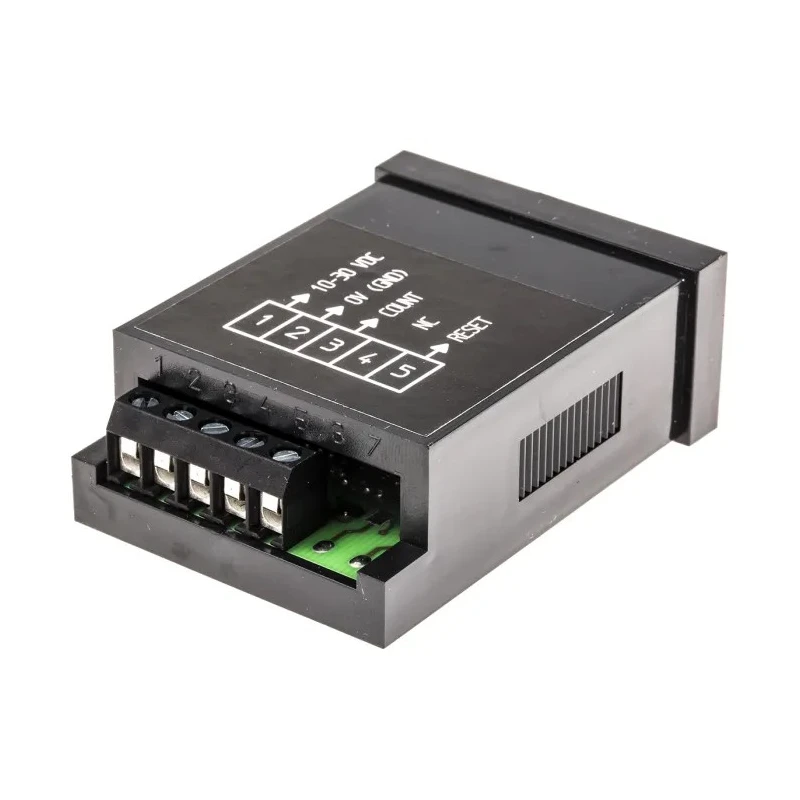

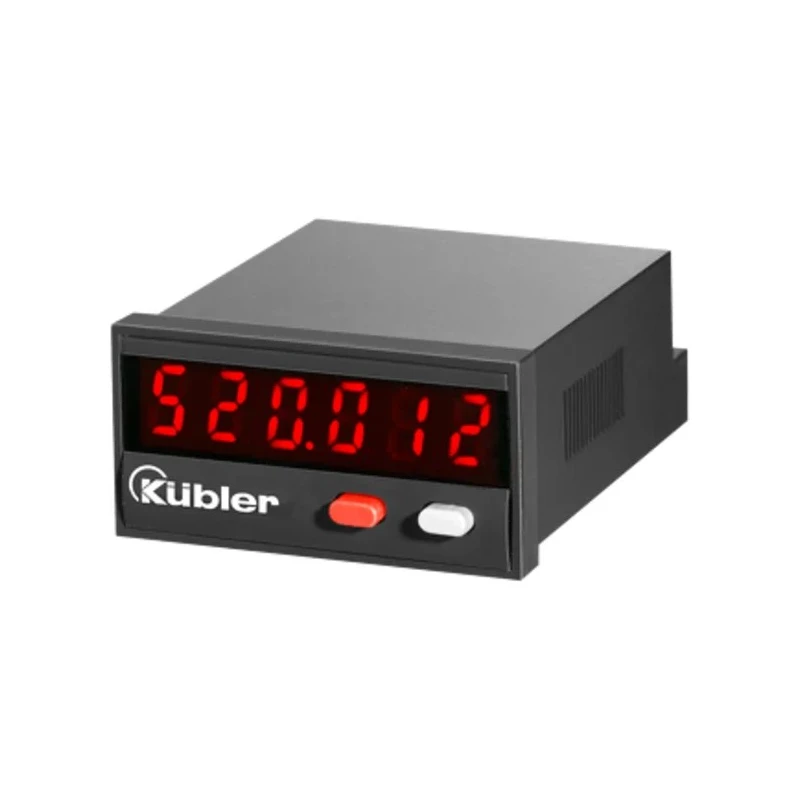

Kubler CODIX 520 Panel Mount Digital Counter, 6 Digit LED Display, 60 kHz Frequency, 30 V DC 6.520.012.300

Kubler 6.520.012.300 CODIX 520 is a high precision Panel Mount Digital Counter designed for industrial counting applications. It features a 6 digit LED display that operates at a maximum count frequency of 60 kHz and supports impulse count mode with an upward counting direction.

This counter supports a supply voltage range from 10 V DC up to 30 V DC, making it compatible with a wide range of control systems. The digit height of 8 mm ensures easy readability even in demanding industrial environments. Its robust design includes plug-in screw terminals for secure wiring and a multifunction reset key that can be locked electronically, enhancing operational safety.

The device is programmed via two front keys allowing for flexible setup parameter adjustment. It offers both manual and electrical reset options, supporting easy integration into various industrial and manufacturing assembly lines.

Operating within temperature limits from -20°C to 65°C, the CODIX 520 counter is suitable for diverse environments. The compact front dimensions of 48 mm by 24 mm allow it to fit standard panels neatly while offering an IP65 rating for protection against dust ingress and water jets, ensuring durability in harsh conditions.

This product is widely used in control and monitoring systems, industrial counting applications, and manufacturing assembly lines, where reliability and accuracy are critical. The counter supports impulse counting with up count direction.

Operation voltage up to 30 V DC provides application flexibility. Large digit height of 8 mm for enhanced visibility. Multifunction reset key with locking capability improves operational control. Panel mount design with plug-in screw terminals for easy installation.

Programmable parameters via front keys enable customization. Manual or electrical reset options for flexible operation. Wide operating temperature range caters to harsh industrial environments. IP65 rating ensures protection against dust and water.

Compact front dimensions for efficient panel integration.

Made in Germany, this well-engineered counting device meets the stringent quality standards required in industrial automation and control applications. Explore more Kubler industrial counters and solutions at EnvMart for your automation needs.
