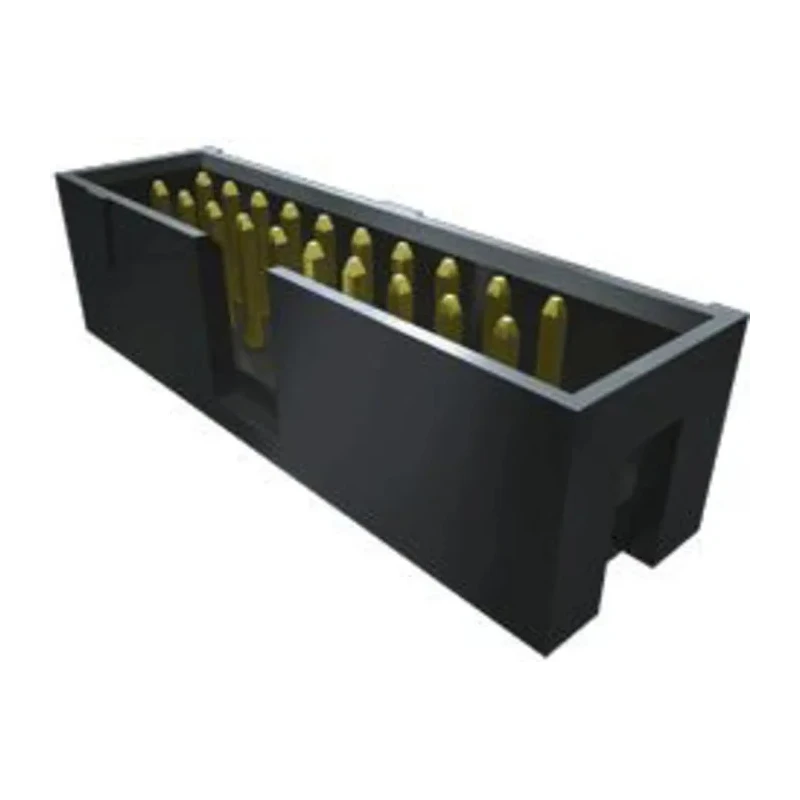

Samtec TST Series Straight Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded TST-110-01-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | TST-110-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TST |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features 20 contacts and a fine 2.54 mm pitch for compact PCB designs.
- Dual-row layout enables efficient connectivity and space optimization on circuit boards.
- Shrouded housing protects pins from misalignment and accidental damage during mating operations.
- Phosphor bronze contact material with tin plating ensures excellent electrical conductivity and corrosion resistance.
- Through-hole mounting and solder termination provide robust mechanical retention.
- Supports operating currents up to 3.4A and voltages up to 1 kV for industrial PCB interfacing.
- Glass filled polyester housing delivers high durability and thermal stability from -55°C to 105°C.
- Board-to-board connector system facilitates versatile application in electronic assembly, instrumentation, and embedded hardware.
Product Description
The Samtec TST-110-01-T-D Straight Through Hole PCB Header is a high-quality board-to-board connector designed to meet demanding requirements for reliable signal and power interfacing in electronic systems. Featuring 20 contacts in a dual-row configuration with a standard 2.54 mm pitch, this header simplifies circuit design and enables densely populated boards while ensuring precise connectivity.
Its shrouded, glass filled polyester housing helps safeguard the contacts from misalignment, accidental damage, and environmental factors, making it well-suited for industrial, instrumentation, and embedded applications where robustness and ease of mating are critically important. The board-to-board connector system provides flexibility for various design configurations, enhancing system modularity and ease of assembly.
Engineered for through-hole mounting and solder termination, the TST-110-01-T-D header provides strong mechanical retention and simple integration into PCBs. The phosphor bronze contacts, finished with tin plating, deliver low contact resistance and excellent corrosion protection, ensuring signal integrity over extended operational cycles.
Capable of handling currents up to 3.4A and voltages up to 1 kV, the header supports wide-ranging interfacing needs in industrial control, automation, test and measurement equipment, embedded computing, and communication hardware. Operating temperatures span from -55°C to 105°C, accommodating both harsh and controlled environments.
This Samtec connector is commonly used for board-to-board interconnections, signal distribution, and power transmission across a diverse spectrum of applications - including industrial PCBs, lab instrumentation, embedded platforms, and commercial electronics where robust, shrouded headers are required for reliability as well as safety.
Explore more PCB connectors and headers in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3.4A.
This header can handle voltages up to 1 kV.
The contacts on this PCB header have a pitch of 2.54 mm.
This model features 20 contacts arranged in a dual-row configuration.
It uses solder termination for secure mounting.
The operating temperature range is from -55°C to 105°C.
The housing is made from glass filled polyester, providing high durability.
The contacts are made of phosphor bronze and are tin plated for corrosion resistance.
This model is shrouded, which helps protect the pins from misalignment and damage.
It supports through-hole mounting, ensuring strong mechanical retention.
This header is suitable for board-to-board interconnections in industrial control, automation, and embedded systems.
It utilizes a board-to-board connector system, enhancing modularity in electronic designs.
