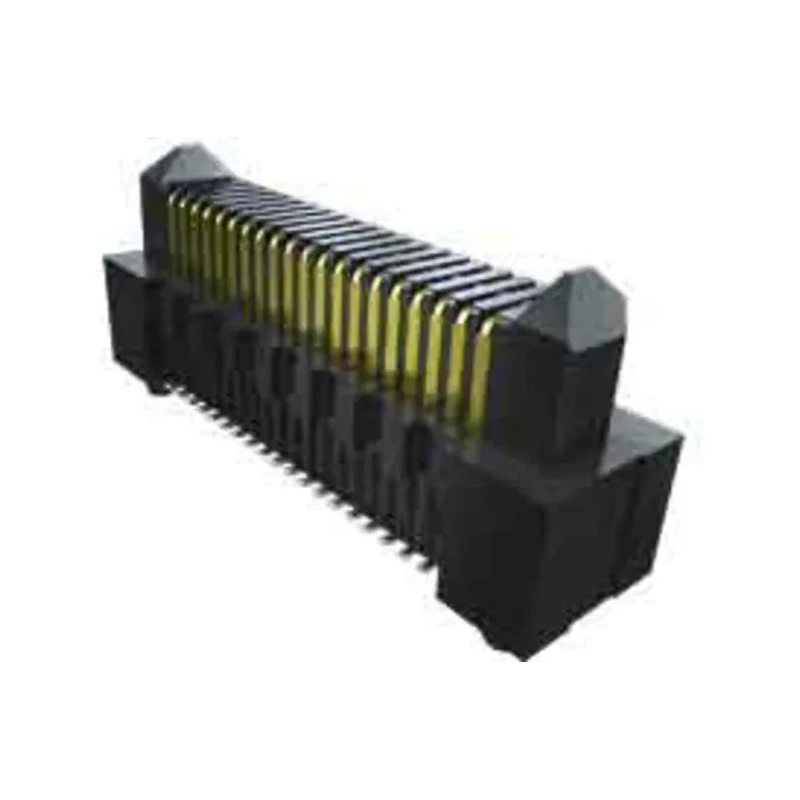

Samtec ERM8 Series Straight Surface PCB Header 20 Contacts, 0.8 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | ERM8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Positions | Up to 200 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Stack Height | 7.00 mm - 16.00 mm |
Key Features
- Features 20 phosphor bronze contacts for high current capacity and endurance.
- Compressed 0.8 mm pitch suitable for compact PCB layouts.
- Shrouded 2-row architecture ensures precise connection and prevents misalignment.
- Constructed with liquid crystal polymer housing for enhanced durability and thermal resistance.
- Straight surface mount orientation facilitates automated soldering workflows.
- Gold contact plating provides superior conductivity and corrosion resistance.
- Wide operating temperature range from -55°C to 125°C, ideal for demanding environments.
- Supports up to 2.2A current and 318V voltage ratings for versatile signal applications.
Product Description
The Samtec ERM8-010-05.0-S-DV-K-TR is a high-performance straight surface PCB header engineered for precision wire-to-board connections in advanced electronic assemblies. Its compact 0.8 mm pitch and 2-row shrouded design optimize PCB real estate while enabling secure, vibration-resistant mating.
Each header incorporates 20 phosphor bronze male contacts, plated in gold to ensure excellent conductivity and extended wear life, especially in rugged industrial, automation, or embedded electronic systems. The housing is made from liquid crystal polymer, delivering notable resistance to heat, chemicals, and mechanical stress.
Straight surface-mount orientation speeds up automated soldering and assembly, supporting efficient PCB production lines. Shrouded architecture prevents connector misalignment during installation and protects the contacts against accidental disconnection and mechanical damage.
The header's electrical specifications include a maximum current rating of 2.2A and voltage of 318V, suitable for signal transmission, control, and power circuits, while its wide operating temperature range (-55°C to 125°C) makes it a strong candidate for harsh environments including industrial, laboratory, and telecommunication platforms.
The dual-row configuration, 0.8 mm row pitch, and solder termination type make this header ideal for dense, high-speed PCB layouts where signal integrity and space efficiency are paramount. The rugged Edge Rate® contact technology enhances wear life, and the Final Inch® break out region data availability aids in layout optimization.
Typical industrial and commercial applications include robotics, automotive control electronics, telecom base stations, and scientific instrumentation where reliable, high-density PCB connectivity is required.
20-position, 2-row shrouded header optimizes compact PCB designs. Gold-plated phosphor bronze contacts ensure electrical reliability. Liquid crystal polymer housing enhances heat and chemical resistance. Surface-mount straight orientation supports automated production.
Suitable for harsh environments with wide temperature ratings. 318V voltage and 2.2A current handling for diverse circuit needs. Edge Rate® contact design for improved wear and signal performance. Recommended for industrial, laboratory, automation, and telecommunication signal boards.
Explore more PCB Headers, connectors, and Samtec brand products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 2.2A, making it suitable for various signal applications.
This header has a voltage rating of 318V, allowing it to be used in diverse circuit applications.
The contacts are made of phosphor bronze and are plated with gold to ensure excellent conductivity and durability.
The pitch size of the contacts is 0.8 mm, which is designed for compact PCB layouts.
This unit supports surface mounting, facilitating automated soldering workflows during assembly.
It operates within a temperature range of -55°C to 125°C, suitable for harsh environments.
This model features 20 contacts, which are arranged in a 2-row configuration.
The housing is constructed from liquid crystal polymer, providing enhanced durability and thermal resistance.
The shrouded architecture of this header ensures precise connection and prevents misalignment during installation.
Typical applications include robotics, automotive control electronics, telecom base stations, and scientific instrumentation.
The termination type for this model is solder, which is standard for secure connections in PCB assemblies.
The stack height for this model ranges from 7.00 mm to 16.00 mm, accommodating various design needs.
