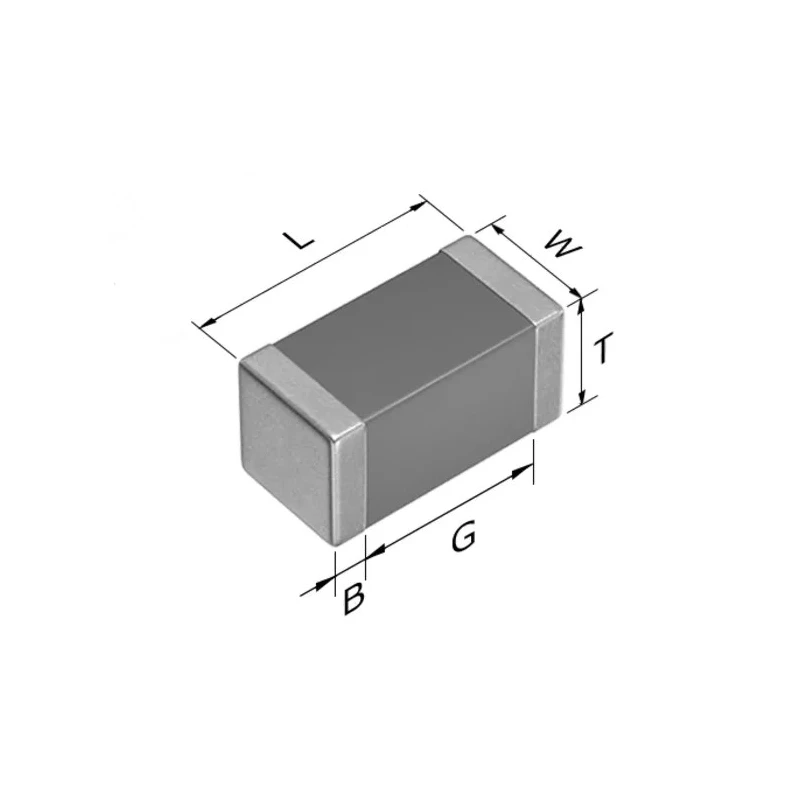

TDK Multilayer Ceramic Capacitor, 1 nF, 250V DC, ±5% Tolerance, Surface Mount, 0603 Package, C0G, CGA3E3C0G2E102J080AA

The TDK CGA3E3C0G2E102J080AA is a high-quality multilayer ceramic capacitor engineered for advanced electronic applications requiring consistent performance and reliability. With a capacitance of 1 nF and a voltage rating of 250V DC, this capacitor is suitable for demanding circuits where stability and low loss are essential.

Utilizing C0G dielectric technology, the device is designed to maintain minimal distortion, excellent frequency characteristics, and superior DC bias properties. Its ±5% tolerance ensures consistent operation where precise values are required, while its Class I suppression and automotive standard AEC-Q200 certification make it ideal for both automotive and industrial environments.

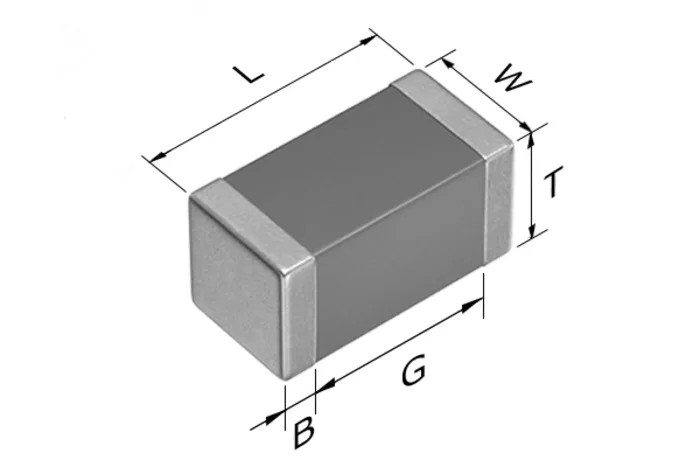

The capacitor comes in a compact 0603 package, facilitating efficient PCB space usage without sacrificing mechanical robustness. Surface mount termination allows easy integration into SMT assembly processes, making it compatible with modern manufacturing methods. Packaging in tape and reel format supports high-volume automated production.

Operational from -55°C up to 125°C, the CGA3E3C0G2E102J080AA can be used in a wide variety of climate conditions, including those found in automotive, industrial, and commercial electronic systems. Applications include decoupling, smoothing, and snubber circuits for inverters, DC-DC converters in HEVs or EVs, and as countermeasures for voltage surges and electrical noise in connectors.

Precision engineering results in high capacitance with low residual inductance, making it suitable for high-frequency circuits, ensuring signal integrity and reliability. Its robust design withstands voltage surges and is highly resistant to environmental stresses, supporting critical system reliability.

The product series CGA is recognized for high stability and performance across a wide range of rated voltages and capacitance values, providing designers with versatility for many circuit designs.
