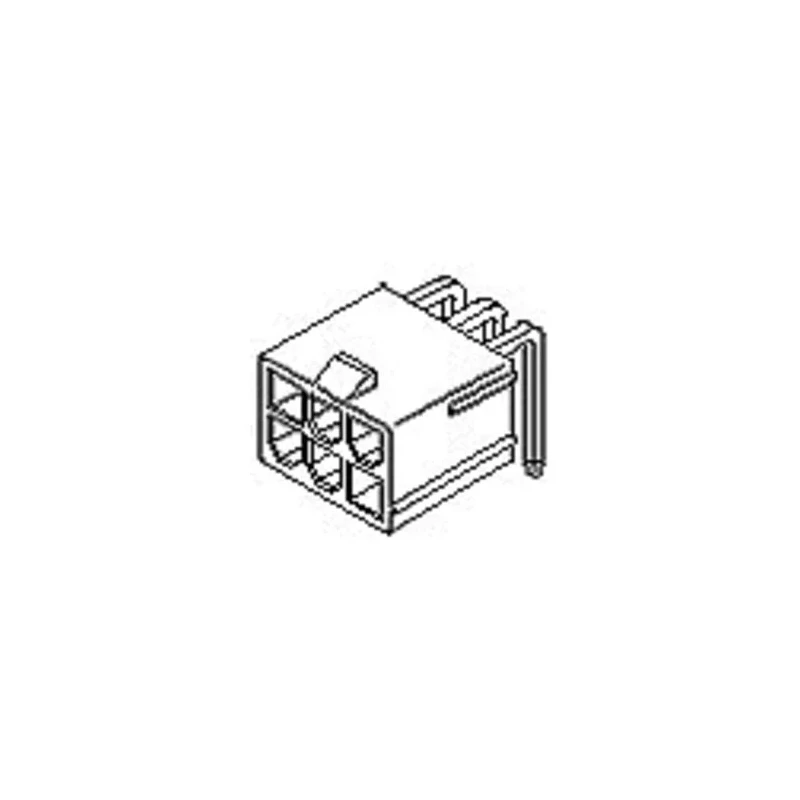

Molex Mini-Fit Jr Series PCB Header 6 Contacts 4.2 mm Pitch Right Angle Through Hole Shrouded 45732-0001
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 8A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.6mm |
Key Features
- This PCB header features 6 reliable contacts for efficient connectivity.
- 4.2 mm pitch provides optimal spacing for signal and power connections.
- Designed with right angle orientation for space-saving on printed circuit boards.
- Through hole mounting enhances mechanical strength and secure installation.
- Shrouded housing ensures robust mating and reduces the risk of contact damage.
- Supports wire-to-board connections and is suitable for high end graphics and PCI Express add-in cards.
- Rated for 8A current and 600V voltage for demanding applications.
- Thermoplastic housing offers durability and high resistance to temperature extremes.
Product Description
The Molex 45732-0001 Mini-Fit Jr Series PCB Header is a precision-engineered connector designed for wire-to-board applications in industrial, electronics, and commercial systems. With its 6-contact configuration and 4.2 mm pitch, it facilitates reliable power and signal transmission in densely populated PCB layouts.
This header is designed for right angle orientation, which assists in optimizing board layout where space is limited. The through hole mounting ensures a mechanically secure attachment to the PCB, critical for environments where vibration or stress on connectors may occur.
The shrouded housing is constructed from high-grade thermoplastic that withstands temperatures from -40°C up to 105°C, offering protection to the contacts and reducing the risk of accidental shorting or damage during cable connection and removal.
Engineered for demanding interfaces such as PCI Express and high-end graphics add-in card systems, the connector supports a maximum current rating of 8A and up to 600V voltage, making it suitable for a wide range of industrial and electronic applications including manufacturing equipment, instrumentation, consumer electronics, and embedded systems.
Contacts are manufactured from brass and finished with tin plating for enhanced conductivity and corrosion resistance. The connector supports wire-to-board connections and is terminated via soldering, ensuring compatibility with automated assembly lines and high-volume production processes.
The robust two-row, male contact design, paired with shrouded housing, guarantees stable mating and reduced wear over repeated insertions. Minimum tail pin length is 3.6 mm, supporting both electrical and mechanical integrity. The product is RoHS compliant, ensuring adherence to environmental standards.
Common industrial uses for this connector include PCB assemblies in power supply boards, electronic modules, control panels, laboratory equipment, and commercial electronics. It is ideal for systems requiring secure, high-density connections and reliable performance in varied operating conditions.
Discover more Molex PCB Headers and compatible connectors in Electronics & Electricals, or browse Molex for additional solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 8A, making it suitable for demanding applications.
It can handle up to 600V, which is suitable for various industrial and electronic applications.
The pitch of the contacts is 4.2 mm, providing optimal spacing for signal and power connections.
This unit utilizes through hole mounting, enhancing mechanical strength and secure installation on printed circuit boards.
The housing is made from thermoplastic, while the contacts are manufactured from brass and finished with tin plating for enhanced conductivity.
It operates within a temperature range of -40°C to 105°C, allowing it to function in varied environments.
This model features 6 contacts, designed for efficient connectivity in wire-to-board applications.
It is designed with a right angle orientation, which helps save space on printed circuit boards.
The termination type is solder, ensuring compatibility with automated assembly lines and high-volume production processes.
Yes, this model is RoHS compliant, ensuring adherence to environmental standards.
It is suitable for applications in power supply boards, electronic modules, control panels, and commercial electronics.
The minimum tail pin length is 3.6 mm, which supports both electrical and mechanical integrity.
