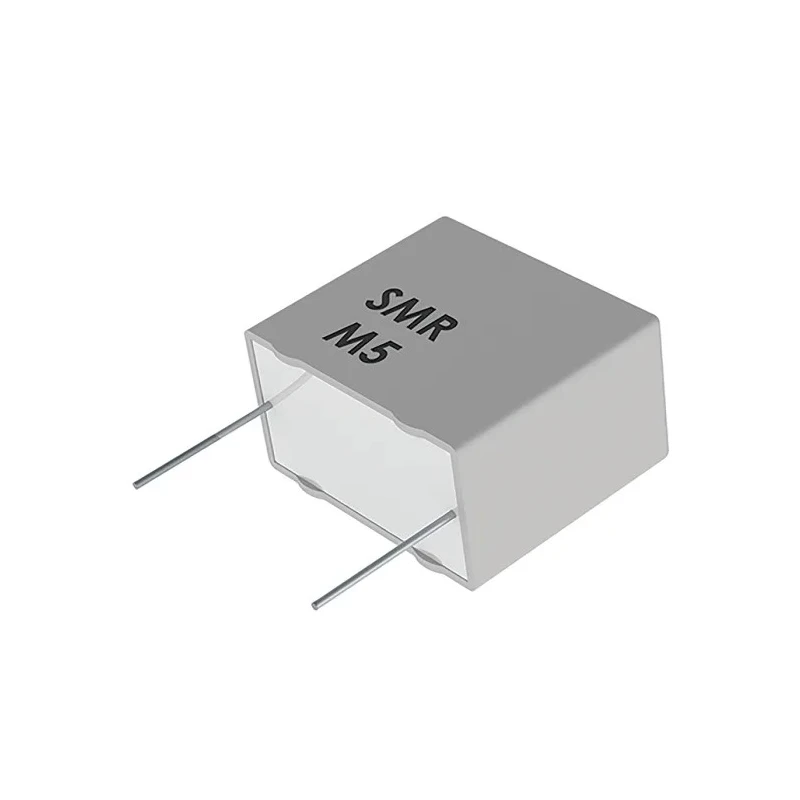

KEMET SMR Series Film Capacitor 22 nF 50 V DC 30 V AC ±5% Through Hole 16.5 mm Lead SMR5223J50J01L16.5CBULK

Name: KEMET SMR Series Film Capacitor 22 nF 50 V DC 30 V AC ±5% Through Hole 16.5 mm Lead SMR5223J50J01L16.5CBULK
Brand: KEMET
SKU: 81326



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	Finland
Capacitance Range	0.001 - 22 μF
Brand	KEMET
Height	6.5mm
Length	7.2mm
Model	SMR5223J50J01L16.5CBULK
Packaging	Bag
Width	2.5mm
Mount Type	Through Hole
Series	SMR
Maximum Operating Temperature	150°C
Rated Temperature	125 °C
Tolerance	±5 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Terminal type	Solder
Lead Length	16.5mm
Standards/Approvals	IEC 60068-1, RoHS
Pin Count	2
Rated AC Voltage	30V ac
Rated DC Voltage	50V dc
Lead Pitch	5mm
Lead Diameter	0.5mm
Capacitance tolerance	±10%, ±20%, ±2.5% and ±5%
Lead Spacing	5 - 27.5 mm

Key Features

Metallized polyphenylene sulfide film construction delivers stability and excellent self-healing properties.
Capacitance value is 22 nanofarads with a tight ±5% tolerance for precise circuit requirements.
Suitable for both 50 V DC and 30 V AC operation within a wide temperature range from minus 55 up to 150 degrees Celsius.
Encapsulated in self-extinguishing material for enhanced safety in demanding environments.
Radial tinned wire leads with 5 mm lead pitch and 16.5 mm lead length allow convenient PCB mounting.
Passes IEC 60068-1 and RoHS standards, confirming high quality and environmental compliance.
Automotive-grade reliability and suitable for industrial, commercial, or precision electronics design.

Product Description

The KEMET SMR5223J50J01L16.5CBULK is a high-precision film capacitor engineered for demanding electronic circuit applications. With a capacitance of 22 nF and tight ±5% tolerance, it offers stable, accurate performance, making it an ideal choice for filter, coupling, and timing circuits requiring reliability and low loss.

This capacitor is based on metallized polyphenylene sulfide (PPS) film technology, providing excellent self-healing properties and long service life. Its radial construction with tinned wire leads ensures secure connections and easy through-hole PCB mounting. The compact dimensions (7.2 mm x 2.5 mm x 6.5 mm) allow space-efficient placement on dense circuit boards.

With rated voltages of 50 V DC and 30 V AC, the SMR5223J50J01L16.5CBULK is suitable for a broad range of low-voltage AC and DC applications. It can withstand harsh conditions, operating reliably between -55°C and 150°C, and is encapsulated in self-extinguishing plastic for enhanced electrical and thermal safety.

The capacitor is RoHS-compliant and meets IEC 60068-1 standards, ensuring suitability for modern industrial and environmentally responsible installations. The 5 mm lead pitch and 16.5 mm lead length facilitate high-speed automatic assembly processes or manual soldering, while the 0.5 mm lead diameter ensures robust mechanical stability.

Common applications include automotive electronics, industrial control systems, signal processing circuits, and commercial equipment where stable capacitance, safety, and environmental compliance are critical. The SMR5223J50J01L16.5CBULK is also a preferred choice for engineers designing for temperature extremes due to its wide thermal tolerance and reliable encapsulation.

Whether for prototyping or volume production, this KEMET SMR Series film capacitor brings precision, reliability, and compliance to your electronic designs. Discover other high-performance capacitors and passive components from KEMET and explore comprehensive electronics solutions under the Film Capacitors section on EnvMart.
