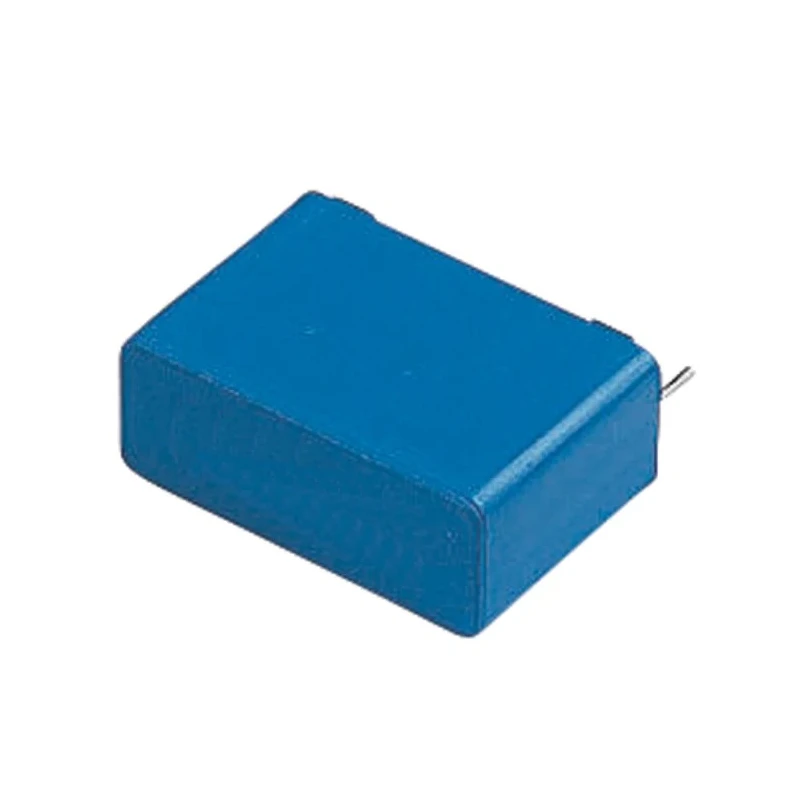

TDK Film Capacitor 47 nF, 200V AC, 630V DC, Through Hole, 2 Pins, 18x10.5x5 mm B32522Q8473J000

The TDK B32522Q8473J000 Film Capacitor is part of the renowned B32522 series, offering high reliability for industrial, automotive, and electronic circuit applications. With a capacitance of 47 nF, this component is ideal for tasks such as blocking, coupling, decoupling, bypassing, and radio frequency interference filtering.

This film capacitor is designed for through hole mounting and features a robust construction using stacked-film and wound technology with a plastic case and epoxy resin sealing to meet stringent flammability standards (UL 94 V-0).

Rated for operation at 200V AC and 630V DC, the device supports a wide range of voltage conditions. The lead pitch is 15 mm, with 2 pins ensuring compatibility with standard PCB layouts in manufacturing and prototyping environments. Its maximum operating temperature of 125°C enables use in high-temperature industrial control and automotive electronics.

Additional features include RoHS and UL compliance as well as the automotive AEC-Q200 Rev D standard, confirming suitability for sensitive and mission-critical applications. The physical dimensions are compact - 18 mm length, 10.5 mm height, 5 mm width - with 0.8 mm lead diameter for secure soldering and connection integrity.

Applications span industrial equipment, automotive RFI suppression, power supplies, motor drives, and general electronic circuits requiring reliable Film Capacitors. The component’s high pulse strength supports demanding transient and surge scenarios.

This capacitor is frequently utilized in blocking, coupling, and decoupling tasks, ensuring optimal performance and long-lasting circuit protection. Its compliance with major international standards underscores its quality and reliability.

For engineers and procurement professionals seeking high-performance passive components for industrial or automotive electronics, the TDK B32522Q8473J000 Film Capacitor offers a robust and tested solution. Explore more film capacitor options in the Electronics Components category from TDK at EnvMart.
