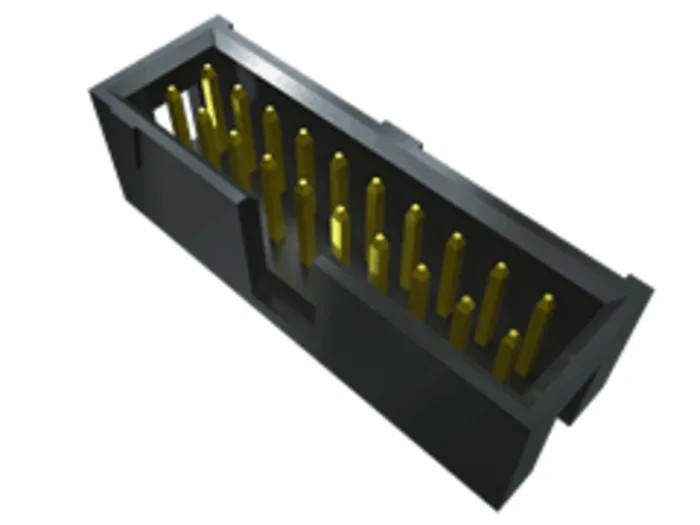

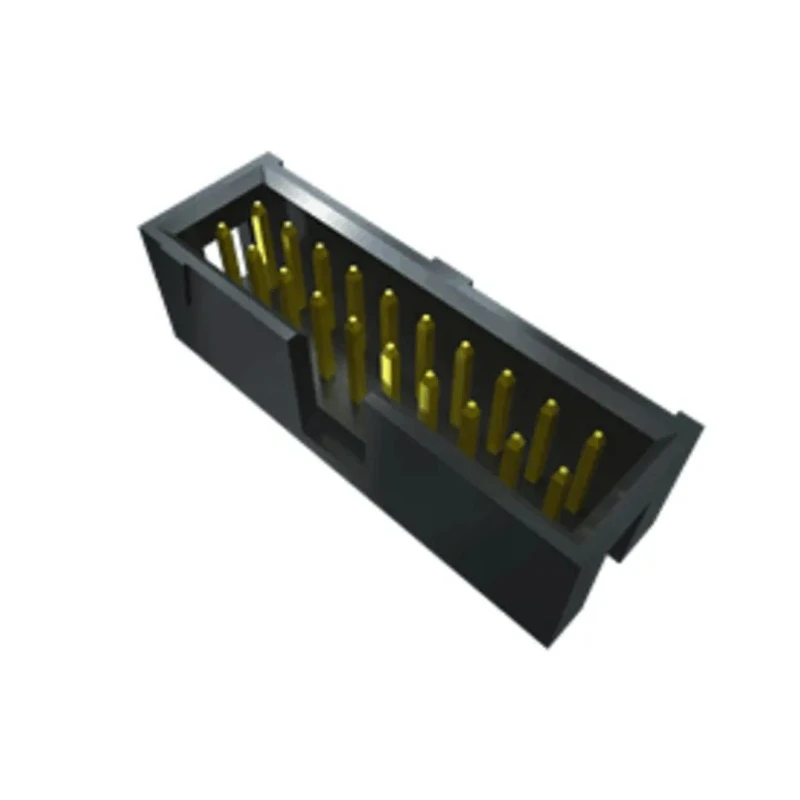

Samtec HTSS Series Right Angle Surface PCB Header, 10 Contacts, 2.54 mm Pitch, Shrouded, Surface Mount HTSS-105-01-L-DV

The Samtec HTSS-105-01-L-DV is a right angle surface PCB header with dual rows containing 10 contacts. This header offers a standard 2.54 mm pitch, making it suitable for a wide variety of circuit board layouts and interconnection requirements. Its shrouded design is especially advantageous for blind mating applications, helping prevent misalignment and ensuring reliable connections in high-density electronic assemblies.

This product is engineered with a high-temperature polycyclohexylenedimethylene terephthalate housing, providing robust performance and durability during extended use or exposure to challenging temperature conditions. The contacts are manufactured from phosphor bronze and finished with gold plating, delivering outstanding conductivity, resistance to corrosion, and strong mechanical connection for repeated insertions.

With a right angle orientation and surface mount termination type, the HTSS-105-01-L-DV supports efficient space-saving designs, especially in complex electronic systems where board height and footprint are critical considerations. Its male contact gender and board-to-board connector system are ideal for modular electronic or laboratory testing setups, prototyping, and finished products requiring secure and easily replaceable PCB connections.

The header operates reliably from -55°C up to 125°C, supporting industrial environments, electronics manufacturing, instrumentation, and laboratory applications. Its compliance with RoHS standards further increases the suitability for modern industrial and commercial uses.

Practical applications include embedded systems, sensor interfaces, control units, instrumentation equipment, and any circuit needing a robust, shrouded, right-angle PCB header. Installation is simplified by the solder termination, and the header's shrouded features help users achieve clean, secure, and repeatable connections even with automated or high-volume production.

Choose Samtec for quality and durability in electronic connectors. Browse EnvMart’s full selection of PCB Headers and board-to-board connectors for industrial, laboratory, manufacturing, and electronics design use cases.
