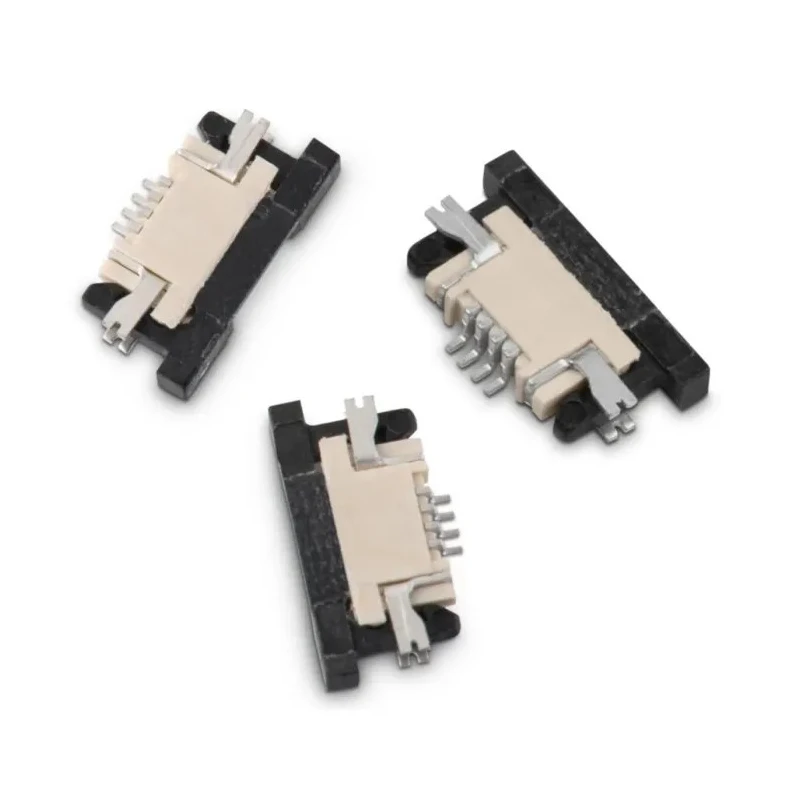

Wurth Elektronik WR-FPC 0.5 mm Pitch 16 Way Horizontal Female FPC Connector Surface Mount 687116183722
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
| Solder Tabs | Brass |
Key Features
- Provides zero insertion force for reliable and secure FPC connection.
- Features a 0.5 mm pitch for high-density circuit applications.
- Equipped with a flip lock actuator for quick and firm retention on PCB.
- Low profile design with only 1.2 mm height, ideal for miniaturized systems.
- Surface mount configuration and horizontal orientation for versatile PCB layouts.
- Tin over nickel plated phosphor bronze contacts support up to 400 mA current.
- Designed with brass solder tabs for secure attachment to PCB.
- Suitable for displays, touch panels, consumer, industrial, and medical electronics.
Product Description
Wurth Elektronik 687116183722 WR-FPC 0.5 mm Pitch 16 Way Female FPC Connector is a surface mount device designed for high-density and miniaturized electronic applications. Its zero insertion force (ZIF) mechanism allows effortless insertion and removal of flexible printed circuits (FPC), ensuring a secure electrical and mechanical connection. The connector utilizes a rotating flip lock actuator to firmly retain the FPC, making installation and servicing both efficient and reliable.
With a fine 0.5 mm pitch and 16-way configuration, this low-profile connector (only 1.2 mm tall) is optimized for compact device designs such as displays, touch panels, tablets, cameras, mobile phones, and medical equipment. Phosphor bronze contacts plated with tin over nickel provide robust electrical performance, supporting up to 400 mA and 50 V AC operation.
The surface mount type and horizontal orientation enable flexible design and placement on PCBs, while the one-row configuration ensures streamlined signal routing. Brass solder tabs reinforce mechanical retention and enhance soldering reliability, especially in demanding industrial environments.
The WR-FPC series is compatible with both top and bottom contact styles, with this model featuring bottom contacts. Supported temperatures range from -25°C to 85°C, accommodating a wide variety of usage scenarios. The locking mechanism prevents accidental disconnection under vibration or movement.
Designed primarily for use in consumer electronics, industrial machinery, and medical devices, the Wurth WR-FPC 16-way connector is also a suitable choice for high-density circuit boards requiring durable interfaces. Its low profile, reliable retention, and compliance with RoHS directives make it a robust solution for modern PCBs.
Discover more PCB Connectors and FPC solutions from Wurth Elektronik in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.5 mm, making it suitable for high-density circuit applications.
It supports a maximum current of 400 mA, which is suitable for various electronic applications.
The voltage rating for this connector is 50V AC, allowing it to be used in a variety of electronic circuits.
This model features a surface mount configuration, which facilitates easy installation on PCBs.
It operates within a temperature range of -25°C to 85°C, accommodating various environmental conditions.
This connector has 16 contacts, allowing for multiple signal connections in compact designs.
The housing is made from liquid crystal polymer, and the contacts are phosphor bronze with tin over nickel plating.
It has a horizontal orientation, which provides flexibility in PCB layout designs.
It features a flip lock actuator that ensures a firm retention of the flexible printed circuit.
This connector utilizes a zero insertion force (ZIF) mechanism, allowing for easy insertion and removal of FPCs.
It is designed for use in displays, touch panels, consumer electronics, industrial machinery, and medical devices.
