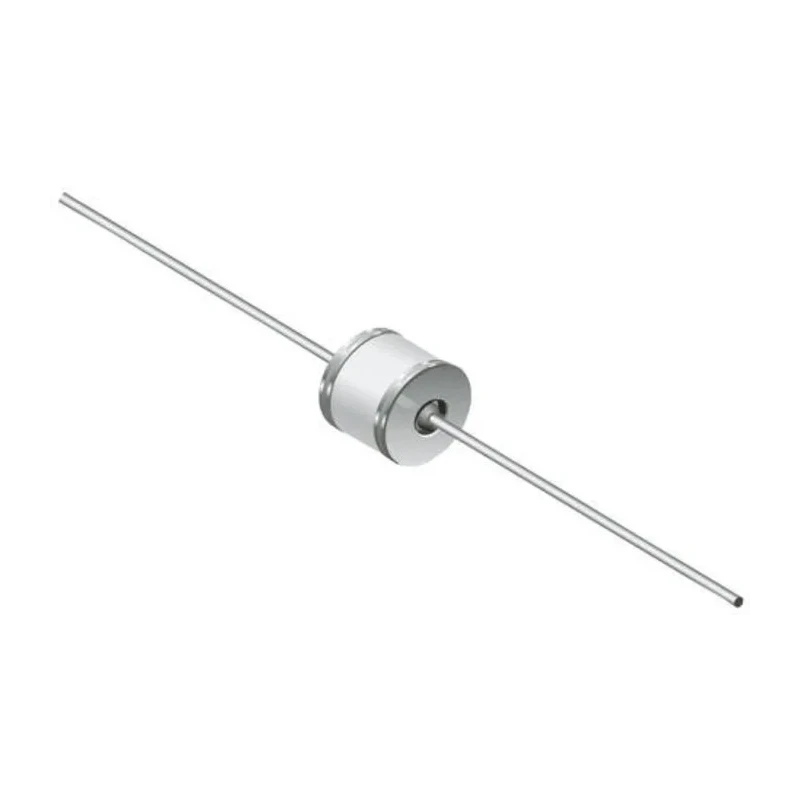

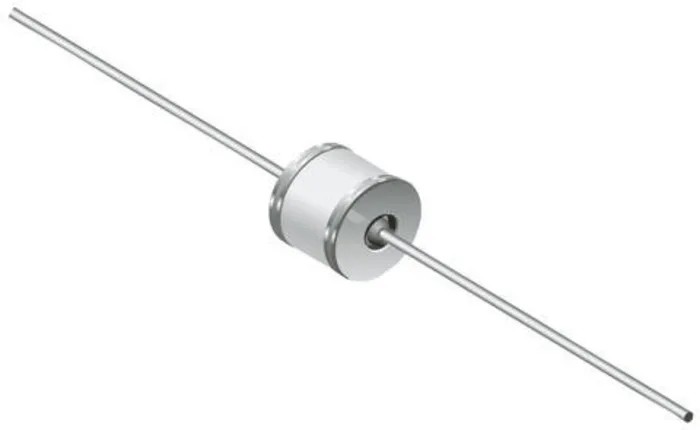

Bourns Through Hole Gas Discharge Tube 25 kA Surge Current 230 V DC 1 pF Capacitance 2027-23-BLF

Bourns 2027-23-BLF through hole gas discharge tube is engineered for high surge current capability and precise voltage suppression in electronic circuits. Rated for a maximum surge current of 25 kA and DC spark over voltage of 230 V, it effectively protects sensitive components from voltage spikes and transient events.

The device features an impulse spark over voltage of 675 V, ensuring reliable transient voltage clamping during surges. With low capacitance of 1 pF, it maintains signal integrity by minimizing capacitive loading effects on circuits.

Compact in size, measuring 9.5 mm in length, 8 mm in height, and 6 mm in depth, this gas discharge tube is suitable for through hole mounting on printed circuit boards, providing robust mechanical and electrical connection.

It operates reliably across a wide temperature range from -55°C to 155°C, making it ideal for use in demanding industrial, telecommunications, commercial, automotive, and aircraft electronics environments. Its compliance with multiple international standards, including RoHS, Telcordia GR 1361, UL, IEC 60068-1, ITU-T CCITT K.12, IEEE C62.31, and RUS PE-80, attests to its quality and suitability for global applications.

This Gas Discharge Tube is part of the Bourns 2027 series, renowned for their high performance in transient surge protection. It is commonly used in systems requiring reliable electrical safety and circuit protection against high voltage surges.

Maximum surge current rating is 25 kA for robust transient voltage suppression. DC spark over voltage of 230 V for precise protection thresholds. Impulse spark over voltage at 675 V provides enhanced transient immunity. Compact dimensions for easy PCB integration and secure through hole mounting.

Wide operating temperature range from -55°C to 155°C for harsh environments. Low capacitance minimizes interference in sensitive electronic circuits. Compliance with international standards ensures quality and reliability.
