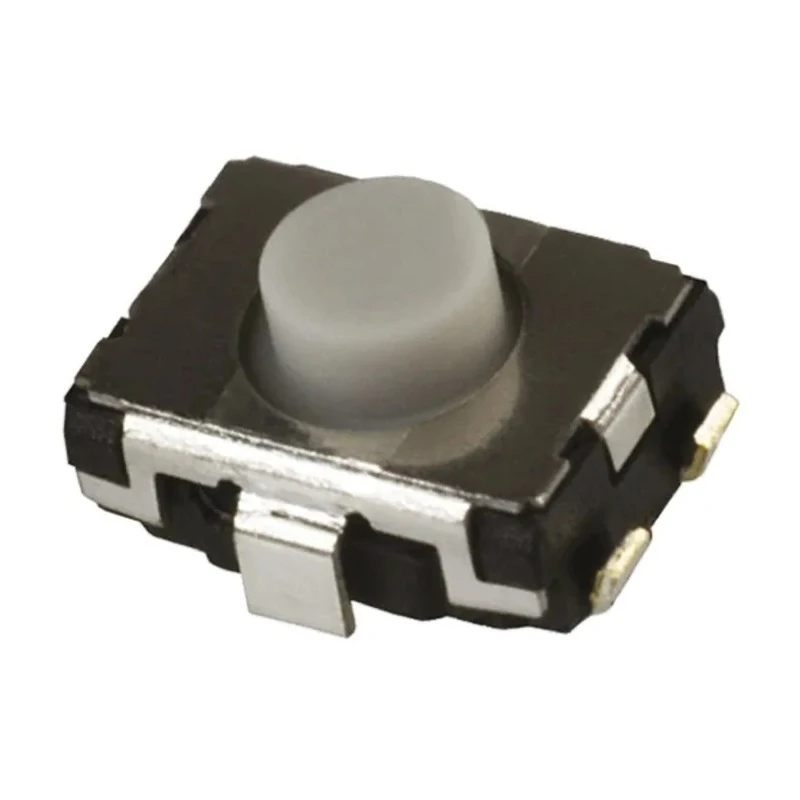

Panasonic Grey Tactile Switch Push Plate 2.5 mm SPST 20mA 15 V dc Surface EVQP2D02Q

Free Delivery in India | Lowest Global Shipping Charges

Panasonic Grey Tactile Switch Push Plate 2.5 mm SPST 20mA 15 V dc Surface EVQP2D02Q

Name: Panasonic Grey Tactile Switch Push Plate 2.5 mm SPST 20mA 15 V dc Surface EVQP2D02Q
Brand: Panasonic
SKU: 427129
Price: 40.72 INR
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	2.5mm
Length	4.7mm
Model	EVQP2D02Q
Width	3.5mm
Mount Type	Surface
Series	EVQP2
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Grey
Actuator Length	2.5mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Switch Contact Current	20mA
Operating Force	3.5N
Mechanical Life	500000Cycles

Key Features

The switch features a grey push plate actuator with a 2.5 mm length.
It is configured as a Single Pole Single Throw (SPST) switch with a momentary operation style.
The terminal is surface mount type suitable for PCB assembly.
The switch is designed for a contact current rating of 20mA and a contact voltage of 15 V dc.
It operates within a temperature range of -40°C to 85°C.
The operating force required for actuation is 3.5 newtons.
This tactile switch offers a mechanical life of 500,000 cycles for high durability.
The compact dimensions include 4.7 mm length, 3.5 mm width, and 2.5 mm height.

Product Description

Panasonic EVQP2D02Q tactile switch is a high-quality surface mount momentary push plate switch with a 2.5 mm actuator length, designed for use in electronics and electrical applications requiring precise and reliable momentary contact.

This grey tactile switch operates with a Single Pole Single Throw (SPST) contact configuration and is rated for a contact current of 20mA at 15 V dc, making it ideal for low power signal control circuits.

The switch's compact form factor of 4.7 mm by 3.5 mm with a height of 2.5 mm allows integration into densely populated PCBs within consumer electronics, industrial equipment, and automation devices.

Designed to operate over a broad temperature range from -40°C to 85°C, it ensures functionality in varied environments including industrial, manufacturing, and laboratory settings.

With an operating force of 3.5N and an assured mechanical life rating of 500,000 cycles, it delivers a tactile snap-action feel, low contact resistance, and small bouncing noise for reliable and durable performance.

Compliance with RoHS standards confirms it is environmentally friendly and free from hazardous substances.

Manufactured in Japan, this Panasonic EVQP2D02Q switch is suitable for applications including industrial control panels, instrumentation, consumer electronic devices, and automated systems.

The switch features a grey push plate actuator with a 2.5 mm length. The SPST contact configuration provides normally open contacts. It has surface mounting terminals for ease of PCB soldering. Operates on a contact voltage of 15 V dc and switch contact current of 20mA.

Operating temperature range from -40°C to 85°C ensures versatility. Mechanical life of 500,000 cycles guarantees long-term reliability. Operating force is 3.5 newtons for an assured tactile feedback. Compact dimensions of 4.7 mm length and 3.5 mm width facilitate compact assembly.

RoHS compliant for environmental safety. Manufactured in Japan ensuring high-quality standards. Explore the Electronics & Electricals category at EnvMart for an extensive range of Tactile Switches and related components to meet all your industrial and manufacturing needs.
