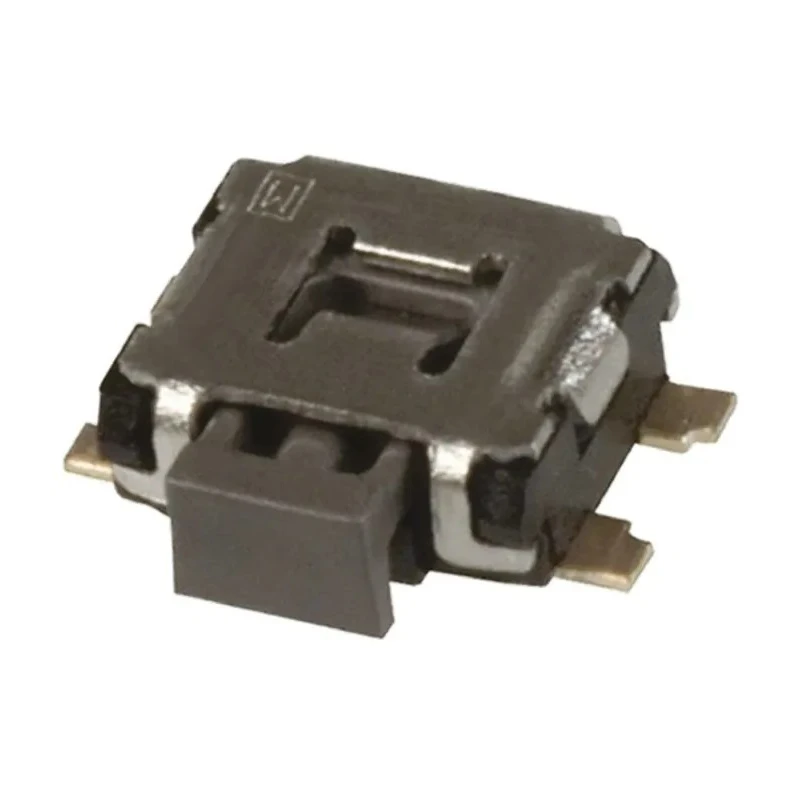

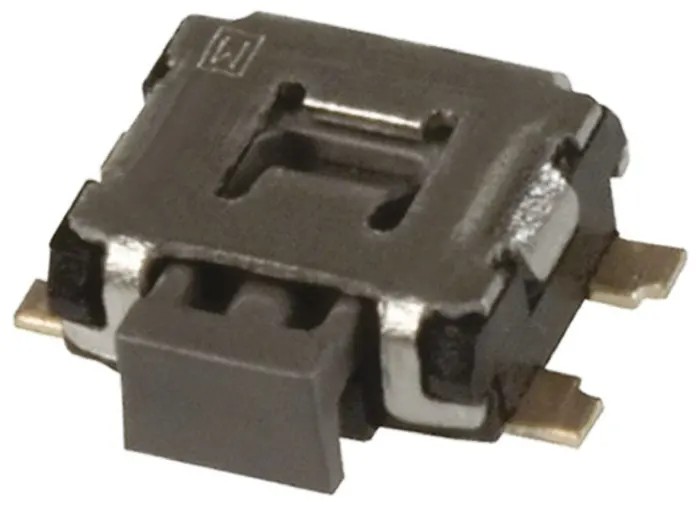

Panasonic Black Tactile Switch Push Plate, 1.35 mm Height, SPST 50mA 12 V DC Surface Mount EVQP7J01K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 1.35mm |
| Length | 3.5mm |
| Model | EVQP7J01K |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | EVQP7 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 1.35mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 50mA |
| Operating Force | 1.6N |
| Mechanical Life | 100000Cycles |
Key Features
- This tactile switch has a momentary switch operation for precise control.
- The actuator is black with a 1.35 mm length for compact mounting.
- Surface mount terminal type ensures easy PCB integration.
- Operating temperature range spans from -20°C to 70°C.
- Mechanical life of 100,000 cycles guarantees durability.
- The switch contact current is rated at 50mA with a 12 V DC voltage rating.
- Operating force required is 1.6 N providing a tactile click feel.
- Compliance with RoHS standards ensures environmental safety.
Product Description
Panasonic EVQP7J01K is a black tactile switch equipped with a push plate actuator, height measuring 1.35 mm. This SPST (Single Pole Single Throw) momentary switch supports a maximum contact current of 50 mA at 12 V DC and is designed for surface mounting on printed circuit boards.
Featuring a black actuator color and a compact form factor with dimensions of 3.5 mm length and 2.9 mm width, this tactile switch operates reliably within a temperature range of -20°C to 70°C and offers an operating force of 1.6 N for a tactile and assuring click feedback.
Designed for applications requiring small current switching with high reliability, this switch offers a mechanical life of 100,000 cycles, making it suitable for residential, commercial, and industrial electronics requiring user input through keyboards, keypads, and other control interfaces.
Compliant with RoHS standards, the Panasonic EVQP7J01K switch ensures environmental friendliness. Its SMT surface mount design allows easy, efficient integration into dense circuit assemblies commonly found in consumer electronics, automation systems, and instrumentation.
This Tactile Switch features momentary operation for transient switching applications. Single pole single throw (SPST) contact configuration provides straightforward on/off control. The black push plate actuator enhances user tactile feedback and durability.
Compact dimensions allow use in space-constrained electronic devices. Wide operating temperature range supports diverse environments. Long mechanical life ensures extended usability in repetitive applications. Low contact resistance and high switching reliability enhance device performance.
Surface mount terminal type facilitates automated PCB assembly. Suitable for use in industrial automation, electronic instruments, and control panels. Explore EnvMart's Electronics & Electricals category for more high-quality switches and related components to enhance your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The height of this tactile switch is 1.35 mm.
The maximum contact current for the EVQP7J01K is rated at 50 mA.
It operates within a temperature range of -20°C to 70°C.
This model features a Single Pole Single Throw (SPST) contact configuration.
The operating force required is 1.6 N, providing tactile feedback.
The mechanical life of this switch is rated for 100,000 cycles.
This switch is designed for surface mounting on printed circuit boards.
The actuator style is a push plate, which enhances user feedback.
It complies with RoHS standards, ensuring environmental safety.
The dimensions are 3.5 mm in length and 2.9 mm in width.
It is suitable for applications requiring small current switching, such as keyboards and control panels.
The actuator color is black, which contributes to its tactile feedback.
