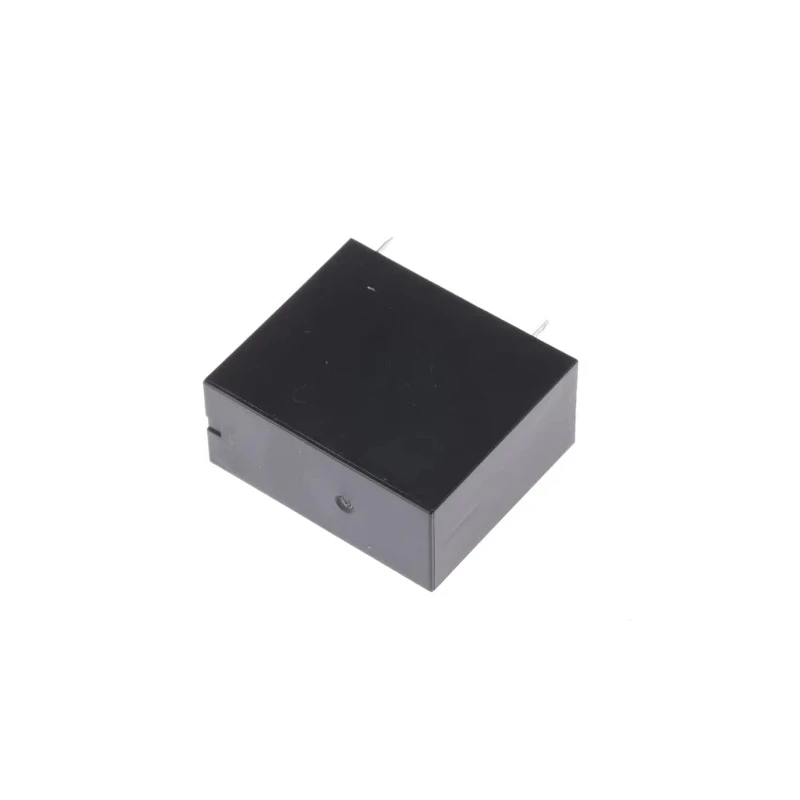

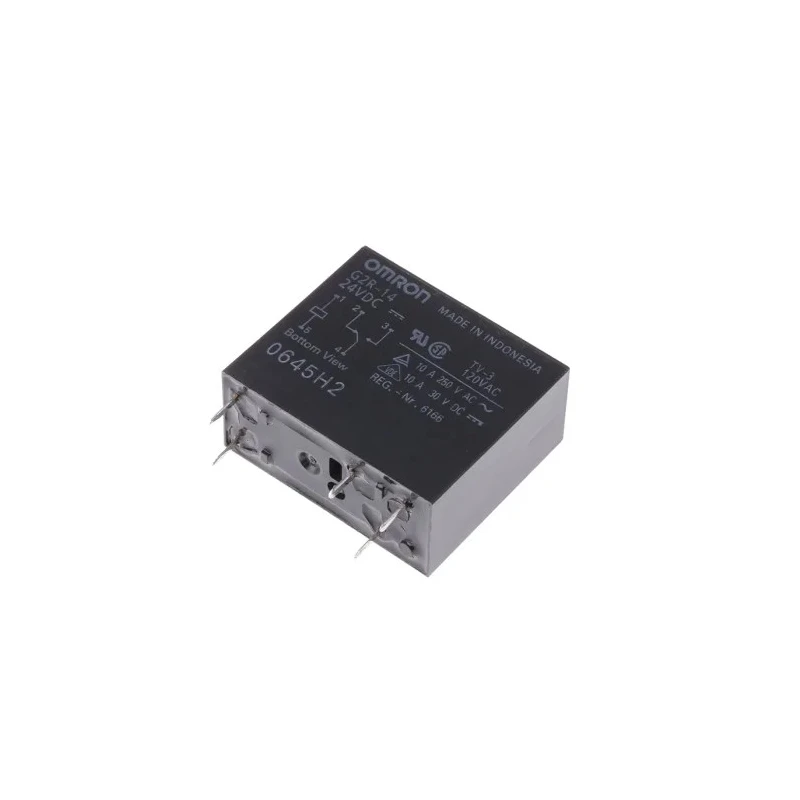

Omron General Purpose PCB Power Relay 24V DC Coil 10A Switching SPDT G2R-14 DC24

Omron G2R-14 DC24 is a general purpose PCB power relay featuring a 24V DC coil and a maximum switching current of 10A. This relay is engineered for domestic and commercial applications requiring reliable switching performance on printed circuit boards.

The relay incorporates a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control. It is designed to handle AC voltages up to 380V and DC voltages up to 125V, meeting a range of electrical requirements.

Operable within a wide temperature range from -40°C minimum to 70°C maximum, the relay supports demanding environmental conditions. The coil exhibits a resistance of 1.1 kΩ and consumes 0.9 watts power, optimizing energy efficiency.

Constructed with durable silver alloy contacts, this relay ensures consistent electrical connectivity and long-term reliability. The unit’s compact form factor, measuring 25.5mm in height, 13.5mm in width, and 29mm in length, allows for easy installation in space-constrained PCB assemblies.

This Omron G2R Series relay complies with multiple industry standards, including UL508, CSA22.2, EN 61810-1, SEV, and SEMKO, confirming its quality and safety certifications relevant for industrial and commercial use.

Ideal for applications in automation, electrical control systems, measurement equipment, and various industrial controls, the Omron G2R-14 DC24 relay enhances production efficiency and operational reliability. This relay is commonly used in manufacturing, HVAC systems, and laboratory equipment requiring precise switching.

Equipped with SPDT contact configuration for versatile electrical switching tasks. Supports coil voltage of 24V DC and switching current of 10A for general purpose power control. Wide operating temperature range suitable for industrial environments.

Compact dimensions facilitate PCB mounting in constrained spaces. Constructed with silver alloy contacts for durable and efficient conductivity. Certified under UL, CSA, RoHS, and VDE standards for quality assurance. Explore the Omron G2R-14 DC24 and other Power Relays on EnvMart for reliable, high-quality electrical components to meet your industrial and commercial automation needs.
