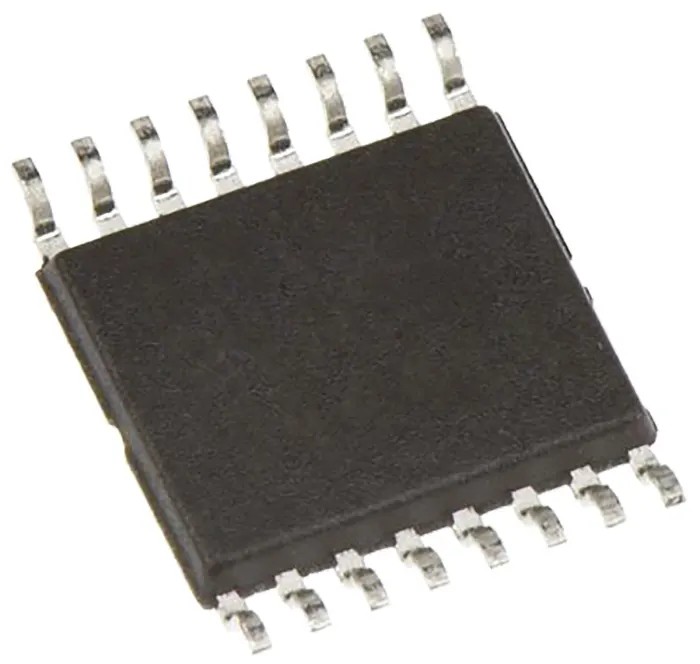

Texas Instruments 4-Channel CMOS Line Receiver, 3 State, 16-Pin TSSOP AM26C32IPW

Texas Instruments AM26C32IPW is a 4-channel line receiver integrated circuit designed with CMOS logic family technology. This device offers three-state output functionality, making it ideal for differential input signal applications such as RS-422 communication protocols. The 16-pin TSSOP surface mount package provides a compact footprint with dimensions of 5.1 mm length, 6.6 mm width, and 1.2 mm height, facilitating high-density PCB designs.

This line receiver supports a supply voltage range from 4.5 to 5.5 volts and operates reliably across a broad temperature range of -40°C to 85°C, suitable for industrial environments. With a maximum propagation delay time of 27 ns and a supply current of 15 mA, it balances speed and power efficiency. The output stage can source and sink currents up to 6 mA, enabling robust interfacing capabilities.

The AM26C32 series is commonly used in industrial, telecommunications, and data communication equipment where differential signaling and noise rejection are essential. It is surface mount compatible for automated assembly and designed for use in general-purpose line receiver applications without automotive-specific certification.

Key specifications such as the 4 channels, CMOS logic function, and 3-state outputs ensure adaptability and reliability in multi-channel signal conditioning tasks. This device is RoHS compliant, ensuring adherence to environmental standards.

Utilizes CMOS logic family for low power operation. Features a 3-state output type suitable for bus-oriented applications. Supports a voltage supply range from 4.5 V to 5.5 V for stable operation. Surface mount with a TSSOP package and 16 pins for compact integration.

Operates reliably from -40°C to 85°C temperature range. Low supply current consumption of 15 mA maximizes energy efficiency. Maximum propagation delay time of 27 ns ensures fast signal processing. Designed for RS-422 line receiver applications with four channels.

16-pin TSSOP dimensions approximately 5.1 mm length, 6.6 mm width, and 1.2 mm height. Maximum high level output current of -6 mA and low level output current of 6 mA.

This Texas Instruments AM26C32IPW is well suited for industrial electronics applications requiring efficient line reception and robust data communications. Browse EnvMart's range of semiconductor Line Interface ICs for related products.
