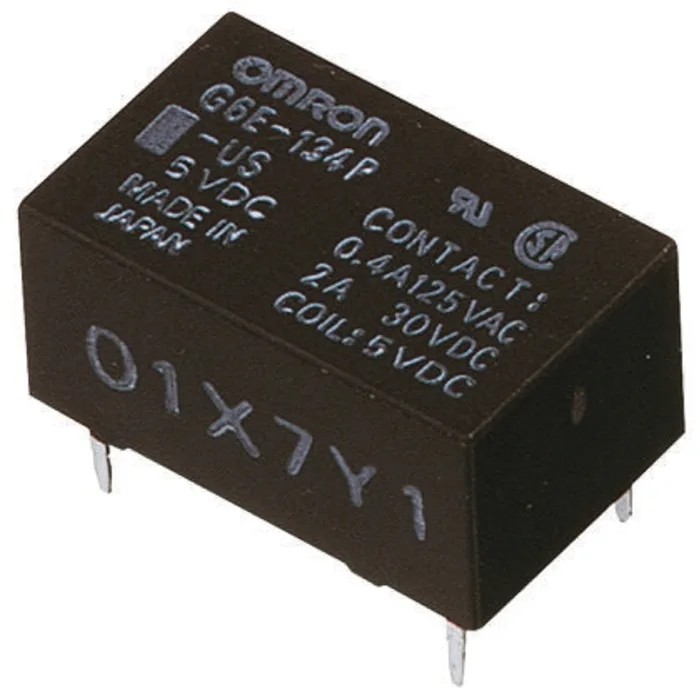

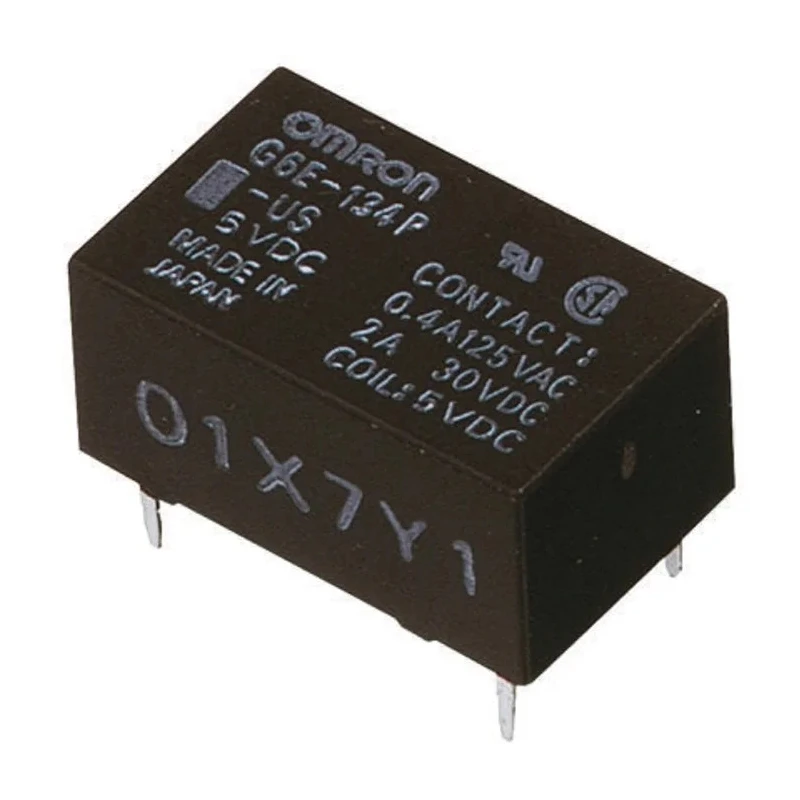

Omron PCB Power Relay 24V dc Coil 3A Switching Current SPDT G6E-134PL-ST-US 24DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8.4mm |
| Length | 16mm |
| Model | G6E-134PL-ST-US 24DC |
| Width | 9.9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | CSA, RoHS, UL |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Omron PCB Mount Non-Latching Relay, 24V dc Coil, 3A Switching Current, SPDTBrand | Omron |
Key Features
- This relay uses a solder terminal type for PCB mounting.
- It belongs to the G6E series known for high sensitivity and fully sealed construction.
- The switching AC voltage rating is 250V ac and DC voltage rating is 220V dc.
- Operating temperature ranges from -40°C to 70°C, suitable for harsh environments.
- Gold plated contacts ensure reliable electrical connection and longevity.
- The coil resistance is 1.4kΩ with a coil power rating of 200mW.
- Compact dimensions with length 16mm, width 9.9mm, and height 8.4mm optimize PCB space.
- Designed for high impulse withstand voltage conforming to FCC Part 68 standards.
Product Description
Omron G6E-134PL-ST-US 24DC PCB Power Relay is a high-quality, subminiature power relay designed for printed circuit board applications. It features a 24V dc coil and supports a switching current of 3A with a single-pole double-throw (SPDT) contact configuration, making it versatile for various electrical control circuits.
This relay is part of the G6E series, which is noted for its fully sealed construction. This design allows for the relay to withstand immersion cleaning directly on PCBs, improving manufacturing efficiency and reliability. The gold plated contacts provide excellent conductivity and corrosion resistance for long-term performance.
With an AC switching voltage of up to 250V and DC switching voltage of 220V, this relay accommodates a wide range of industrial power requirements. The coil resistance of 1.4kΩ and low coil power consumption of 200mW make it energy efficient. Its compact dimensions (16mm length, 9.9mm width, 8.4mm height) help save space on circuit boards.
The operating temperature range from -40°C to 70°C ensures dependable function even in demanding environmental conditions. This relay complies with standards including CSA, RoHS, and UL, reflecting its reliability and safety in industrial applications.
Typical uses include automation systems, electrical appliances, control equipment, and other industrial electronics where precise and durable switching is critical. The product's fully sealed design and high sensitivity performance provide superior operation in factory environments.
This relay uses solder terminals for easy PCB mounting. Meets FCC Part 68 impulse withstand voltage requirements for signal integrity. Gold plated contacts enhance electrical and mechanical reliability. Designed for industrial, laboratory, manufacturing, and automation applications.
Compact footprint allows efficient PCB layout and integration.
Choose the Omron G6E-134PL-ST-US 24DC PCB Power Relay for dependable switching performance in your next industrial control or automation project. Browse related Power Relays and contactors at EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current of this relay is 3A.
The dimensions of the relay are 16mm in length, 9.9mm in width, and 8.4mm in height.
The coil voltage for this relay is 24V dc.
The operating temperature range is from -40°C to 70°C.
This relay features a single-pole double-throw (SPDT) contact configuration.
The coil resistance is 1.4kΩ.
The maximum switching voltage is 250V ac for AC and 220V dc for DC.
The contacts are made of gold plated material, enhancing conductivity and corrosion resistance.
This relay uses solder terminals for PCB mounting.
This relay complies with CSA, RoHS, and UL standards.
Typical applications include automation systems, electrical appliances, and control equipment.
The coil power consumption is 200mW.
