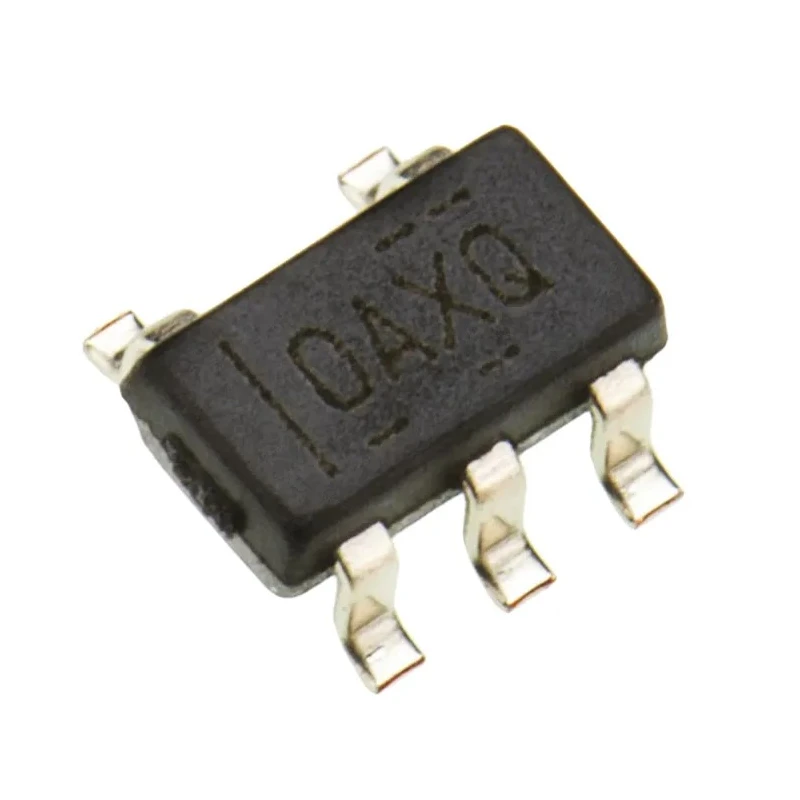

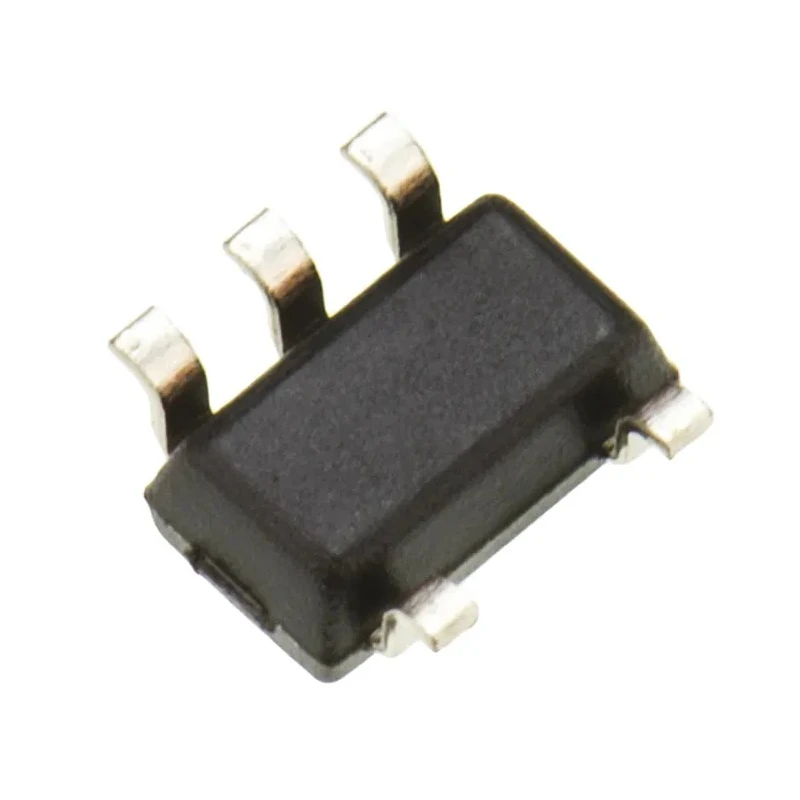

Texas Instruments Operational Amplifier, 350 kHz Gain Bandwidth, 5-Pin SOT-23 Package OPA333AIDBVT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Operational Amplifier, 350 kHz Gain Bandwidth, 5-Pin SOT-23 Package OPA333AIDBVT

Name: Texas Instruments Operational Amplifier, 350 kHz Gain Bandwidth, 5-Pin SOT-23 Package OPA333AIDBVT
Brand: Texas Instruments
SKU: 425159
Price: 3.37 USD
Availability: InStock



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.15mm
Length	2.9mm
Model	OPA333AIDBVT
Width	1.6mm
Mount Type	Surface
Series	OPA333
Output Current	100mA
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	350kHz
Input Bias Current	±200 pA
Slew Rate	0.16V/μs
Input Offset Current	±400 pA

Key Features

Operates with a supply voltage range from 3V to a maximum of 5.5V.
Features a low input offset voltage of only 10 μV for high precision.
Has a slew rate of 0.16 V/μs ensuring smooth signal transitions.
Suitable for operating temperatures ranging from -40°C to 125°C.
Compliance with RoHS standards and automotive-grade AEC-Q100 qualification.
Single-channel operation with 5 pins allowing compact circuit designs.
Output current capability up to 100 mA supporting various load requirements.
Extremely low input bias current of ±200 pA and offset current of ±400 pA for low leakage applications.

Product Description

Texas Instruments OPA333AIDBVT is a precision operational amplifier designed to deliver stable performance with a gain bandwidth product of 350 kHz housed in a compact 5-Pin SOT-23 surface mount package. Operating from a low supply voltage starting at 3V up to a maximum of 5.5V, the amplifier provides excellent input offset voltage of 10 μV and low input bias currents, making it ideal for high accuracy instrumentation applications.

The device supports single-channel operation, fulfilling requirements for compact and space-constrained PCB layouts with a small footprint of 2.9 mm by 1.6 mm with a height of 1.15 mm. It offers a slew rate of 0.16 V/μs for efficient signal responsiveness and delivers output currents up to 100 mA to drive diverse loads.

Certified to meet RoHS compliance and automotive standard AEC-Q100, this operational amplifier can reliably perform within an extended temperature range from -40°C to 125°C. Its ultra-low input bias and offset currents minimize leakage, suitable for sensitive measurements in industrial control, automotive electronics, and laboratory instrumentation.

This zero-drift amplifier from the OPA333 series excels in demanding environments requiring precision, stability, and small form factor integration. Operating voltage range from 3 to 5.5 V. Single channel in a small 5-pin surface mount package.

Gain bandwidth of 350 kHz with low offset voltage. High-temperature operation and automotive qualification. Low input bias and offset currents ensure signal integrity.

Recommended for Industrial Automation, Automotive Electronics, Laboratory Instrumentation, and Embedded Systems development. Explore more high-quality Operational Amplifiers and semiconductors on EnvMart.
