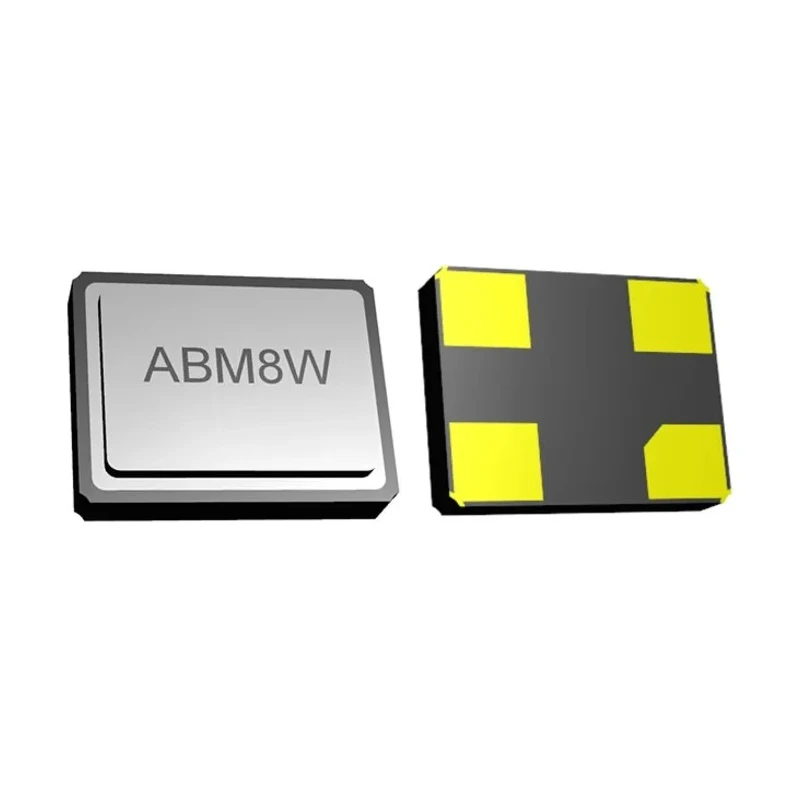

Abracon 32 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width ABM8W-32.0000MHZ-8-B1U-T3

Free Delivery in India | Lowest Global Shipping Charges

Abracon 32 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width ABM8W-32.0000MHZ-8-B1U-T3

Name: Abracon 32 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width ABM8W-32.0000MHZ-8-B1U-T3
Brand: Abracon
SKU: 424173
Price: 0.58 USD
Availability: InStock



Category Crystal Unit Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.75mm
Length	3.2mm
Model	ABM8W-32.0000MHZ-8-B1U-T3
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ABM8W
Maximum Operating Temperature	125°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	32MHz
Load Capacitance	4pF
Series Resistance	40Ω

Key Features

Features a 4-pin surface mount design for compact PCB integration.
Has dimensions of 3.2 mm length, 2.5 mm width, and 0.75 mm maximum height.
Operates reliably within temperature range of -40°C to 125°C.
Load capacitance is 4 pF with a series resistance of 40 Ω.
RoHS compliant and lead free, ensuring environmental and health safety.
Seam sealed to provide long-term stability and reliability in IoT and wearable devices.
Ideal for Bluetooth, BLE, wireless modules, and ultra-low power MCU applications.
Packaged in tape & reel format ready for automated production insertion.

Product Description

Abracon ABM8W-32.0000MHZ-8-B1U-T3 is a high precision 32 MHz crystal unit designed for surface mount applications in electronics. It features a compact 4-pin package with dimensions measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height. With a frequency tolerance of ±10 ppm and stability also at ±10 ppm, this crystal ensures dependable frequency control critical for timing-sensitive devices.

Certified RoHS compliant and lead free, the crystal is manufactured with seam sealing to enhance long-term reliability, making it suitable for a wide range of modern applications including wearables, Internet of Things (IoT) devices, Bluetooth and Bluetooth Low Energy (BLE) wireless modules, as well as machine-to-machine (M2M) communication and ultra-low power microcontroller units (MCUs).

The crystal operates efficiently across a temperature range from -40°C to 125°C, with a typical load capacitance of 4 pF and series resistance of 40 Ω to maintain signal integrity. Its surface mount design and tape & reel packaging enable seamless automated PCB assembly processes, improving production efficiency for manufacturers.

4-pin surface mount package ensures compact footprint on PCB. Dimensions: 3.2 mm length, 2.5 mm width, 0.75 mm height maximize space savings. Frequency tolerance and stability of ±10 ppm provide precise timing. Temperature operating range from -40°C to 125°C supports harsh environments.

Lead free and RoHS compliant for environmental safety. Seam sealed package extends product longevity and reliability. Ideal for wearable technology, IoT, BLE modules, and low power MCUs. Tape & reel packaging suited for automated manufacturing.

This crystal unit is engineered for industrial, laboratory, and commercial electronic devices requiring stable frequency control. Its low profile and robust construction deliver long-term performance in a compact form factor. Browse EnvMart's selection of Crystal Units and electronic components for compatible parts and accessories.
