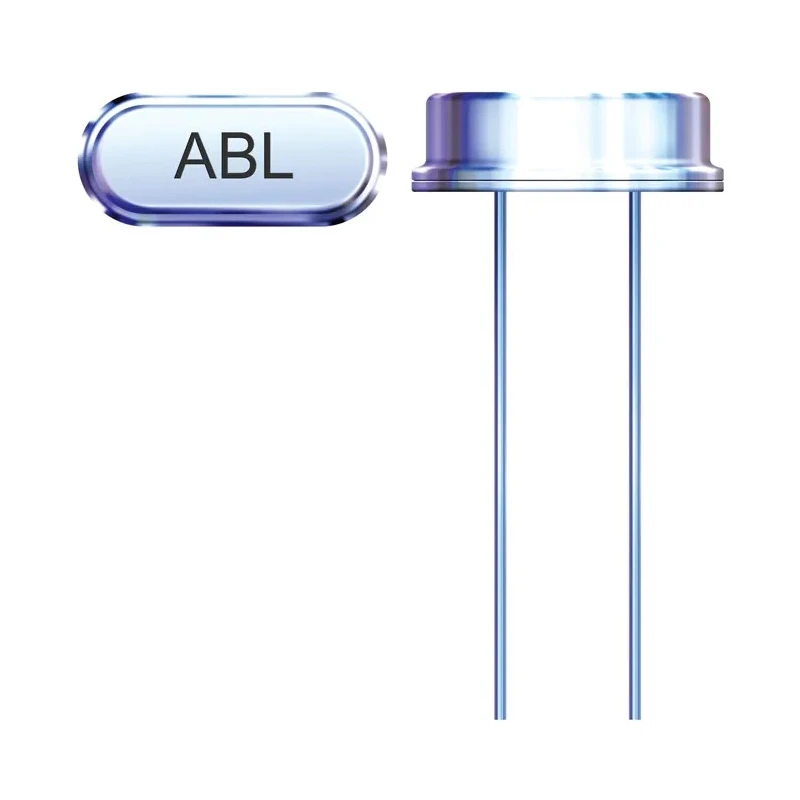

Abracon 3.6864 MHz Crystal Unit ±20 ppm HC-49-US 2-Pin 11.5 mm x 5 mm ABL-3.6864MHZ-B2

Abracon ABL-3.6864MHZ-B2 is a 3.6864 MHz Crystal Unit designed with a HC-49-US metal package and 2-pin configuration for through-hole mounting. This crystal offers a high level of frequency stability with a tolerance of ±20 ppm, making it suitable for precise timing applications in electronics and communication equipment.

The unit operates within a temperature range of 0°C to 70°C, ensuring reliability under typical environmental conditions. It features an 18 pF load capacitance and a series resistance of 180 Ω, optimizing it for microprocessor clock oscillators and high-precision TCXO frequency control circuits.

Produced with a lead-free construction compliant with RoHS standards, the crystal supports environmentally conscious manufacturing and use. Its compact size (11.5 mm length and 5 mm width) allows easy integration into various electronic circuit boards through through-hole mounting.

Ideal applications include home electronics devices, computer communication systems, modems, and microprocessor-controlled equipment requiring accurate frequency generation. The robust metal package provides long-lasting performance and protection against environmental influences.

Standard frequency rating of 3.6864 MHz for timing accuracy. Through-hole mount with 2 pins inside a HC-49-US package. Load capacitance specification at 18 pF for circuit compatibility. Frequency tolerance set at ±20 ppm ensures stable oscillation.

Operating temperature range from 0°C to 70°C for reliable use. Series resistance of 180 Ω to maintain signal integrity. RoHS compliant and lead-free for environmental safety. Compact form factor of 11.5 mm length by 5 mm width.

Suitable for microprocessor clocking, telecom, and home electronics. Explore more Crystal Units and related electronic components in the Electronics Components category at EnvMart for your industrial and commercial applications.
