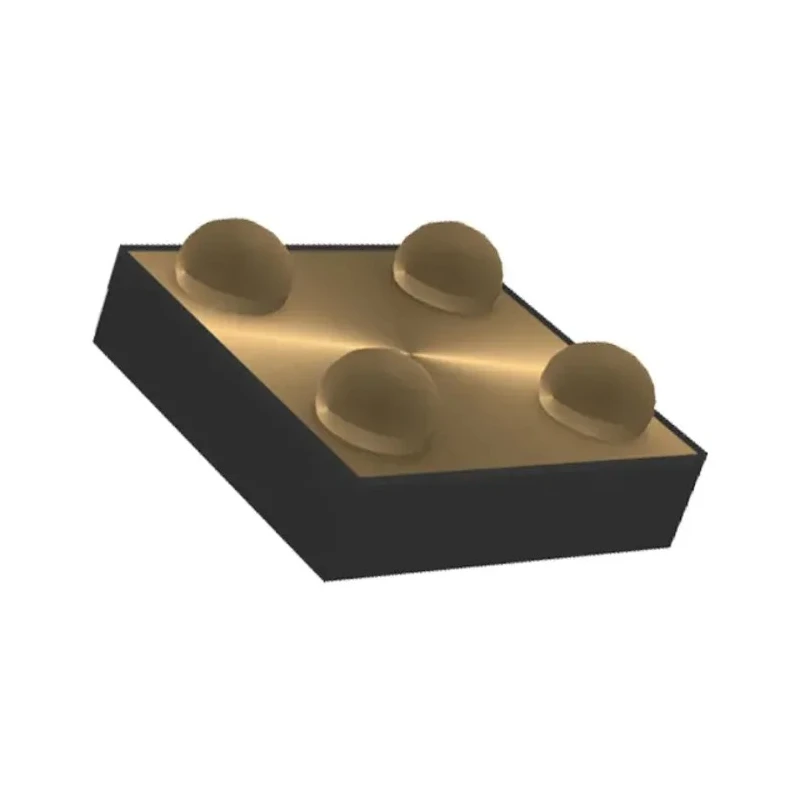

STMicroelectronics 8 kB Serial EEPROM 900 ns 4-Pin WLCSP Serial-I2C M24C08-FCT6TP/T

STMicroelectronics M24C08-FCT6TP/T is an 8 kB Serial EEPROM designed for industrial, automotive, and electronic applications requiring dependable non-volatile memory. It features a 4-pin WLCSP surface-mount package, making it ideal for compact PCB layouts.

This EEPROM operates with a Serial-I2C interface supporting clock frequencies up to 400 kHz, allowing fast data transfers. The memory array is organized as 1 K x 8 bits, providing 1 Kbyte of memory with 16 byte page size for efficient write operations.

It operates with a wide supply voltage range from 1.6 V to 5.5 V, covering both limited and full temperature ranges (-40°C to 85°C), ensuring reliable operation under harsh environmental conditions.

The device provides rapid access times with a maximum random access time of 900 ns and supports byte writes and page writes within 5 ms. Data retention is guaranteed for 200 years, ensuring long-lasting storage of critical information.

Key features include automotive-standard AEC-Q100 qualification and full memory array write protection for enhanced data security. Dimensions are compact at 700 μm length, 690 μm width, and 550 μm height, suitable for dense electronic designs.

8 kB memory with 1 K x 8 bit organization. Serial-I2C interface up to 400 kHz clock frequency. Operating voltage range: 1.6 V to 5.5 V. Operating temperature: -40°C to 85°C. Data retention up to 200 years. AEC-Q100 automotive compliant.

Compact 4-Pin WLCSP package. Write protection for full memory array.

This EEPROM is well suited for industrial automation, automotive electronics, telecommunications, and consumer electronics where reliable non-volatile memory is required. STMicroelectronics products are known for quality and industry compliance, making this part a trusted choice.
