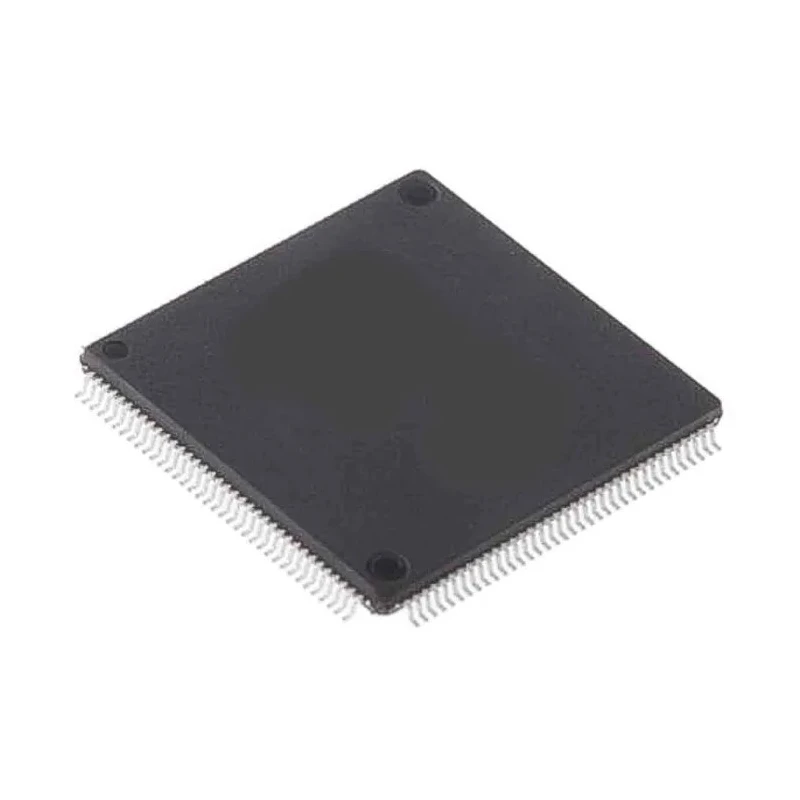

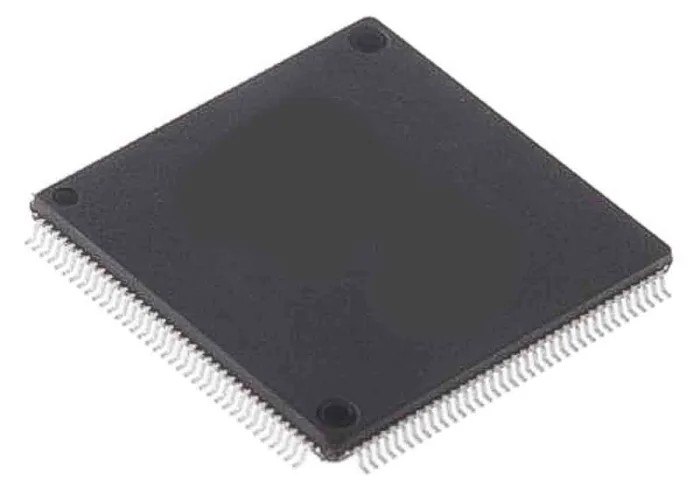

STMicroelectronics 32 bit ARM Cortex M7 Microcontroller 216 MHz 512kB FLASH 144-Pin LQFP STM32F746ZET6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 20.2mm |
| Model | STM32F746ZET6 |
| Width | 20.2mm |
| Mount Type | Surface |
| Series | STM32F7 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 320kB |
| Pin Count | 144 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 500mW |
| Minimum Supply Voltage | 1.7V |
| Device Core | ARM Cortex M7 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 216MHz |
| Number of Programmable I/Os | 168 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Features a 32-bit ARM Cortex M7 core operating at up to 216 MHz frequency.
- Includes 512kB of FLASH program memory and 320kB of RAM for efficient application performance.
- Packaged in a 144-pin LQFP surface mount type suitable for compact PCB designs.
- Compatible with advanced I/Os and extensive peripheral interfaces for versatile functionality.
- Operates within temperature range of -40°C to 85°C ensuring reliable industrial performance.
- Supports multiple timers, ADCs, DACs, and motor control PWM timers.
- Designed with DSP instructions and floating point unit for enhanced computation.
- Low power consumption with maximum power dissipation of 500mW.
Product Description
STMicroelectronics STM32F746ZET6 is a high-performance 32 bit ARM Cortex M7 microcontroller designed for industrial and embedded applications requiring real-time processing. Operating at a maximum frequency of 216 MHz, it integrates 512kB of FLASH memory and 320kB of SRAM including specialized TCM RAM for critical real-time tasks. Packaged in a 144-pin LQFP surface mount form factor with a compact 20.2mm x 20.2mm footprint and 1.45mm height, it is suitable for dense PCB layouts and complex embedded systems.
This device features a single precision Floating Point Unit and a memory protection unit enhancing compute capabilities and application security. It includes three 12-bit ADCs, two 12-bit DACs, and a suite of timers including motor control PWM timers, making it ideal for industrial automation, motor control, and signal processing applications.
Robust operating voltage from 1.7V to 3.6V, wide operating temperatures from -40°C to 85°C, and low maximum power dissipation of 500mW make it suitable for harsh environments and power sensitive designs.
The microcontroller supports a wide range of communication interfaces connected to multiple APB and AHB buses and a multi-layer AXI interconnect for high throughput memory access both internal and external.
Features a 32-bit ARM Cortex M7 core running up to 216 MHz. Equipped with 512kB FLASH and 320kB SRAM, including dedicated TCM memory. Package type: 144-Pin LQFP, surface mount suitable for compact designs. Supports multiple timers, DACs, ADCs, and advanced communication interfaces.
Designed for applications across industrial, automotive (non-automotive standard), and embedded systems. Operational temperature range from -40°C to +85°C ensuring field reliability. Low power dissipation at 500 mW suitable for energy efficient systems.
This microcontroller is ideal for embedded industrial control, real-time data processing, motor control, and digital signal processing tasks. Its combination of high clock speed, ample memory, and flexible peripheral set makes it a versatile component for modern microcontroller applications.
Explore further Microcontrollers and semiconductor components in the Electronics & Electricals category on EnvMart for diverse industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F746ZET6 microcontroller operates at a maximum frequency of 216 MHz.
It includes 512kB of FLASH program memory.
This microcontroller has a RAM size of 320kB.
The operating temperature range is from -40°C to 85°C.
It is packaged in a 144-pin LQFP surface mount type.
The STM32F746ZET6 features 24 ADCs, each with a 12-bit resolution.
It operates with a supply voltage range of 1.7V to 3.6V.
The height of this microcontroller is 1.45mm.
It includes multiple timers, including motor control PWM timers.
It is designed for applications in industrial automation, motor control, and digital signal processing.
This microcontroller has a pin count of 144.
It features a 32-bit ARM Cortex M7 core architecture.
