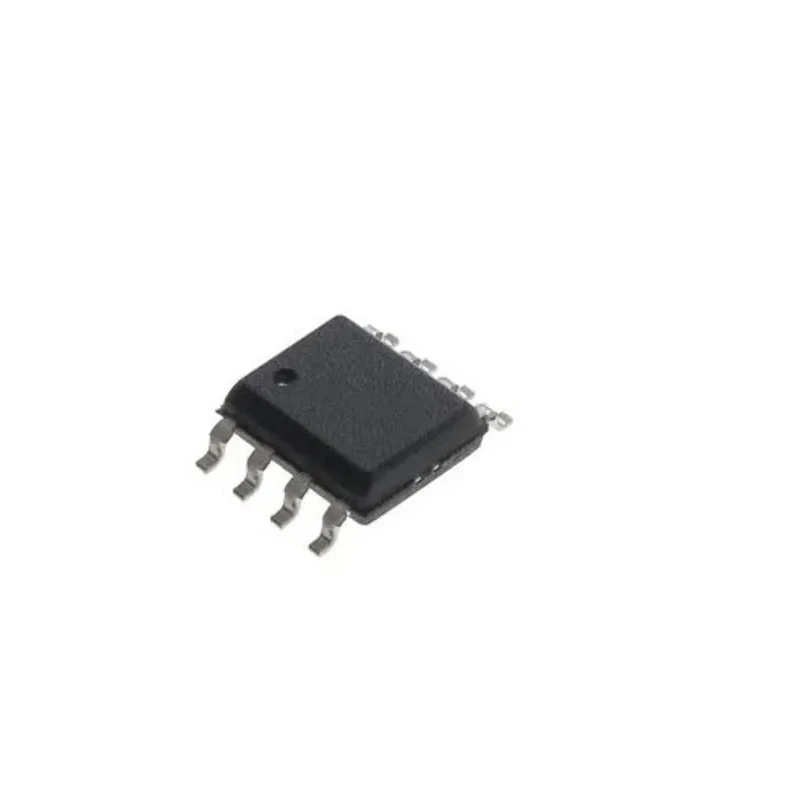

Microchip 1 MB Serial EEPROM 80 ns 20 MHz SPI Interface 8-Pin SOIC Package AT25M01-SSHM-B

Microchip AT25M01-SSHM-B is a high-performance 1 MB serial electrically erasable programmable read-only memory (EEPROM) engineered for diverse industrial and commercial applications requiring low-power, low-voltage, and fast memory solutions. It features a 131,072-word by 8-bit organization optimized for SPI interface communication supporting modes 0 and 3 up to 20 MHz clock frequency.

The device operates over a wide voltage range from 1.7 V (minimum) to 5.5 V (maximum) and provides fast random access times of 80 nanoseconds, enabling quick data retrieval. Data retention is guaranteed for 100 years with a robust endurance of more than one million erase/write cycles, making the product highly reliable for long-term use.

Microchip’s EEPROM includes flexible block write protection allowing selective protection of 1/4, half, or the entire memory area. Its low power consumption features include a maximum read current of 10 mA at 20 MHz, a write current of 7 mA at 5 V, and standby currents as low as 3 μA at 1.7 V, supporting energy-sensitive applications. The self-timed erase and write cycles complete within 5 milliseconds, enhancing operational efficiency.

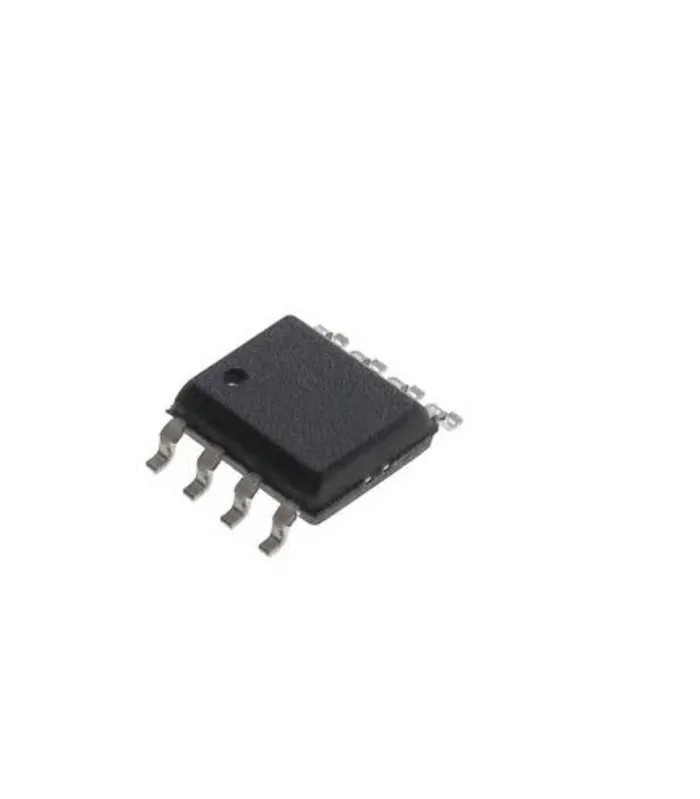

Packaged in an industry-standard 8-pin SOIC surface mount form factor with a height of 1.5 mm, this EEPROM module supports easy integration in compact PCB designs. It is RoHS compliant and suited for operation in harsh environments with temperatures ranging from -40°C to 85°C, although it is not designed for automotive usage.

1,048,576 bits organized as 131,072 words of 8 bits. Fast 80 ns access time and supports SPI modes 0 and 3 up to 20 MHz. Operates at supply voltage range of 1.7 V to 5.5 V. Endurance of more than one million erase/write cycles.

Data retention guaranteed for 100 years. Low power supply and standby current for efficient operation. Block write protection features for memory security. Surface mount 8-pin SOIC package with 1.5 mm height. Operating temperature range from -40°C to 85°C for industrial use.

RoHS compliant for environmental safety.

This Microchip EEPROM module is ideal for use in industrial control systems, embedded memory storage, consumer electronics, and commercial equipment requiring reliable non-volatile memory with fast access and long retention. Purchase this product to enhance your electronic designs with quality memory performance.
