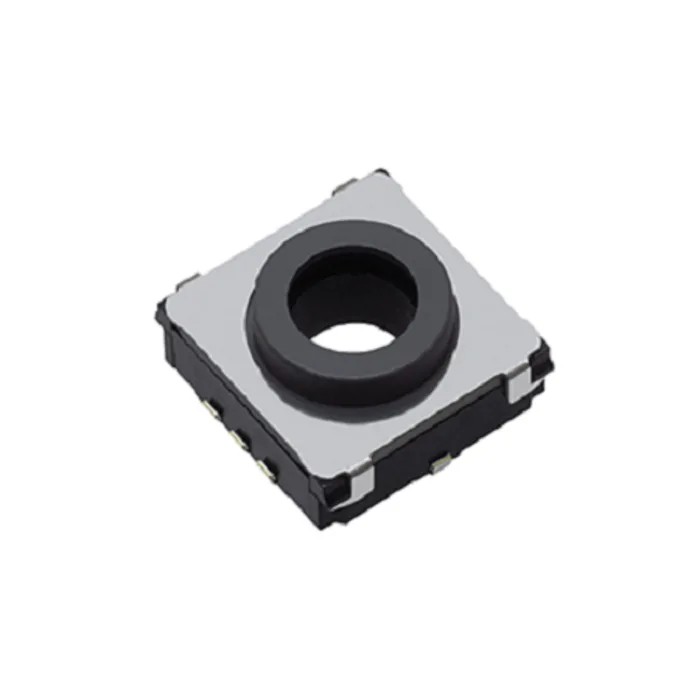

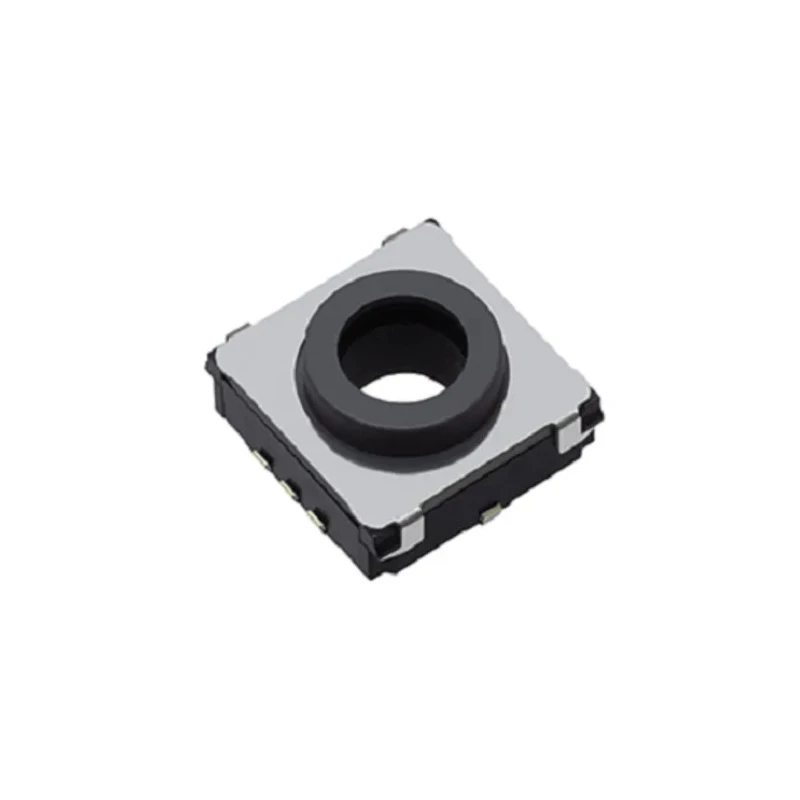

Panasonic Black Grey Tactile Switch Push Plate SPST 20mA 12V DC Surface Mount EVPADK04K
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 4.7mm |
| Model | EVPADK04K |
| Mount Type | Surface |
| Series | EVPAD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Switch Operation | Push-On |
| Actuator Colour | Black, Grey |
| Actuator Length | 7mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 4N |
Key Features
- Single pole single throw (SPST) contact configuration ensures simple on-off control.
- Current rating up to 20mA and DC voltage of 12 volts for low-power applications.
- Push-on switch operation with J Bend terminal type for secure connection.
- Operates reliably up to a maximum temperature of 85°C.
- Compact height of 4.7 mm and operating force of 4 newtons provides tactile feedback.
- Non-illuminated actuator style with a durable push plate design.
- Manufactured in Japan, ensuring high quality and consistency.
- Suitable for automotive electronic equipment, heater control panels, and car audio systems.
Product Description
Panasonic EVPADK04K tactile switch is a high-quality component designed for precise on/off control in electrical and electronic devices. Featuring a black and grey push plate actuator with a 7 mm length, this surface mount switch operates with a reliable SPST contact configuration. With a contact DC voltage rating of 12 volts and switch contact current of 20mA, it is ideal for low current applications.
The switch operation is push-on utilizing a J Bend terminal type, ensuring a secure and stable connection in circuit assemblies. It can operate continuously in temperatures up to 85°C, making it suitable for automotive and industrial environments. The compact height of 4.7 mm and operating force of 4 newtons provide comfortable tactile feedback for user interaction.
Designed with a snap action push-on mechanism, the switch supports automotive electronics such as car audio systems and heater control panels. It accommodates LED mounting with an open centre space suitable for 4.2 mm diameter chip LEDs, enhancing functionality when illumination is required (note: this model is not illuminated).
Single pole single throw (SPST) contact configuration for on/off switching. J Bend terminal type enhances mechanical stability in soldered connections. Surface mount installation supports automated assembly processes. Black and grey actuator colour with push plate style for easy operation.
High maximum operating temperature of 85°C for durable performance. Operating force of 4N gives reliable tactile feedback to users. Manufactured in Japan, underscoring premium build quality. Ideal for automotive electronic controls and various industrial applications.
This Panasonic tactile switch supports auto reflow soldering and is supplied as tape packaging, facilitating efficient manufacturing. It is typically used in low voltage DC circuits requiring precise tactile response switches.
Explore more electronic components and Tactile Switches within the Electronics & Electricals category at EnvMart for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration, allowing for simple on-off control.
The switch can operate continuously at temperatures up to 85°C, making it suitable for various applications, including automotive environments.
It has a switch contact current rating of up to 20mA, making it ideal for low power applications.
This model utilizes a J Bend terminal type, which enhances mechanical stability in soldered connections.
The operating force for this switch is 4 newtons, providing tactile feedback during operation.
The actuator length is 7 mm, and the overall height of the switch is 4.7 mm.
No, this model features a non-illuminated actuator style, designed for standard on-off switching without illumination.
The contact DC voltage rating for this switch is 12 volts, suitable for low voltage DC circuits.
It is suitable for automotive electronic equipment, heater control panels, and car audio systems.
This tactile switch is manufactured in Japan, ensuring high quality and consistency.
It supports surface mount installation, which is compatible with automated assembly processes.
This model is part of the EVPAD series, which includes various tactile switches designed for similar applications.
