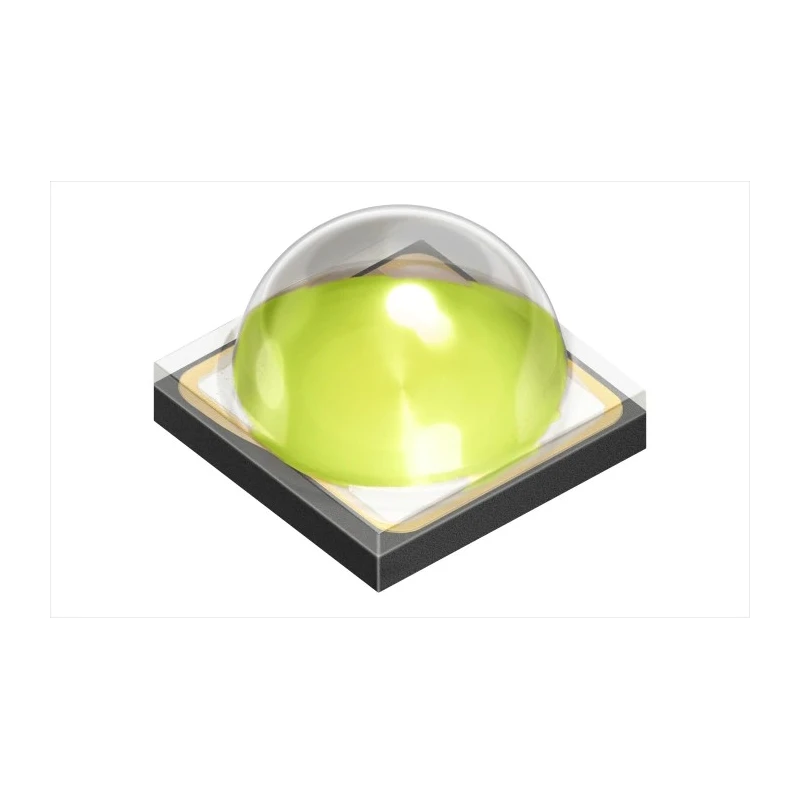

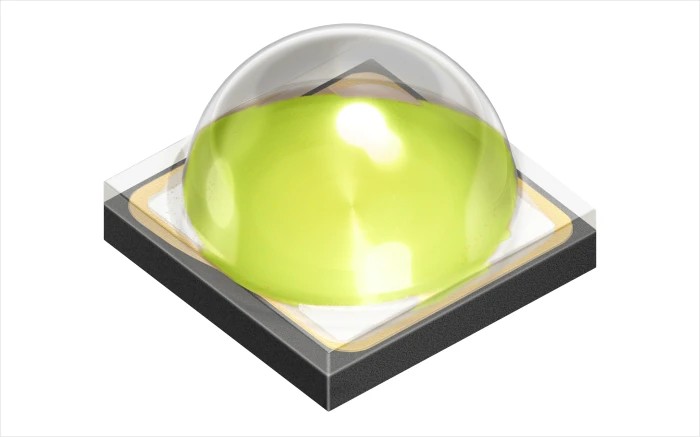

ams OSRAM 2.9 V White LED SMD Ceramic Surface GW CSSRM3.HW-VNAQ-H1H2-1-700-R33

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 2.9 V White LED SMD Ceramic Surface GW CSSRM3.HW-VNAQ-H1H2-1-700-R33

Name: ams OSRAM 2.9 V White LED SMD Ceramic Surface GW CSSRM3.HW-VNAQ-H1H2-1-700-R33
Brand: ams OSRAM
SKU: 422500
Price: 1.06 USD
Availability: InStock



Category LED Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Package	SMD ceramic package with silicone lens
Model	GW CSSRM3.HW-VNAQ-H1H2-1-700-R33
Packaging	Tape & Reel
Mount Type	Surface
Series	GW CSSRM3.HW
Number Of Leds	1
Maximum forward current	1800mA
Viewing angle	120 °
Package Type	SMD Ceramic
Standards/Approvals	IEC 62471:2006
LED Colour	White
Forward Voltage	2.9V
Lens Shape	Square
Radiant Flux	typ. 1140 mW
LED Luminous Flux	317 to 430 lm
Typ. Radiation	120° (Lambertian emitter)
ESD	8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Standards/ApprovalsIEC 62471	2006
IEC 62471	2006
Photon flux efficacy	2.40 μmol/j

Key Features

It features a maximum forward current of 1800 mA for high power performance.
The LED emits white light with luminous flux between 317 and 430 lumens.
The package type is SMD ceramic with a square silicone lens for efficient heat dissipation.
It offers a wide viewing angle of 120 degrees for broad illumination.
The component is suitable for surface mount applications with tape and reel packaging.
Designed for horticulture lighting, it maximizes system photon efficacy by enhanced red photon output.
The LED has an electrostatic discharge robustness rating of 8 kV (ANSI/ESDA/JEDEC JS-001, HBM, Class 3B).
This high-power LED ensures reliability, long lifetime, and low thermal resistance in a compact design.

Product Description

ams OSRAM GW CSSRM3.HW-VNAQ-H1H2-1-700-R33 is a high-power 2.9 V White LED designed in an SMD ceramic surface mount package, ideal for horticulture and general lighting applications in industrial, laboratory, agricultural, and commercial sectors.

The LED utilizes a specialized phosphor solution that increases non-converted red photons, thus enhancing photon efficacy at the fixture level. It delivers luminous flux between 317 to 430 lumens with a radiant flux typically at 1140 mW and a photon flux efficacy of 2.40 μmol/J, making it highly efficient for advanced lighting systems.

Its wide 120° Lambertian emission pattern ensures broad illumination coverage. The square lens shape and silicone coating provide excellent light output and durability, while the robust SMD ceramic package ensures efficient thermal management and long-term reliability.

With a maximum forward current rating of 1800 mA, this LED sustains high brightness and performance. It is compliant with IEC 62471:2006 photobiological safety standards and features 8 kV ESD protection (ANSI/ESDA/JEDEC JS-001, HBM, Class 3B), ensuring safe and reliable operation in demanding environments.

This SMD ceramic LED is supplied in tape and reel packaging, facilitating automated assembly processes in manufacturing. Maximum forward current: 1800 mA for high power operation. Luminous flux range: 317 to 430 lm for bright white light emission.

Wide 120° viewing angle for extensive light distribution. Durable square silicone lens in SMD ceramic package. Compliant with IEC 62471:2006 safety standards. ESD protection up to 8 kV class 3B (HBM). Enhanced photon efficacy for horticulture lighting applications.

Reliable performance with low thermal resistance. Packaged for surface mount assemblies with tape & reel delivery.

This LED is well suited for applications in horticultural lighting systems, commercial fixtures, laboratory lighting solutions, and other industrial uses requiring efficient, reliable white light LEDs.
