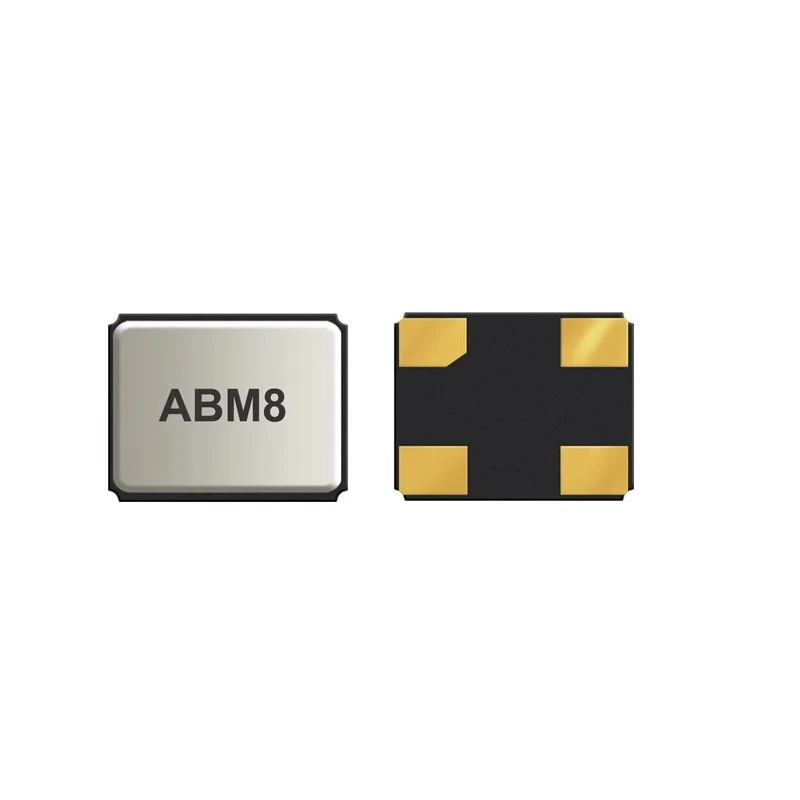

Abracon 32 MHz Crystal Unit Surface Mount 4-Pin 3.2mm x 2.5mm x 0.8mm ±10 ppm ABM8-32.000MHz-9-B1U-T

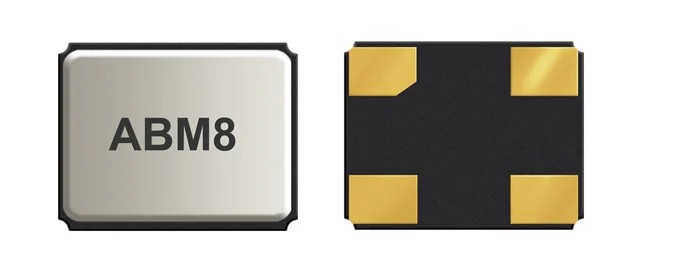

Abracon ABM8-32.000MHz-9-B1U-T is a precision 32 MHz crystal unit designed for surface mount applications. This 4-pin crystal unit features compact dimensions of 3.2 mm length, 2.5 mm width, and 0.8 mm height, making it suitable for high-density electronic circuits where space is critical.

The crystal provides a frequency tolerance and stability of ±10 ppm, ensuring accurate signal generation essential for communication, testing, and wireless applications. With a load capacitance of 9 pF and a series resistance of 40 Ω, it delivers consistent performance for fundamental and third overtone modes.

The package is seam sealed to guarantee high reliability and protection from environmental contaminants. It operates effectively between -20°C and 70°C, suitable for industrial, commercial, and communications equipment.

This crystal unit is RoHS compliant, emphasizing adherence to environmental regulations. It is supplied in tape & reel packaging, facilitating efficient handling and placement in automated PCB assembly lines.

Standard 32 MHz frequency suitable for various electronics applications. Surface mount package with 4 pins ensures compatibility with modern PCB designs. Compact dimensions: length 3.2 mm, width 2.5 mm, and height 0.8 mm for low-profile assemblies.

Load capacitance of 9 pF optimizes oscillator performance. Seam sealed package enhances reliability and protects against environmental factors. Frequency stability maintained within ±10 ppm for precise operation. Operating temperature range from -20°C to 70°C supports industrial environments.

Series resistance of 40 Ω ensures efficient signal quality. Compliance with RoHS standards assures environmental safety. Available in tape & reel packaging to facilitate automated assembly processes.

This crystal unit is widely used in high-density applications including modems, communication devices, test equipment, PMCIA cards, and wireless systems. Its low profile and stable frequency output make it ideal for embedded and compact electronic designs.
