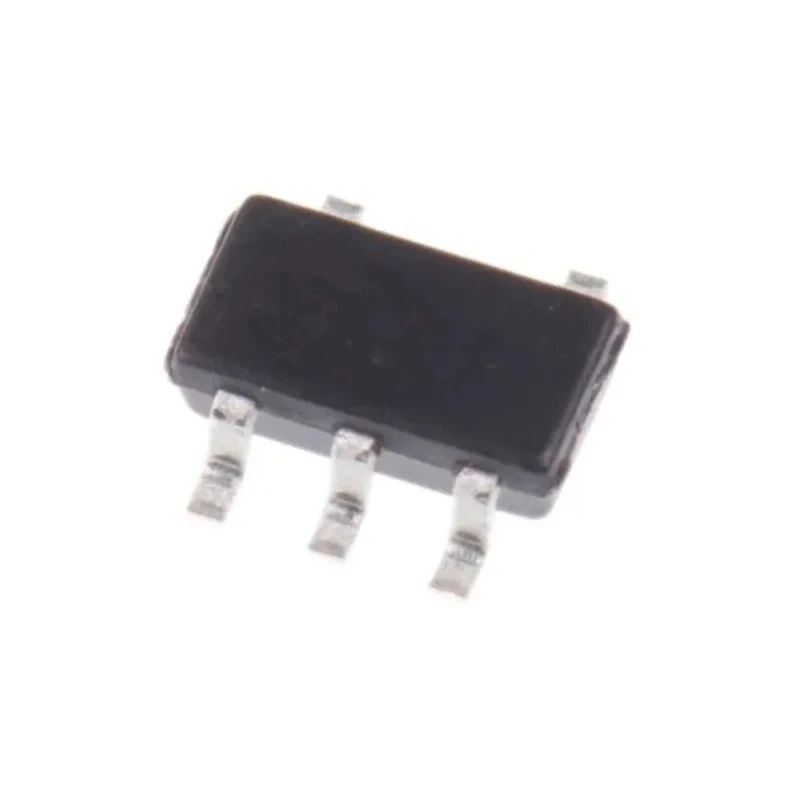

onsemi High Precision Operational Amplifier 350 kHz Gain Bandwidth, 5-Pin TSOP Package, 1.8 V to 5.5 V Supply NCS333ASN2T1G
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3.15mm |
| Model | NCS333ASN2T1G |
| Width | 1.65mm |
| Mount Type | Surface |
| Series | NCS333 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 200 pA |
| Slew Rate | 0.15V/μs |
| Input Offset Current | 400 pA |
| NCS333ASN2T1G onsemi, Operational Amplifier, 350 kHz, 5-Pin 5.5V TSOPBrand | onsemi |
Key Features
- This amplifier provides high precision with very low input offset voltage.
- It features a wide supply range from 1.8 V to 5.5 V for versatile use.
- Low quiescent current ensures energy efficiency for battery-powered devices.
- Rail-to-rail output swing enables better output accuracy within 50 mV of power rails.
- Equipped with a slew rate of 0.15 V/μs for smooth signal amplification.
- Includes protection standards with RoHS compliance and AEC-Q100 automotive qualification.
- Compact TSOP surface mount package measuring 3.15 mm × 1.65 mm × 1 mm ensures space-saving design.
- Supports operating temperature range from -40°C to 125°C for industrial reliability.
Product Description
onsemi NCS333ASN2T1G is a high precision operational amplifier featuring a 350 kHz gain bandwidth and housed in a compact 5-pin TSOP surface mount package. It operates over a wide voltage supply range from 1.8 V to 5.5 V, making it suitable for various universal applications that require precision and low power consumption.
This operational amplifier provides very low input offset voltage of 10 μV and demonstrates near-zero drift over time and temperature, ensuring stable and accurate signal processing. The device incorporates high impedance inputs with a common-mode range extending 100 mV beyond supply rails and rail-to-rail output swing within 50 mV of rails, which greatly enhances output accuracy.
Featuring a low quiescent current design, it is ideal for battery-powered devices requiring extended operation times. The slew rate of 0.15 V/μs enables smooth and responsive signal amplification. NCS333ASN2T1G complies with RoHS standards and is qualified under AEC-Q100 automotive standards, attesting to its robustness and quality for automotive and industrial applications.
The amplifier’s small footprint with dimensions of 3.15 mm length, 1.65 mm width, and 1 mm height facilitates high-density PCB integration. It is designed to operate reliably in temperature ranges from -40°C up to 125°C, suitable for harsh industrial and commercial environments. With an output current capability of 25 mA, it supports a range of high-performance amplification demands.
High precision low offset voltage operational amplifier. Wide supply voltage range: 1.8 V to 5.5 V. Low power consumption for battery-powered use cases. Rail-to-rail output swing improves output accuracy. Compact 5-pin TSOP surface mount package.
Operating temperature range: -40°C to 125°C. AEC-Q100 automotive standard qualified. RoHS compliant. 350 kHz gain bandwidth product. 25 mA output current capability.
These features make the onsemi NCS333ASN2T1G operational amplifier a reliable choice for industrial, automotive, consumer electronics, manufacturing, and laboratory instrumentation applications requiring precise analog signal amplification.
Explore more devices in the onsemi Operational Amplifier range and other semiconductor components on EnvMart.
