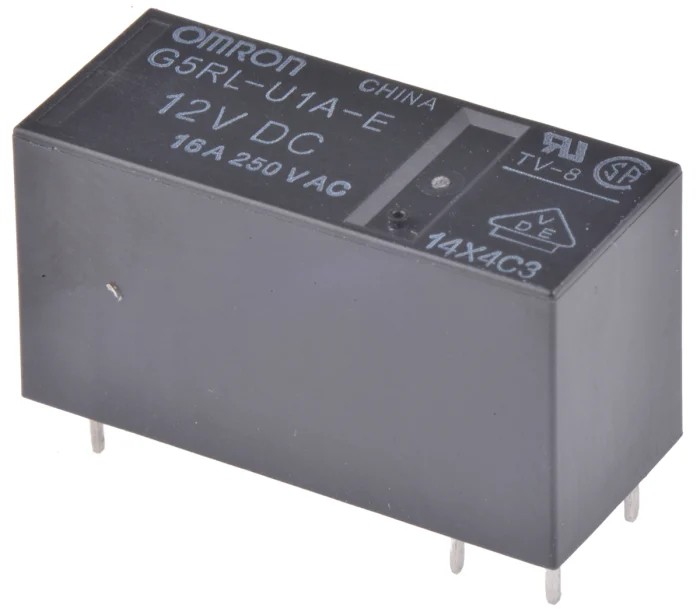

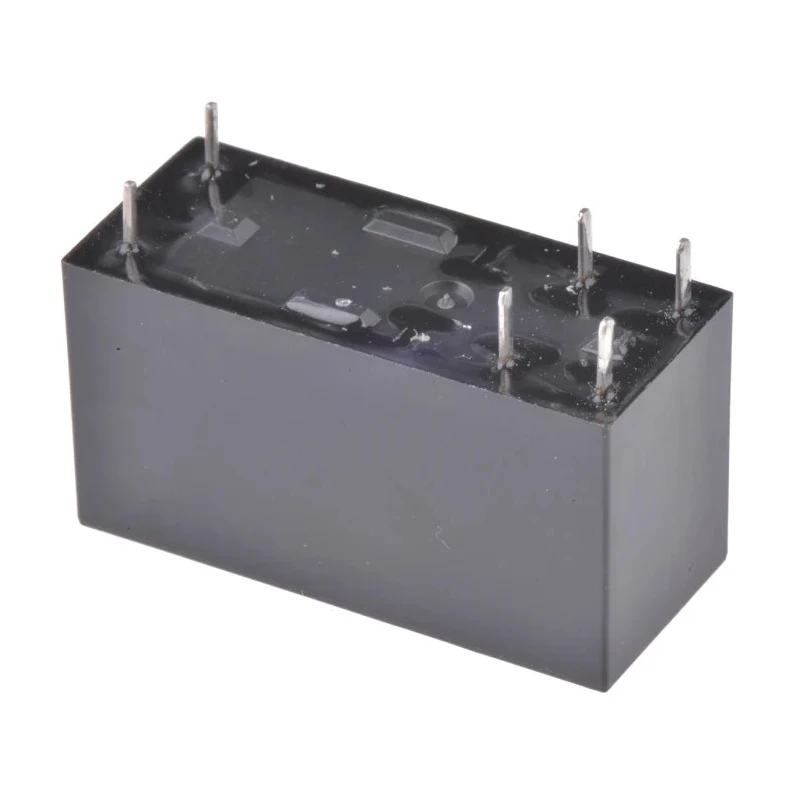

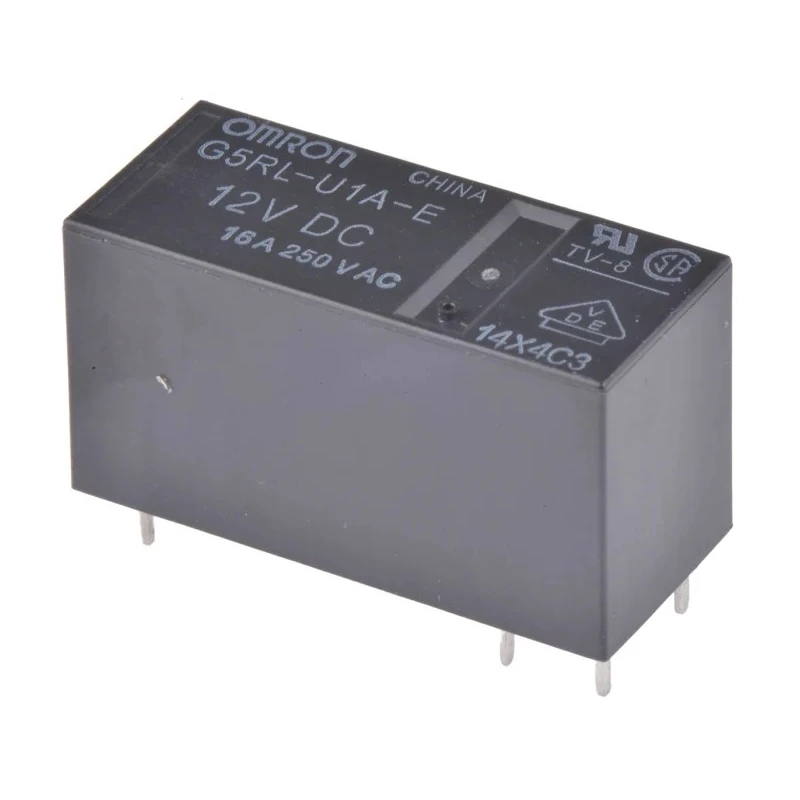

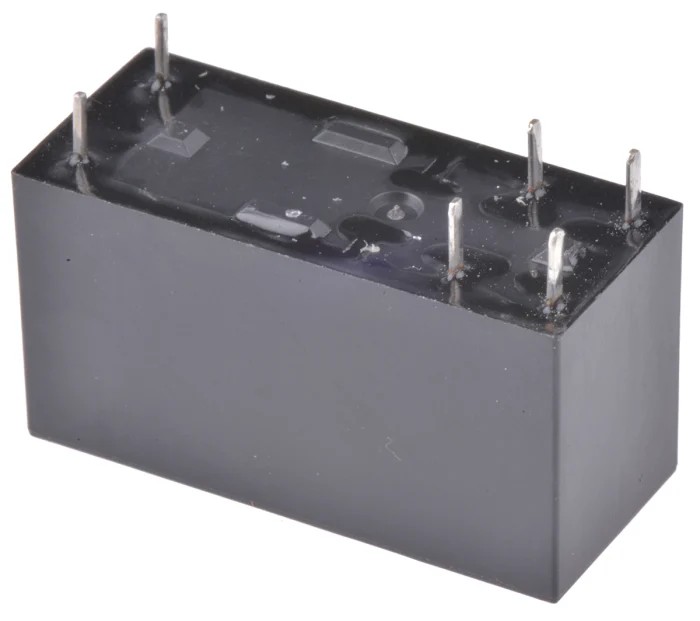

Omron Power Relay PCB Mount SPST 12V DC Coil 16A Switching Current G5RL-U1A-E DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-U1A-E DC12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | G2RL |
| Contact Configuration | SPST |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Low Profile | 15.7mm max height |
| Standards/Approvals | CSA, UL |
| Coil Voltage | 12V dc |
Key Features
- Designed for reliable switching operations with 16A current capacity.
- Features a compact low profile with a maximum height of 15.7 mm for space-saving installations.
- Equipped with PCB pin terminals for easy and secure mounting on printed circuit boards.
- Complies with UL, CSA, and VDE safety standards for industrial applications.
- Offers 8 mm creepage and clearance between coil and contacts, ensuring effective insulation and safety.
- Suitable for automation, electrical control, and power management systems.
- Series G2RL known for durability, including latching and flux proof functions.
Product Description
Omron G5RL-U1A-E DC12 power relay is a PCB mount type designed for robust and efficient switching in various industrial and electrical applications. It utilizes a 12V DC coil to activate a single pole single throw (SPST) contact configuration. With a switching current rating of 16A, this relay is well suited for controlling medium to high power devices.
Designed as part of the G2RL series, the relay features flux proof construction and latching capabilities, enhancing performance reliability under harsh environments. Its compact and low profile design, having a maximum height of 15.7 mm, enables efficient use of PCB space and easy integration into complex circuits. The relay also offers 8 mm creepage and clearance between coil and contacts to provide effective electrical insulation and safety compliance.
With approval certifications from UL, CSA, and VDE, this product meets international safety and quality standards, making it ideal for use in automation systems, industrial controls, HVAC equipment, and power management circuits. The PCB pin terminals facilitate stable installation and electrical connections on circuit boards.
Reliable 16A switching current capacity. Compact, low profile at 15.7 mm height. PCB mount with pin terminals for secure placement. Complies with UL, CSA, and VDE standards. 8 mm creepage and clearance for safety and insulation.
Flux proof and latching features in G2RL series. Suitable for industrial and electrical control applications.
This Omron power relay is a dependable choice for engineers and technicians requiring highly reliable switching solutions on printed circuit boards. Explore the complete range of Power Relays and electrical components at EnvMart to find suitable products matching your technical and compliance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 16A, making it suitable for controlling medium to high power devices.
The relay has a height of 15.7 mm, a length of 29 mm, and a width of 12.7 mm, allowing for efficient use of PCB space.
It is designed for PCB mounting, featuring PCB pin terminals for secure placement on printed circuit boards.
The coil voltage for the G5RL-U1A-E DC12 relay is 12V DC, which is required to activate the relay.
This relay features a single pole single throw (SPST) contact configuration, suitable for various switching applications.
Yes, it complies with safety standards from UL and CSA, ensuring it meets international safety and quality requirements.
The maximum height of this relay is 15.7 mm, contributing to its low profile design.
This relay is part of the G2RL series, known for its durability and reliable performance under various conditions.
There is an 8 mm creepage and clearance between the coil and contacts, providing effective insulation and safety.
It is suitable for use in automation systems, industrial controls, HVAC equipment, and power management circuits.
This model includes flux proof construction and latching capabilities, enhancing its performance reliability in harsh environments.
It uses PCB pin terminals, which facilitate stable installation and electrical connections on circuit boards.
