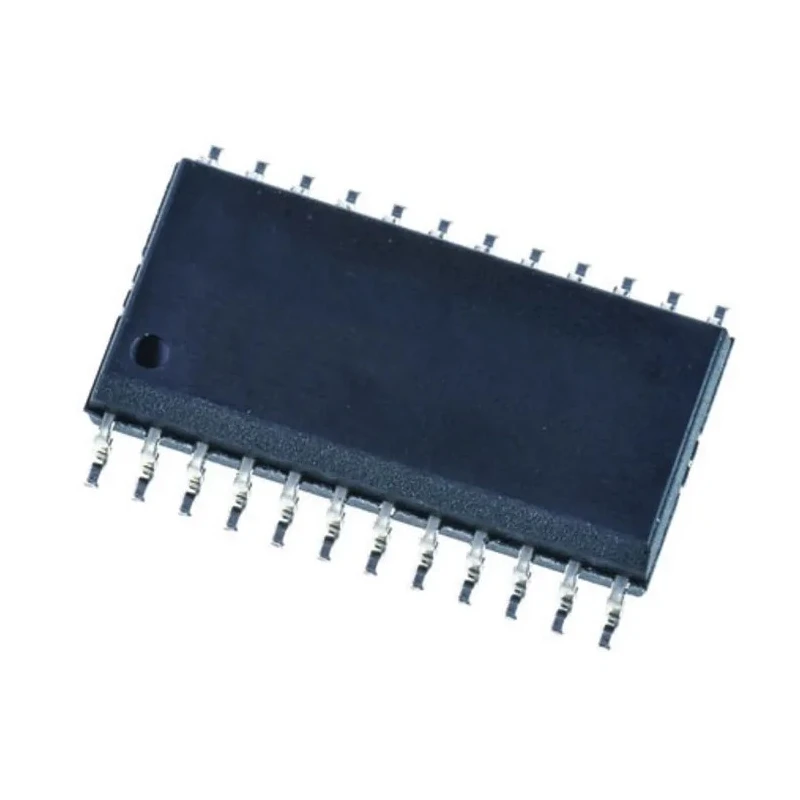

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 24-Pin SOIC SN64BCT25244DW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.6mm |
| Length | 15.6mm |
| Model | SN64BCT25244DW |
| Width | 7.6mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output TTL |
| Output type | 3 State |
| Series | SN64BCT25244 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | BCT |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -80mA |
| Maximum Propagation Delay Time @ CL | 6ns |
| Supply Current | 100μA |
| Maximum Low Level Output Current | 188mA |
Key Features
- This buffer & line driver uses BCT logic family technology for enhanced performance.
- Operates from a supply voltage range of 4.5V to 5.5V suitable for TTL and LVTTL inputs.
- Comes in a compact 24-Pin SOIC surface-mount package measuring 15.6mm length by 7.6mm width and 2.6mm height.
- Features a maximum propagation delay time of 6ns at the specified load capacitance for fast signal processing.
- Capable of handling maximum output currents of -80mA (high level) and 188mA (low level) with a low supply current of 100μA.
- Designed to operate reliably in temperature ranges from -40°C to 85°C for industrial applications.
- Non-inverting output polarity ensures signal integrity for interfacing circuits.
- Compatible with 74BCT family and ideal for industrial, electronic, and control system applications.
Product Description
Texas Instruments SN64BCT25244DW is an 8-channel buffer and line driver IC designed with BCT logic family technology delivering non-inverting logic function and 3-state outputs in a 24-pin SOIC surface-mount package.
Operating in the voltage range from 4.5V to 5.5V, it supports both LVTTL and TTL input compatibility with output TTL levels, making it suitable for a wide range of electronic interface applications.
This component features a maximum propagation delay of 6 nanoseconds at the specified load capacitance to allow fast and efficient signal buffering and line driving. The device is specified for operation across a temperature range from -40°C to 85°C, ensuring durability and reliability in industrial and commercial electronic environments.
Its physical dimensions are compact at 15.6mm length, 7.6mm width, and 2.6mm height, optimizing board space usage for surface mounting. This buffer & line driver uses BCT logic family technology for enhanced performance.
Operates from a supply voltage range of 4.5V to 5.5V suitable for TTL and LVTTL inputs. Comes in a compact 24-Pin SOIC surface-mount package measuring 15.6mm length by 7.6mm width and 2.6mm height. Features a maximum propagation delay time of 6ns at the specified load capacitance for fast signal processing.
Capable of handling maximum output currents of -80mA (high level) and 188mA (low level) with a low supply current of 100μA. Designed to operate reliably in temperature ranges from -40°C to 85°C for industrial applications.
Non-inverting output polarity ensures signal integrity for interfacing circuits. Compatible with 74BCT family and ideal for industrial, electronic, and control system applications.
This buffer and line driver is widely used in industrial electronics, communications equipment, instrumentation, and control systems where high-speed and reliable signal buffering are essential. It allows effective signal line driving with minimal power consumption and compact package size, supporting efficient and scalable electronic design.
Explore additional semiconductor and interface IC products from Texas Instruments and related brands on EnvMart, your trusted source for high-quality electronic components.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates from a supply voltage range of 4.5V to 5.5V, making it suitable for TTL and LVTTL inputs.
This model has a length of 15.6mm, a width of 7.6mm, and a height of 2.6mm, optimizing board space for surface mounting.
The maximum propagation delay time is 6 nanoseconds at the specified load capacitance, allowing for fast signal processing.
It can handle a maximum high-level output current of -80mA and a maximum low-level output current of 188mA.
It is designed to operate reliably in temperature ranges from -40°C to 85°C, suitable for industrial applications.
This unit features a 3-state output type, ensuring flexibility in interfacing with other circuits.
Yes, it is compatible with the 74BCT family, enhancing its versatility in various applications.
The supply current for this model is 100μA, contributing to its efficient power consumption.
It comes in a compact 24-Pin SOIC surface-mount package, which is ideal for space-constrained applications.
The input type is single-ended, allowing for straightforward interfacing with other components.
This model performs a buffer and line driver function, providing non-inverting logic output.
The country of origin for this buffer and line driver is India.
