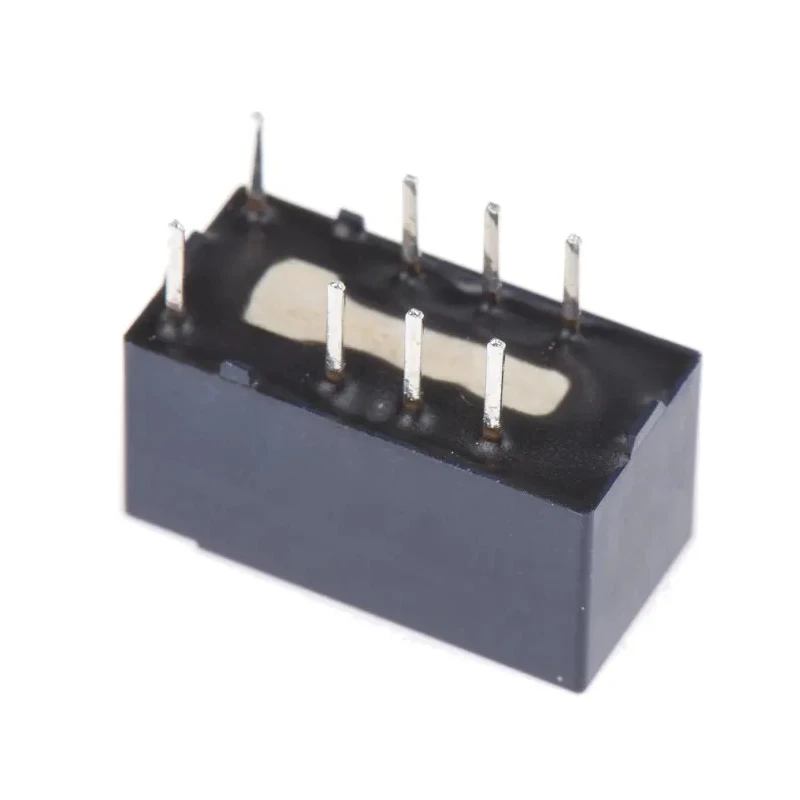

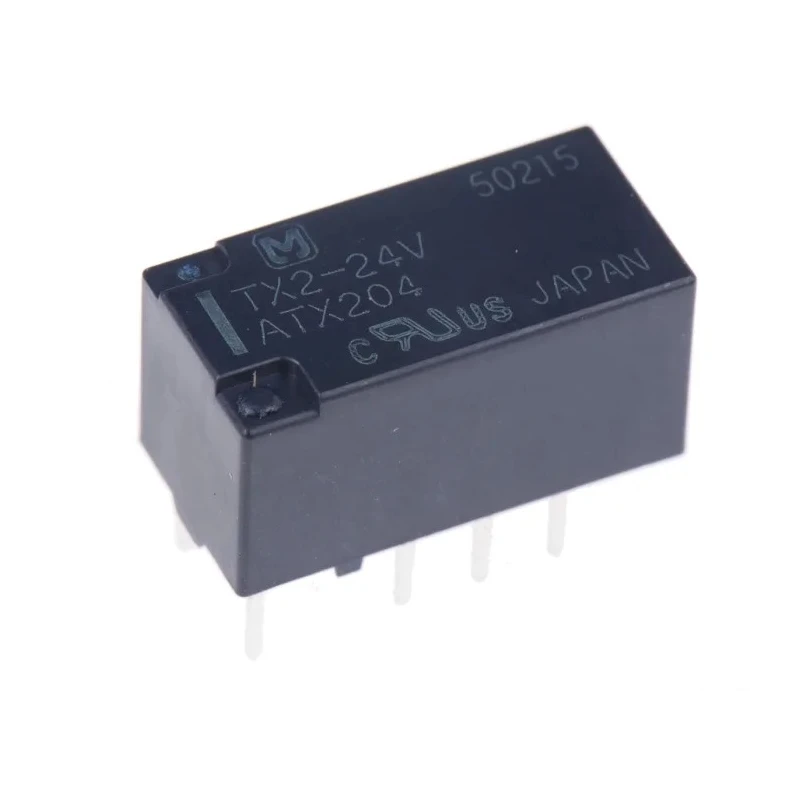

Panasonic PCB Signal Relay, 24V dc Coil, 2A Switching Current, DPDT Contact Configuration TX2-24V

Panasonic TX2-24V PCB Signal Relay features a 24V dc coil and DPDT contact configuration, offering a 2A switching current capacity suitable for precision electronic PCB applications. This relay model is part of the G6S series known for high contact capacity and high breakdown voltage resilience.

The relay is designed with sealed construction enabling automatic washing, and it offers high resistance to vibration and shock, ensuring durability and reliability in industrial and commercial environments.

Its compact size with dimensions 15mm length, 8.2mm height, and 7.4mm width aids in space-saving PCB designs. The gold plated contacts ensure low contact resistance and long operational life.

Operating temperature flexibility from -40°C to 85°C allows this relay to perform effectively in diverse climate conditions. The coil resistance is measured at 4100 ohms with a coil power consumption of only 140mW, contributing to efficient power usage.

Suitable industrial and commercial use cases include telecommunication applications, measurement instruments, security systems, and medical equipment requiring reliable switching performance on PCB layouts.

This relay supports a switching AC voltage and DC voltage up to 220V. Gold plated contacts provide excellent conductivity and endurance. Sealed and rugged design withstands mechanical shocks and vibrations. DPDT contact configuration allows multiple switching operations.

PCB mounted with PCB terminal type ensures stable electrical connections.

Country of origin is Japan. The product is RoHS compliant, meeting environmental safety standards. Panasonic's TX2 series relays represent robust and efficient solutions optimized for quality and durability in signal relay applications.
