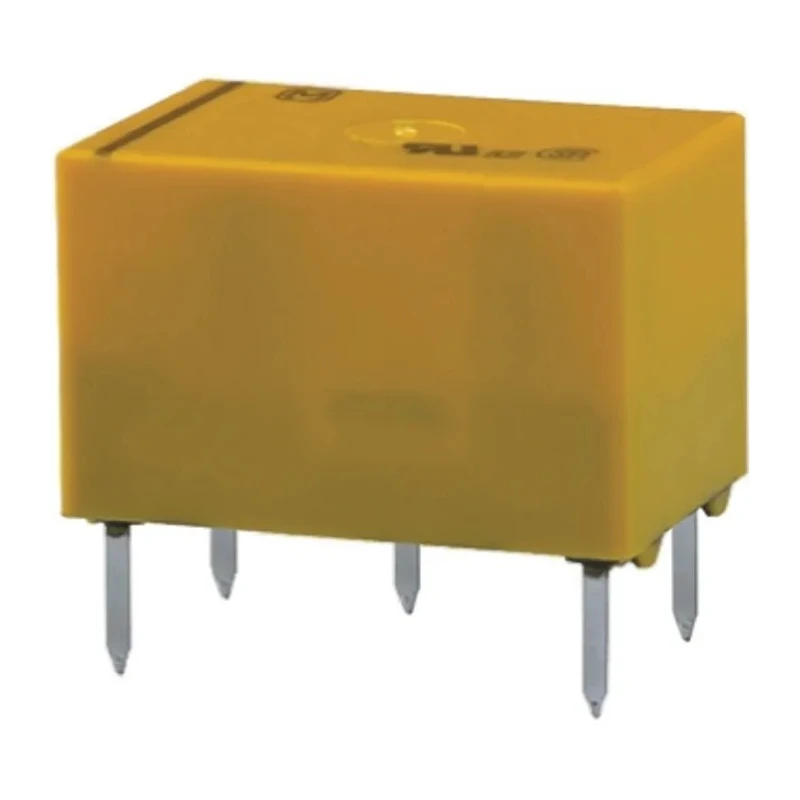

Panasonic PCB Signal Relay 24V DC Coil 3A SPDT DS1E-SL2-DC24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.9mm |
| Length | 15mm |
| Model | DS1E-SL2-DC24V |
| SENSITIVITY | 200mW nominal operating power |
| Width | 9.9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Through Hole |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 3.2kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 180mW |
| Switching Power | 60W |
Key Features
- Compact size with 9.9 x 9.9 x 15 mm dimensions for easy PCB mounting.
- Gold-plated contacts provide high reliability and low contact resistance.
- Coil power consumption is low at 180mW for energy efficiency.
- Suitable for harsh environments with resistance to shock and vibration.
- Operating temperature range from -40°C to 70°C supports diverse industrial applications.
- Switching AC voltage up to 250V AC and DC voltage up to 220V DC.
- Through hole terminal type enables secure PCB installation.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Panasonic DS1E-SL2-DC24V PCB Signal Relay is a miniature, high-sensitive Signal Relay with a coil voltage of 24V DC and a contact rating of 3A SPDT. It offers compact dimensions of 9.9mm (height) x 9.9mm (width) x 15mm (length), making it suitable for convenient PCB mounting. The relay features gold-plated twin contacts which ensure high reliability and low contact resistance of 50mΩ.
Designed for use in challenging industrial environments, this relay incorporates polarized magnetic circuits that provide resistance to shock and vibration. It supports automatic soldering and washing processes commonly found in manufacturing lines.
The coil resistance is 3.2kΩ, with nominal coil power consumption of 180mW and sensitivity of 200mW, optimizing energy efficiency. It is capable of switching up to 250V AC and 220V DC with a switching power of 60W.
The operating temperature range spans from -40°C to 70°C, ensuring stable operation in diverse temperature conditions. The through hole terminal type facilitates secure and reliable PCB assembly.
This relay complies with RoHS environmental standards, underscoring its sustainability and safety credentials. Its robust performance and reliability make it ideal for applications involving automation, signal conditioning, control circuits, and other electronics requiring compact and dependable switching components.
Manufactured in Japan, the DS series ensures quality and durability in industrial electronics. The product is designed to meet high standards required for industrial, laboratory, and automation use.
Compact PCB mount with miniature size and easy installation. Gold-plated contacts for durability and reliable switching. High sensitivity and low coil power consumption. Polarized magnetic circuit offers shock and vibration resistance.
Wide temperature operating range for varied environments. Supports automated manufacturing processes. Compliant with RoHS standards for environmental safety. Ideal for signal conditioning, automation, and control systems.
Explore other high-quality relays in the EnvMart Electrical category for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has compact dimensions of 9.9mm in height, 9.9mm in width, and 15mm in length, making it suitable for easy PCB mounting.
The coil voltage for the DS1E-SL2-DC24V is 24V DC, which is essential for its operation in various applications.
It can switch AC voltage up to 250V AC and DC voltage up to 220V DC, providing versatility for different circuit requirements.
The relay features a Single Pole Double Throw (SPDT) contact configuration, allowing for flexible circuit design.
The maximum switching current for this relay is 3A, suitable for various control applications.
It utilizes a through hole terminal type, which ensures secure and reliable PCB assembly during installation.
The contact resistance is rated at 50mΩ, which contributes to its reliability and efficiency in operation.
The operating temperature range spans from -40°C to 70°C, making it suitable for diverse industrial environments.
The nominal coil power consumption is 180mW, which optimizes energy efficiency during operation.
The relay features gold-plated contacts, which enhance reliability and reduce contact resistance.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This relay is manufactured in Japan, ensuring adherence to high-quality standards in industrial electronics.
